Epson CO-W01 3LCD WXGA Projector - White | V11HA86040

• 3LCD technology - full RGB colour on every frame, no rainbow effect
• 3,000 lumens colour and white brightness - clear image in most lighting
• WXGA resolution (1280 x 800) - widescreen 16:10 format
• Projects up to 378 inches - from just 0.9 m throw distance
• Lamp life up to 12,000 hours in Eco mode
• Instant Off - no cool-down, pack away immediately after use
• Built-in 5W speaker - no separate audio device needed
• Auto vertical keystone correction ±30° - quick, accurate setup
• HDMI 1.4 and USB-A connectivity included
• Compact at 2.4 kg - easy to move between rooms or carry out
• 2-year warranty on the main unit
• Warranty: 2 Years
• Dimensions: 87 x 295 x 211 mm

Epson CO-W01 3LCD WXGA Projector - 3,000 Lumens, 12,000-Hour Lamp Life

Bright, Widescreen Pictures from a Compact Unit:

The Epson CO-W01 uses 3LCD technology to deliver 3,000 lumens of both colour and white brightness, producing a clear, vivid image across a wide range of lighting conditions. At WXGA resolution (1280 x 800), it supports a 16:10 aspect ratio and can project a widescreen image anywhere from 33 to 378 inches diagonal, with a practical throw distance of 0.9 m to 10.4 m.

Long Lamp Life and Eco Operation:

The UHE lamp runs for up to 6,000 hours in Normal mode and up to 12,000 hours in Eco mode, which equates to roughly 18 years based on watching one film per day. Eco mode also reduces noise output to 29 dB(A) and cuts power consumption to 214 W, compared to 270 W at peak. Epson's Instant Off technology means there is no cool-down period after use, so the unit can be packed away immediately.

Straightforward Connectivity and Setup:

The CO-W01 connects via an HDMI 1.4 port and includes a USB-A port alongside a USB Type-B service port. Automatic vertical keystone correction (±30°) and manual horizontal keystone correction (±30°) reduce setup time, and the SizeWise chip automatically resizes incoming computer signals to fit the projected image. A built-in 5W monaural speaker removes the need for a separate audio device in most everyday situations.

Portable Enough for Regular Use:

At 2.4 kg and measuring 295 x 211 x 87 mm (W x D x H), the CO-W01 is compact enough to move between rooms or carry in a backpack. Six colour modes - Dynamic, Cinema, Presentation, sRGB, Blackboard, and Vivid - allow the image to be adjusted to suit the environment, whether that is a darkened home cinema setup or a brightly lit meeting room.

Shop the Entertainment range from Heavins.ie, with delivery available across Ireland.

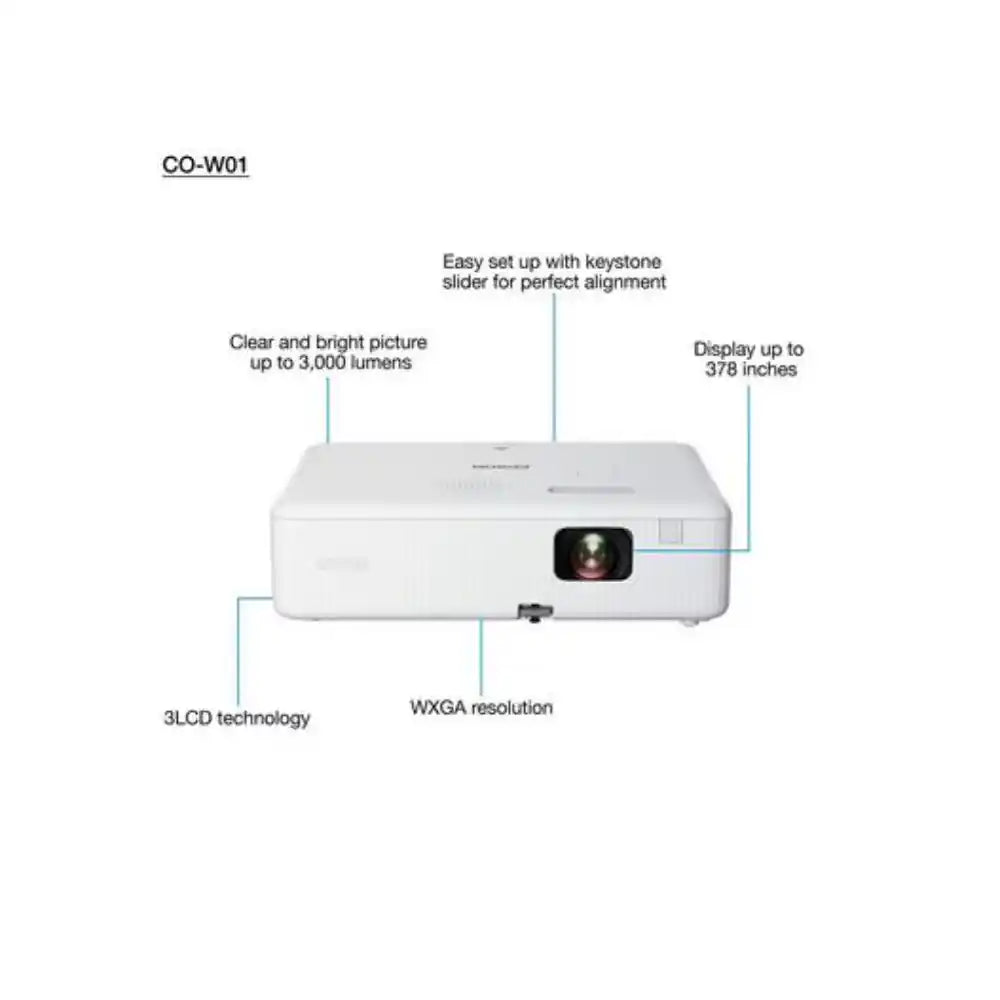

Key Features

3LCD Technology - displays 100% of the RGB colour signal on every frame, avoiding the colour brightness drop associated with single-chip DLP designs.
3,000 Lumens Colour and White Brightness - consistent image quality in both dim and ambient light conditions.
WXGA Resolution (1280 x 800) - widescreen 16:10 format suited to presentations and standard video content.
Up to 12,000-Hour Lamp Life (Eco Mode) - long service intervals with the UHE 188 W lamp.
Instant Off - no cool-down period required; the projector can be moved immediately after switching off.
Automatic Vertical Keystone Correction (±30°) - reduces manual adjustment time when positioning the projector.
Built-in 5W Speaker - monaural audio output suitable for small to medium rooms.
SizeWise - automatically resizes incoming computer display signals to fit the projected image.
Six Colour Modes - Dynamic, Cinema, Presentation, sRGB, Blackboard, and Vivid.
Optional Wireless (ELPAP11 Adapter) - supports 2.4 GHz and 5 GHz wireless projection via the Epson iProjection app when the optional LAN adapter is fitted.
Security Features - Kensington lock slot, padlock hole, and security cable hole included.

Specifications

• Display Technology: 3LCD (3-chip)
• LCD Panel: 0.59 inch with MLA (D10)
• Resolution: WXGA, 1280 x 800
• Aspect Ratio: 16:10
• Colour Brightness: 3,000 lumens (IDMS Rated)
• White Brightness: 3,000 lumens (ISO Rated)
• Eco Mode Brightness: 2,000 lumens
• Lamp Type: UHE, 188 W
• Lamp Life (Normal Mode): 6,000 hours
• Lamp Life (Eco Mode): 12,000 hours
• Throw Ratio: 1.27 - 1.71:1
• Digital Zoom: 1 - 1.35x
• Screen Size Range: 33 - 378 inches
• Projection Distance: 0.9 m - 10.4 m
• Focus: Manual
• Keystone Correction: Auto vertical ±30°, Manual horizontal ±30°
• Offset: 7:1
• Lens F Number: 1.44
• Video Processing: 8-bit
• Colour Reproduction: 16.77 million colours
• 2D Vertical Refresh Rate: 100 Hz - 120 Hz
• Built-in Speaker: 5 W monaural

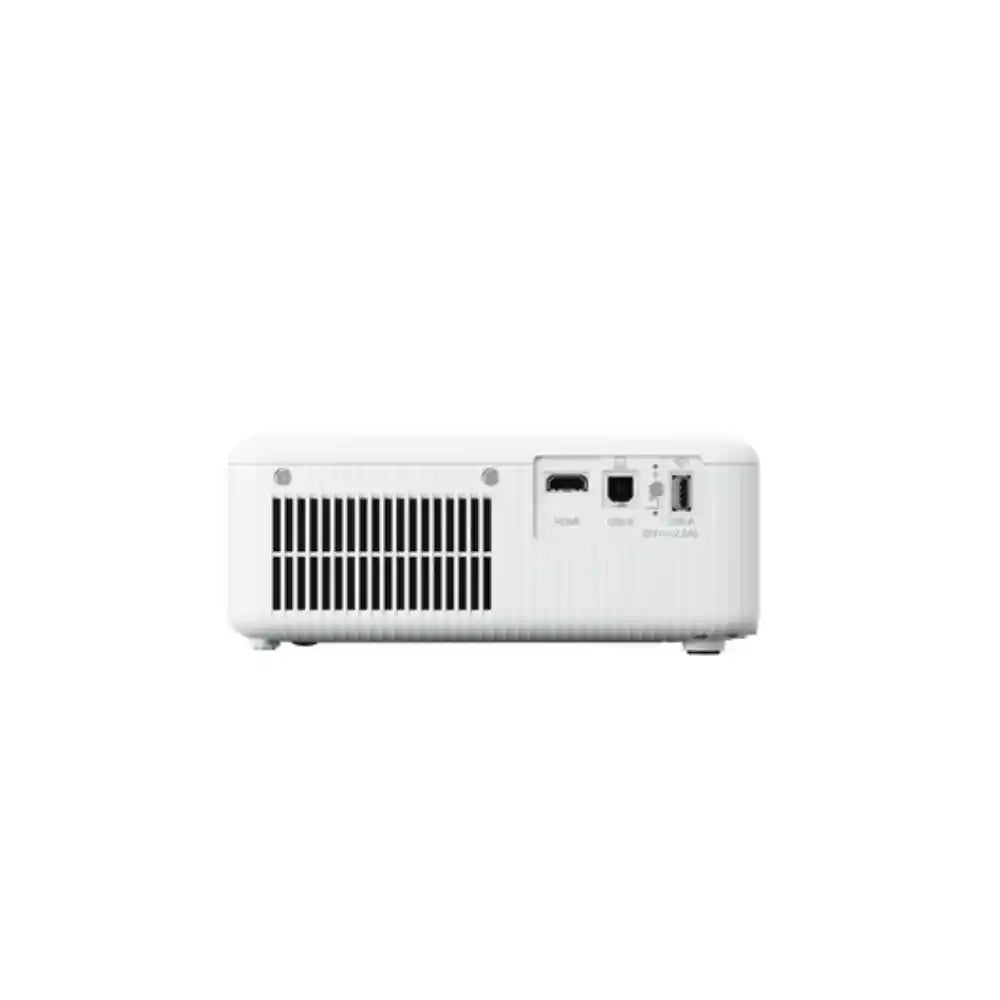

• Connectivity: HDMI 1.4, USB-A, USB 2.0 Type-B (service only)
• Wireless: Not built-in; optional ELPAP11 adapter (2.4 GHz and 5 GHz)
• Colour Modes: Dynamic, Cinema, Presentation, sRGB, Blackboard, Vivid
• Placement: Desktop front/rear, ceiling front/rear
• Noise Level (Normal): 38 dB(A)
• Noise Level (Eco): 29 dB(A)
• Power Consumption (Normal): 270 W
• Power Consumption (Eco): 214 W
• Standby Power: 0.5 W
• Supply Voltage: AC 100 V - 240 V, 50/60 Hz
• Operating Temperature: 5°C - 40°C
• Operating Humidity: 10% - 60%
• Colour: White

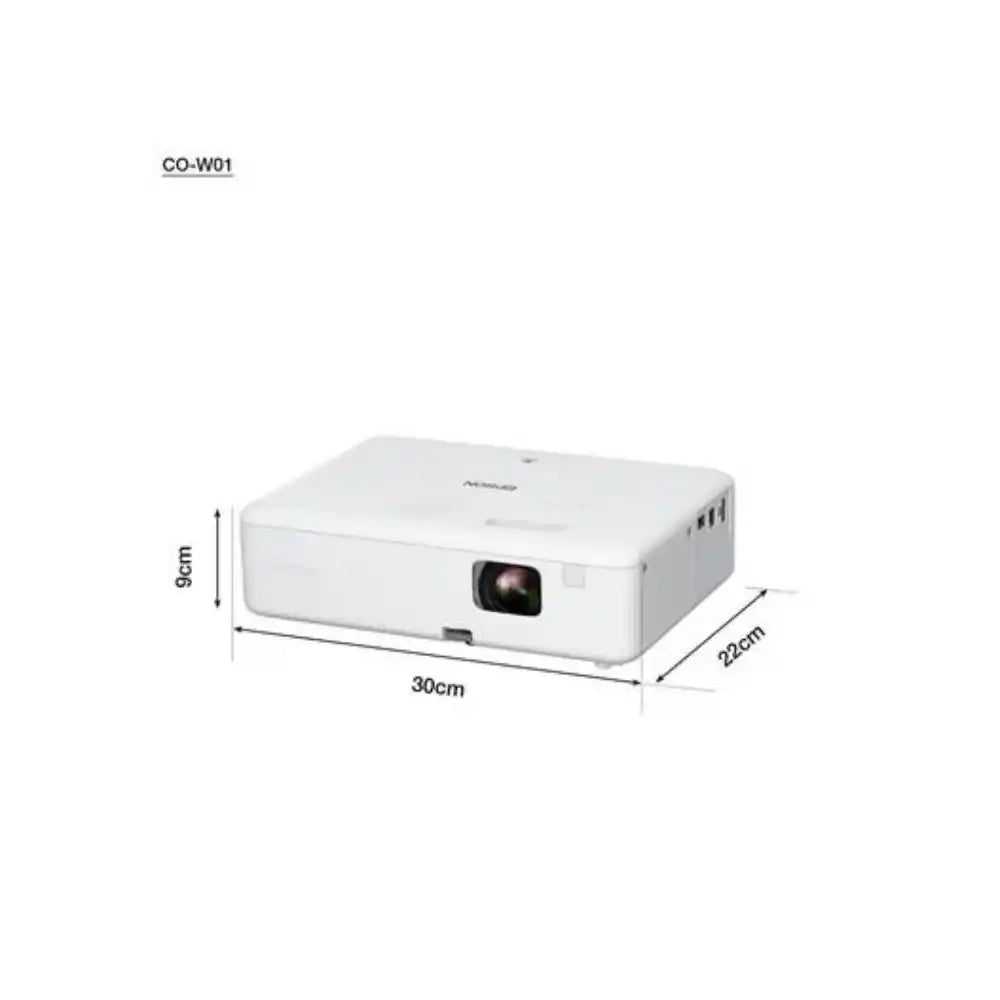

• Dimensions (HxWxD): 87 x 295 x 211 mm
• Weight: 2.4 kg
• Compliance: RoHS
• Part Number: V11HA86040
• Warranty: 2 Years (main unit); 1 Year or 1,000 hours on lamp, whichever is earlier

What's Included in the Box

• Epson CO-W01 projector
• Power cable
• Remote control with batteries
• Quick Start Guide
• User manual (CD)
• Warranty card

Note: An HDMI cable is not included.

Setup and Care

Positioning the Projector:

Place the CO-W01 on a stable, flat surface between 0.9 m and 10.4 m from your screen or wall. The unit supports front and rear desktop placement as well as ceiling mounting in both front and rear configurations. Adjust the front feet to set the vertical angle before focusing the image manually using the focus ring.

Keystone and Image Adjustment:

Automatic vertical keystone correction (±30°) activates on startup to straighten the image when the projector is positioned at an angle. Manual horizontal keystone correction (±30°) allows further fine-tuning. Use Quick Corner for independent four-corner geometric correction when the projection surface is irregular.

Lamp and Ventilation Care:

Allow the lamp to cool fully before moving the unit - or use the Instant Off feature, which removes the cool-down requirement entirely. Keep the air vents clear of obstructions during use and clean the filter periodically using a soft brush or low-power vacuum to maintain airflow and lamp performance.

Storage and Transport:

At 2.4 kg and 295 x 211 x 87 mm, the CO-W01 is straightforward to transport in a padded bag or backpack. Store in a dry environment between 10% and 90% relative humidity and avoid exposing the lens to direct sunlight for extended periods.
