Dewalt DCD86MP1T McLaren F1 Combi Drill 18V 1 x 5.0Ah Li-ion Battery | DEWDCD86MP1T

• DeWalt x McLaren F1 Team special edition 18V XR brushless combi drill
• 90Nm maximum torque with 2-speed gearbox (0-2,000 RPM)
• E-Clutch anti-rotation system detects bind-ups and shuts the drill down
• 14-position adjustable torque control for consistent screwdriving
• 177mm compact body length with 1.2kg bare weight
• 3-mode pivoting foot LED for visibility in dark and confined spaces
• Steel belt hook and magnetic bit holder for on-tool storage
• Intelligent variable-speed trigger for full application control
• 1 x 18V McLaren F1 5.0Ah Li-ion battery included
• McLaren F1 charger and TSTAK compatible carry case included
• Compatible with all DeWalt 18V XR, FlexVolt, and POWERSTACK batteries

DeWalt DCD86MP1T McLaren F1 Team 18V XR Brushless Combi Drill with 90Nm Torque, E-Clutch, and 5.0Ah Battery Kit

90Nm brushless combi drill in a compact 177mm body:

The DeWalt DCD86MP1T is a special edition 18V XR brushless combi drill created in collaboration with McLaren F1 Team, combining professional-grade drilling performance with the McLaren F1 design language. The brushless motor delivers up to 90Nm of torque and a no-load speed of 0-2,000 RPM through a 2-speed gearbox, handling drilling, hammer drilling, and screwdriving across wood, metal, masonry, and composite materials. The 177mm compact body length and 1.2kg bare weight provide access and control in confined spaces, overhead positions, and tight working areas.

E-Clutch anti-rotation system and 14-position torque control:

The E-Clutch system detects sudden tool rotation caused by bind-ups (the drill bit catching in the material) and shuts the motor down automatically, reducing the risk of wrist injury during overhead drilling and large-diameter hole-cutting. The 14-position adjustable torque control ring provides consistent, repeatable screwdriving across a wide range of materials and fastener sizes, preventing over-driving and cam-out. The 2-speed gearbox allows you to select low speed for high torque applications and high speed for fast drilling.

3-mode pivoting LED with steel belt hook and magnetic bit holder:

The 3-mode foot LED features a pivoting design that directs light onto the work surface from below, providing bright illumination in dark corners, inside cabinets, behind walls, and in ceiling voids. The steel belt hook clips the drill securely to your belt or tool belt for hands-free carrying up ladders and around site. The magnetic bit holder keeps your most-used driver bit stored on the tool body within immediate reach.

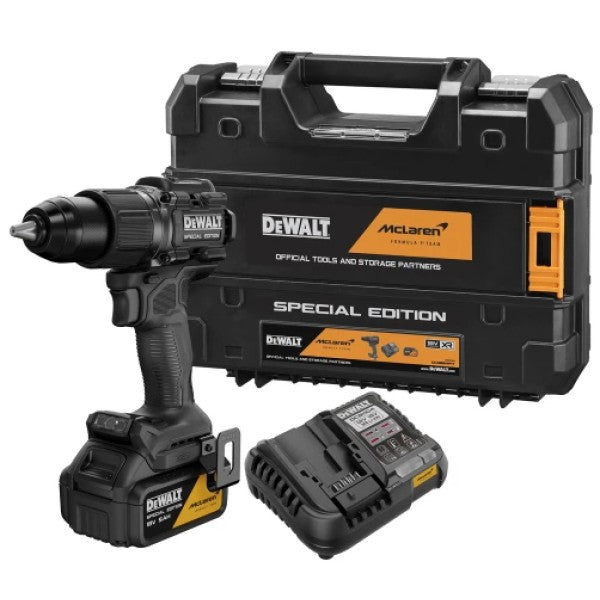

Full kit with McLaren F1 5.0Ah battery, charger, and TSTAK case:

The DCD86MP1T is supplied as a complete kit including one 18V McLaren F1 5.0Ah Li-ion battery, a McLaren F1 Li-ion charger, and a TSTAK compatible carry case for organised transport and storage. The drill is compatible with the full range of DeWalt 18V XR, FlexVolt, and POWERSTACK battery packs, allowing you to use your existing DeWalt batteries when the included 5.0Ah pack is on charge.

Shop tools and DIY products from Heavins.ie:

DeWalt power tools, combi drills, and 18V XR system accessories. In stock with fast nationwide delivery across Ireland. Browse our full Tools & DIY range for complete power tool solutions.

Key Features

• 90Nm torque: Handles drilling, hammer drilling, and screwdriving across all materials.

• 2-speed gearbox: 0-2,000 RPM for fast drilling and controlled fastening.

• E-Clutch: Anti-rotation system detects bind-ups and shuts down for safety.

• 14-position torque control: Consistent screwdriving into various materials.

• 177mm compact body: Access confined spaces and overhead positions.

• 1.2kg bare weight: Lightweight for reduced fatigue during all-day use.

• Brushless motor: Longer runtime, efficient power, extended tool life.

• 3-mode pivoting LED: Bright foot-mounted light for dark and confined areas.

• Steel belt hook: Secure on-belt carrying for hands-free mobility.

• Magnetic bit holder: On-tool driver bit storage within immediate reach.

• McLaren F1 design: Special edition livery and branded accessories.

• 18V XR system: Compatible with all DeWalt 18V XR, FlexVolt, and POWERSTACK packs.


Specifications

• Brand: DeWalt x McLaren F1 Team (Special Edition)
• Model: DCD86MP1T
• Type: 18V XR Brushless Combi Drill / Hammer Drill Driver
• Voltage: 18V
• Motor: Brushless
• Maximum Torque: 90Nm
• No Load Speed: 0-2,000/min (2-speed)
• Torque Settings: 14 positions + drill + hammer drill
• E-Clutch: Yes (anti-rotation bind-up protection)
• Chuck: 13mm all-metal
• LED: 3-mode pivoting foot light
• Belt Hook: Steel
• Bit Holder: Magnetic (on-tool)
• Trigger: Intelligent variable-speed
• Battery Compatibility: DeWalt 18V XR, FlexVolt, POWERSTACK
• Length: 177mm
• Weight (body only): 1.2kg
• EAN: 5054905332846
• Warranty: 1 Year (extendable to 3 years via MyDeWalt registration within 4 weeks)

What's Included in the Box

• DeWalt DCD86MP1T McLaren F1 18V XR Brushless Combi Drill
• 1 x 18V McLaren F1 5.0Ah Li-ion battery
• 1 x McLaren F1 Li-ion battery charger
• Steel belt hook
• Magnetic bit holder
• TSTAK compatible carry case

Setup and Care

Battery charging and first use:

Charge the included 5.0Ah McLaren F1 battery fully using the supplied charger before first use. Slide the charged battery onto the base of the drill until it clicks into place. Select the appropriate speed setting (1 or 2) and adjust the torque ring to suit your application. Insert a drill bit or driver bit into the 13mm chuck and tighten.

Drilling, hammer drilling, and screwdriving modes:

Select drill mode for standard drilling into wood, metal, and plastic. Select hammer drill mode for masonry, brick, and concrete. Use the 14-position torque ring for screwdriving, starting at a lower setting and increasing until the screw is driven flush without over-driving. The intelligent variable-speed trigger provides full speed control from a standing start to maximum RPM.

Using the E-Clutch and LED light:

The E-Clutch system activates automatically when the drill detects a sudden bind-up, shutting the motor down to protect your wrist and the workpiece. This is particularly important during overhead drilling and when using large-diameter hole saws. The 3-mode pivoting LED illuminates the work surface from below; pivot the light to direct it where visibility is needed most.

Maintenance, storage, and warranty registration:

The brushless motor requires no brush replacement. Keep the air vents clear of dust. Wipe the tool body with a dry cloth after use. Store in the TSTAK case. Register the drill at MyDeWalt within 4 weeks of purchase to extend the warranty from 1 year to 3 years.
