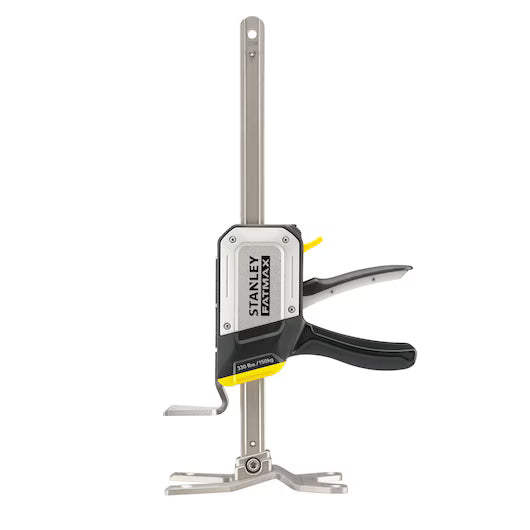

Stanley FatMax Tradelift | STA183550

• Stanley FatMax Tradelift foot-operated lifting clamp
• 150kg lifting force with 7-220mm height range
• Push-down lever lifts 8mm per stroke, can be operated by foot
• Fine adjuster lowers the lift plate 2.5mm per toggle for precise levelling
• Enclosed metal plate housing keeps dust and debris out
• Enlarged base plate with angled edge slides under low objects
• 4 anchor points with countersunk screw holes for fastening down
• Recessed full release button prevents accidental activation

Stanley FatMax Tradelift 150kg Lifting Clamp with Push-Down Lever, Fine Adjuster, and 7-220mm Height Range

150kg lifting force enables one-person fitting and levelling:

The Stanley FatMax Tradelift delivers up to 150kg of lifting force across a 7-220mm height range, enabling one person to lift, level, hold, and position heavy objects without assistance. The push-down lever mechanism lifts 8mm per stroke and can be operated by foot, leaving both hands free to hold and align the workpiece. Use it to lift and level kitchen units, hold doors in position during hinge fitting, support windows during installation, and nudge heavy appliances, sheet materials, and furniture into place.

2.5mm fine adjuster for precise levelling and positioning:

The incremental lowering tab lowers the lift plate by 2.5mm per toggle, providing the fine adjustment needed to level kitchen cabinets, align door frames, and match worktop heights precisely. This fine control separates the Tradelift from basic lifting wedges and shims, allowing you to dial in the exact height rather than working in coarse increments. The recessed full release button is set back from the handle surface to prevent accidental activation, lowering the load only when deliberately pressed.

Enclosed metal housing and enlarged base for durability and stability:

The enclosed metal plate housing protects the internal lifting mechanism from dust, debris, plaster, and sawdust commonly found on construction sites, extending the working life of the tool. The enlarged base plate is extended at the rear for added stability and features an angled edge that slides easily under low objects such as kitchen plinths, skirting boards, and base units. Four countersunk screw holes in the base allow you to anchor the Tradelift to the floor for additional stability during heavy or sustained lifting tasks. The overmoulded handle provides a comfortable, secure grip.

Shop tools and DIY products from Heavins.ie:

Stanley FatMax lifting tools, clamps, and installation accessories. In stock with fast nationwide delivery across Ireland. Browse our full Tools & DIY range for complete trade tool solutions.

Specifications

• Brand: Stanley (FatMax)
• Product: Tradelift
• Model: FMHT83550-1 / STA183550
• Type: Foot-operated lifting clamp
• Lifting Force: 150kg
• Lifting Capacity: 7-220mm height range
• Lifting Action: Push-down lever (foot operable)
• Lift Stroke: 8mm per stroke
• Incremental Lowering: 2.5mm per toggle
• Safety: Recessed full release button
• Housing: Enclosed metal plate (dust and debris resistant)
• Handle: Overmoulded for comfort and grip
• Base: Enlarged with angled edge and rear extension
• Anchor Points: 4 countersunk screw holes
• Base Dimensions: 170 x 125 x 6 mm
• Suitable For: Kitchen fitters, door/window fitters, carpenters, joiners, drywallers, flooring installers
• EAN: 3253561835506
• Warranty: 1 Year
