Bosch Series 4 Built in Single Oven - Stainless Steel | HQA534BS3B

• 71-litre cavity with 5 shelf positions - room for large family meals
• 3D Hotair - even heat across up to three levels at once
• Added Steam function - crisp outside, moist inside for bread and roasts
• EcoClean Direct rear-wall coating - passively absorbs grease splatter
• 7 cooking functions including Hot Air Grilling and Pizza Setting
• A+ energy rating - 0.94 kWh per cycle in conventional mode
• Triple-glazed drop-down door - better heat retention and cooler exterior
• Retractable rotary dials with LED display and integrated electronic clock
• Digital timer with start/stop scheduling and ready alarm
• Child lock for safe use in family kitchens
• Stainless steel finish - suits standard 60 cm built-in housing
• 2-year manufacturer warranty included
• Warranty: 2 Years
• Dimensions: 595 x 594 x 548 mm

Bosch Series 4 Built-In Single Oven with 3D Hotair and Added Steam

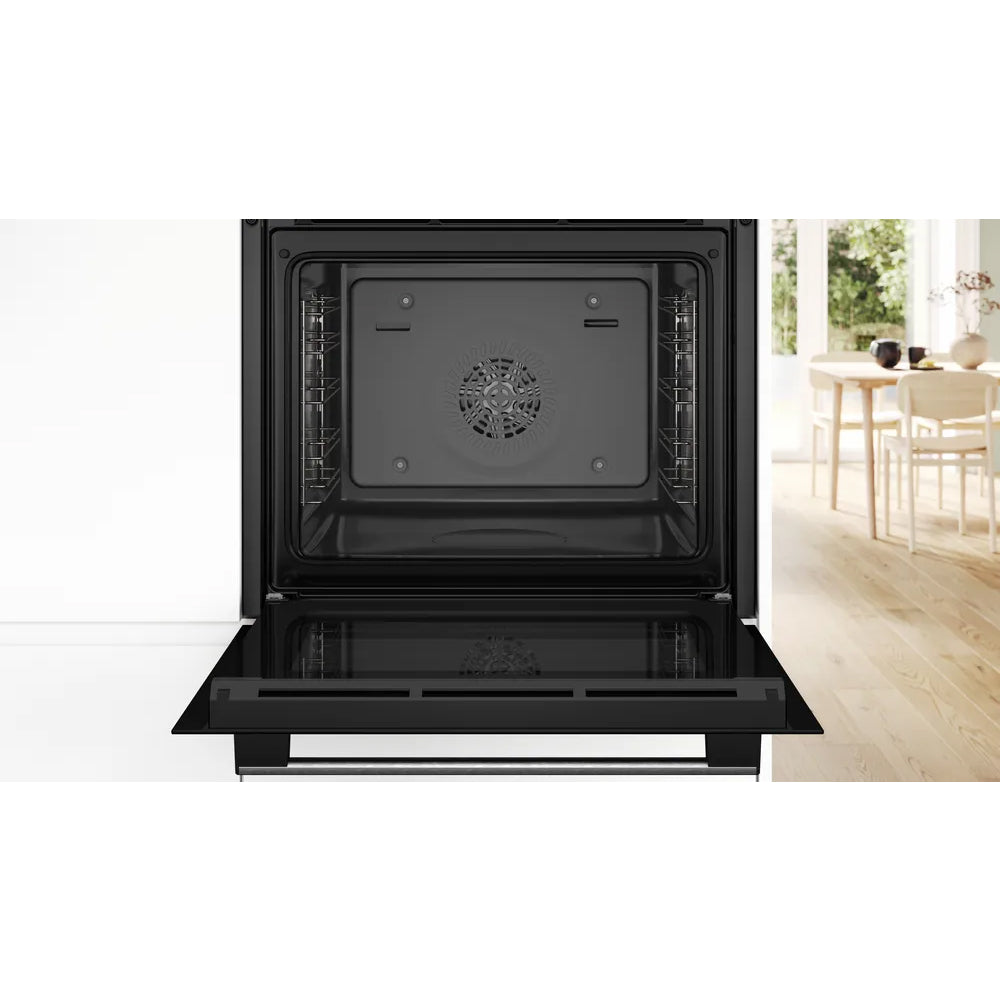

71-Litre Capacity with 3D Hotair Fan Technology:

The HQA534BS3B has a generous 71-litre main cavity with 5 shelf positions, giving plenty of room for large roasting dishes, multiple cake tins, or a full Sunday roast. Bosch's 3D Hotair system circulates heat evenly throughout the oven, allowing you to cook on up to three levels simultaneously without flavours transferring between dishes.

Added Steam for Better Baking Results:

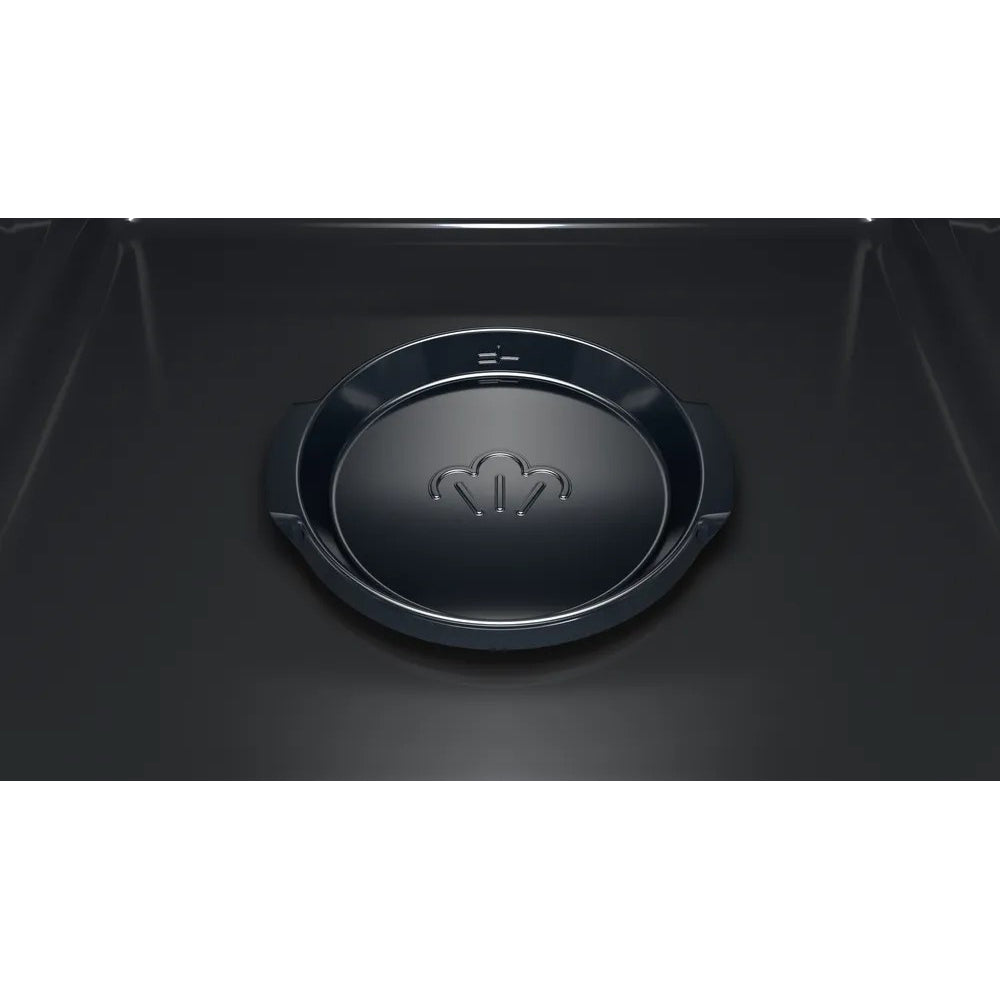

A removable 0.25-litre water bowl sits in the oven base and introduces steam into the cavity during cooking. This Hotair Steam function gives bread a crisp crust while keeping the interior moist, and helps retain the natural flavour and moisture of roasted meat. The steam bowl is dishwasher-safe and simple to fill before each use.

EcoClean Direct Rear-Wall Coating:

The rear wall of the oven cavity is coated with Bosch's EcoClean Direct micro-ceramic surface, which passively absorbs and breaks down grease splatter during cooking cycles. This reduces the frequency of manual scrubbing and the coating is designed to last the lifetime of the appliance. Hydrolytic (steam) cleaning is also available for routine maintenance of the remaining interior surfaces.

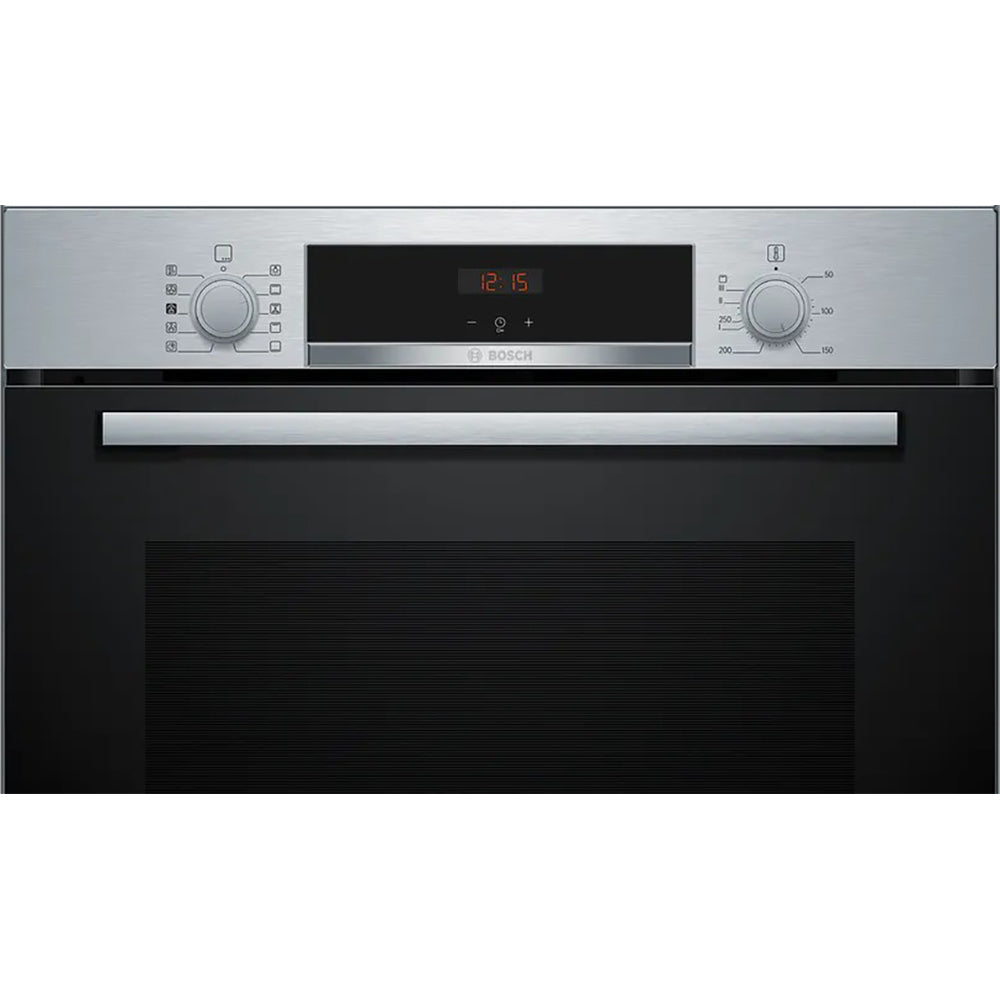

Retractable Dials and LED Display:

Control is handled via pop-out retractable rotary dials paired with an LED display and an integrated electronic clock. The digital timer supports start and stop time-setting as well as a ready alarm, making it straightforward to programme cooking sessions in advance. The triple-glazed drop-down door improves heat retention inside the cavity and reduces the external door temperature during use.

A+ Energy Rating:

The HQA534BS3B carries an A+ energy efficiency rating with a consumption of 0.94 kWh per cycle in conventional mode and 0.69 kWh per cycle in fan mode. The Energy Efficiency Index (EEI) is 81.2. The oven operates on a 2,800 W hard-wired connection (220-240 V, 13 A) and requires professional installation by a qualified electrician.

Shop the Appliances range from Heavins.ie, with delivery and collection options available across Ireland.

Key Features

3D Hotair - circulates heat evenly across up to three levels simultaneously.
Added Steam / Hotair Steam - 0.25-litre water bowl injects steam for crisp exteriors and moist interiors.
EcoClean Direct - micro-ceramic rear-wall coating absorbs grease passively throughout the appliance's lifetime.
HotAir Gentle - lower-temperature fan mode for delicate baking and slow cooking.
71-Litre Cavity - internal dimensions 415 mm deep x 357 mm high x 480 mm wide; 5 shelf positions.
7 Cooking Functions - Bottom Heat, Conventional Heat, Full-Width Grill, Hot Air, HotAir Gentle, Hot Air Grilling, Pizza Setting.
Triple-Glazed Drop-Down Door - three glass panels improve heat retention and reduce external door temperature.
Retractable Rotary Dials - pop-out knobs with LED display and integrated electronic clock.
Digital Timer - start/stop time-setting and ready alarm for advance programming.
Halogen Interior Light - single halogen lamp illuminates the full cavity during cooking.
Child Lock - lockable controls to prevent unintended adjustments.
Hydrolytic Cleaning - steam-clean function for routine interior maintenance.

Specifications

• Model: HQA534BS3B
• Colour/Finish: Stainless Steel
• Oven Type: Built-In Single Electric Oven
• Series: Bosch Series 4
• Main Cavity Capacity: 71 litres
• Number of Cooking Functions: 7
• Cooking Functions: Bottom Heat, Conventional Heat, Full-Width Grill, Hot Air, HotAir Gentle, Hot Air Grilling, Pizza Setting
• Steam Function: Added Steam via removable 0.25 L water bowl (dishwasher-safe)
• Temperature Range: 50-275 °C
• Number of Shelf Positions: 5
• Shelves Included: 1
• Grids Included: 2
• Control Type: Retractable rotary dials
• Display: LED with integrated electronic clock
• Timer: Digital; start/stop time-setting and ready alarm
• Door Style: Drop-down
• Door Glazing: Triple-glazed; removable inner glass
• Interior Light: Halogen, 1 lamp
• Cleaning System: EcoClean Direct (rear wall); Hydrolytic (steam clean)
• Child Lock: Yes
• Energy Rating: A+
• Energy Consumption (Conventional): 0.94 kWh/cycle
• Energy Consumption (Fan): 0.69 kWh/cycle
• Energy Efficiency Index (EEI): 81.2
• Connected Load: 2,800 W
• Voltage: 220-240 V / 50-60 Hz
• Current: 13 A
• Electrical Connection: Hard-wired (no plug supplied)
• Cord Length: 1.2 m
• Dimensions (HxWxD): 595 x 594 x 548 mm
• Installation Compartment (HxWxD): min. 585 x min. 560 x 550 mm
• Net Weight: 34 kg
• Country of Origin: Poland
• EAN: 4242005465576
• Warranty: 2 Years

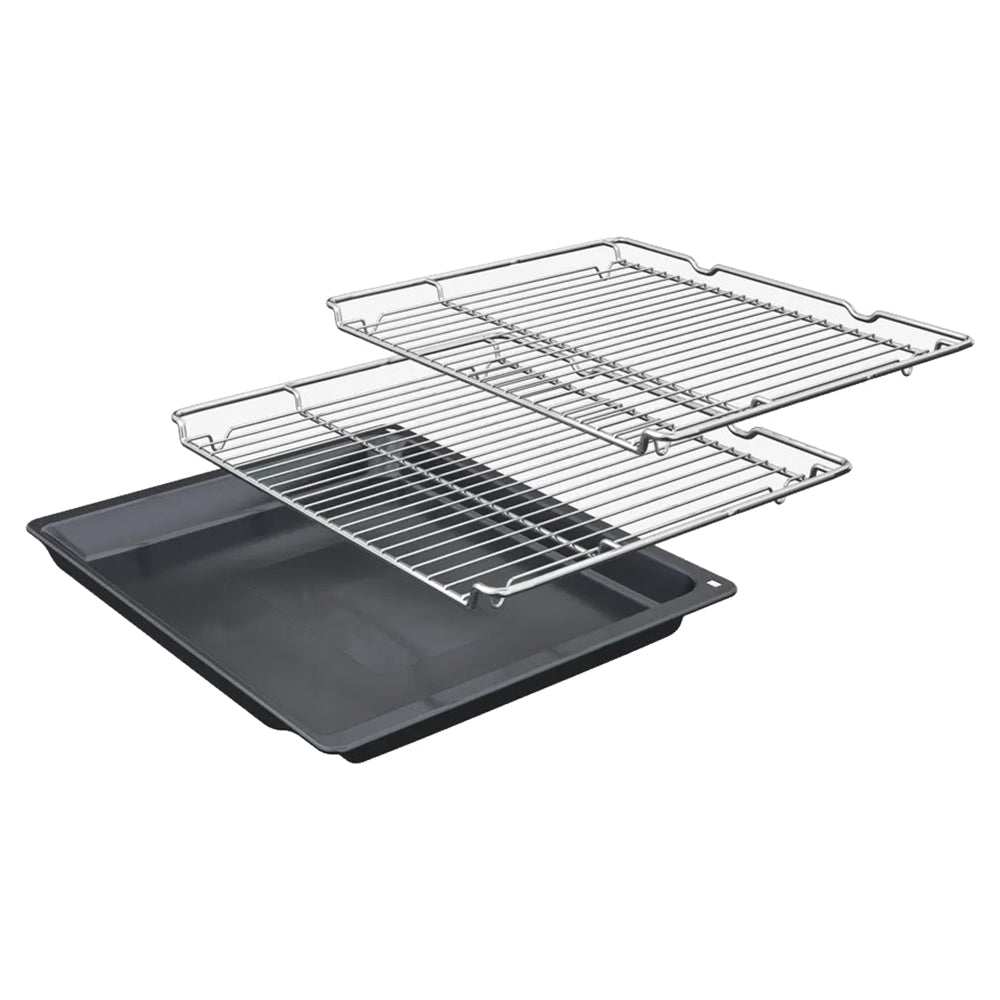

What's Included in the Box

• 1 x Bosch HQA534BS3B Built-In Single Oven
• 1 x Baking Tray
• 2 x Combination Grid
• 1 x Universal Pan

Setup and Care

Installation:

The HQA534BS3B is designed for installation into a standard 60 cm built-in housing unit. The installation compartment requires a minimum height of 585 mm, minimum width of 560 mm, and a depth of 550 mm. Connection must be made by a qualified electrician to a hard-wired 13 A supply; no plug is supplied.

First Use:

Before cooking for the first time, run the oven empty at 200 °C for approximately 30 minutes using the Hot Air function to burn off any residual manufacturing odour. Ensure the kitchen is well ventilated during this initial run. The steam bowl should be rinsed with clean water before first use.

Everyday Cleaning:

The EcoClean Direct coating on the rear wall works passively during cooking and does not require scrubbing; wipe lightly with a damp cloth when cool. For the remaining interior surfaces, use the Hydrolytic steam-clean function: add water to the steam bowl, select the clean programme, and wipe away loosened residue once the cycle has finished and the oven has cooled. The steam bowl, combination grids, baking tray, and universal pan are all dishwasher-safe.

Door Glass and Exterior Care:

The inner door glass panel is removable for thorough cleaning; refer to the user manual for the correct removal sequence. Wipe the stainless steel exterior with a soft damp cloth and dry immediately to maintain the finish. Avoid abrasive cleaners or steel wool pads on any surface.
