Dewalt DCH172P2 Ultra Compact XR SDS Plus Rotary Hammer 18V 2 x 5.0Ah Li-ion | DEWDCH172P2

• Cordless 18V XR brushless SDS Plus rotary hammer drill
• 1.4J impact energy - drills up to 16mm in concrete
• 0-4,980 blows per minute, 0-1,060 rpm no-load speed
• PERFORM & PROTECT certified for best-in-class vibration control
• SHOCKS ACTIVE VIBRATION CONTROL® reduces vibration to 8.8 m/s²
• Compact and lightweight - just 1.8kg bare tool weight
• Two operating modes: Rotary Hammer and Rotary Only
• Lanyard-ready attachment points for safe working at height
• Supplied with 2 x 5.0Ah batteries, charger, and TSTAK case
• SDS-Plus chuck - compatible with standard SDS-Plus bits
• Adjustable side handle with depth stop included
• Compatible with the full DeWalt 18V XR battery platform
• Manufacturer warranty: 1 year
• Dimensions: 176 x 73 x 265 mm

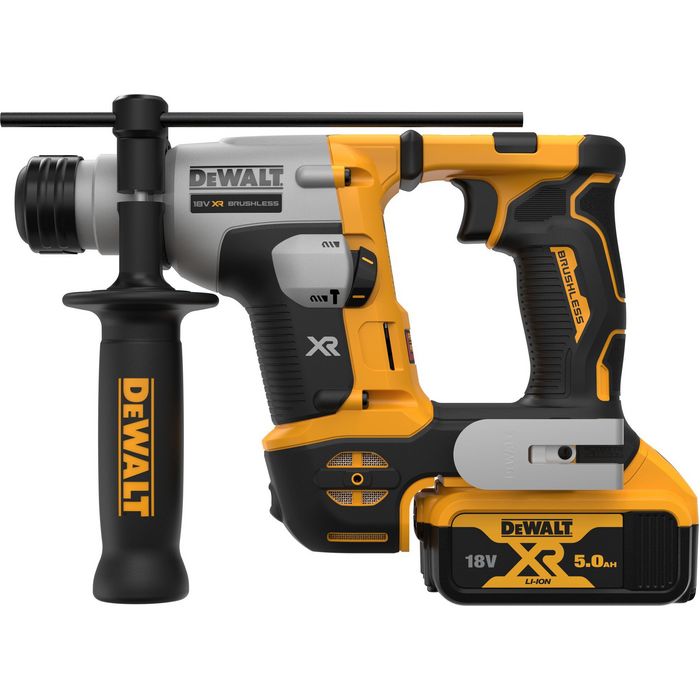

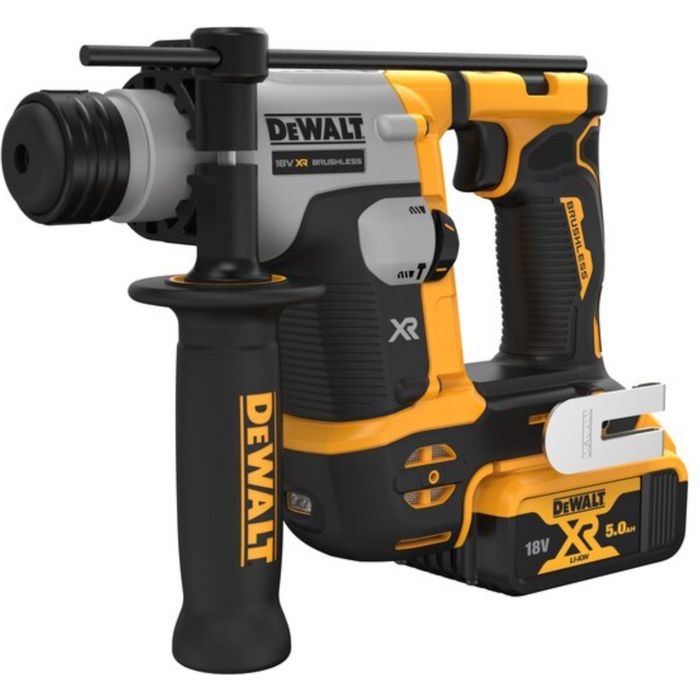

DeWalt DCH172P2 Compact 18V SDS Plus Drill with Vibration Control

Brushless Performance in a Compact Body:

The DCH172P2 uses an 18V XR brushless motor to deliver 1.4 joules of impact energy at up to 4,980 blows per minute, with a no-load speed of 0-1,060 rpm. This combination gives it a strong material removal rate for drilling anchor and fixing holes from 4mm to 16mm in concrete, brick, and masonry, without the bulk of a larger rotary hammer.

PERFORM & PROTECT Vibration Control:

The DCH172P2 carries DeWalt's PERFORM & PROTECT certification, which denotes best-in-class vibration performance within the 18V SDS-Plus category. The SHOCKS ACTIVE VIBRATION CONTROL® system reduces vibration at the handles to 8.8 m/s², helping to reduce arm fatigue during repetitive drilling tasks such as concrete formwork, cable tray assembly, and bracket fixing.

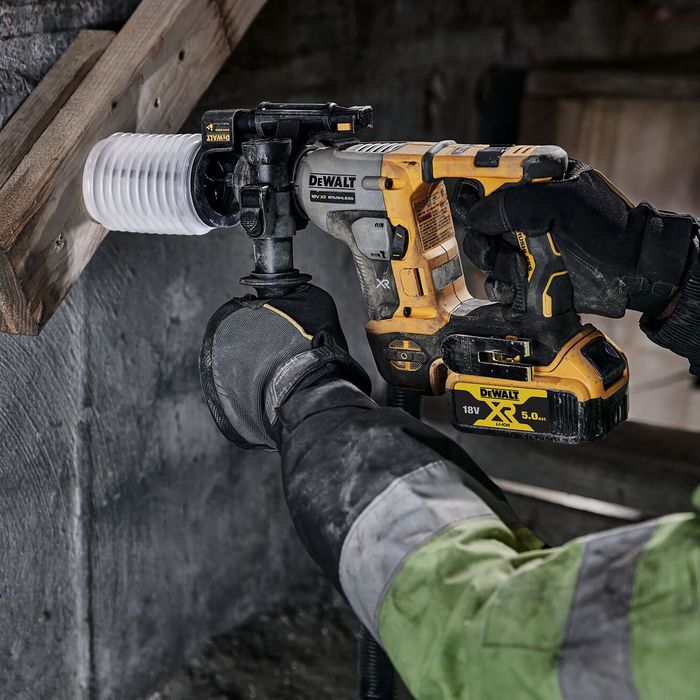

Built for Confined Spaces and Overhead Work:

At 1.8kg bare tool weight and 265mm in length, this is one of the most compact cordless SDS Plus drills in the 18V class. The ergonomic grip and lanyard-ready attachment points make it well suited to working at height or in tight access areas. The two-mode operation - Rotary Hammer and Rotary Only - gives additional flexibility across different material types and fixing requirements.

Two 5.0Ah Batteries and TSTAK Storage Included:

The P2 kit supplies two 5.0Ah 18V XR Li-Ion battery packs and a DCB115 multi-voltage charger, giving extended working time between charges. Everything packs into a TSTAK compatible carry case, which stacks with other DeWalt TSTAK units for organised site storage and transport.

Shop our Drills range from Heavins.ie, with delivery available across Ireland.

Key Features

Brushless Motor - 18V XR motor for longer runtime and reduced maintenance versus brushed alternatives.
1.4J Impact Energy - drills up to 16mm in concrete, 16mm in wood, and 10mm in metal.
4,980 Blows Per Minute - 0-4,980 bpm with a no-load speed of 0-1,060 rpm.
PERFORM & PROTECT Certified - best-in-class vibration performance in the 18V SDS-Plus class.
SHOCKS ACTIVE VIBRATION CONTROL® - reduces handle vibration to 8.8 m/s².
SDS-Plus Chuck - accepts standard SDS-Plus bits; quick and secure bit changes without a key.
Two Operating Modes - Rotary Hammer and Rotary Only for versatility across materials.
Compact and Lightweight - 1.8kg bare tool weight, 265mm length for confined-space access.

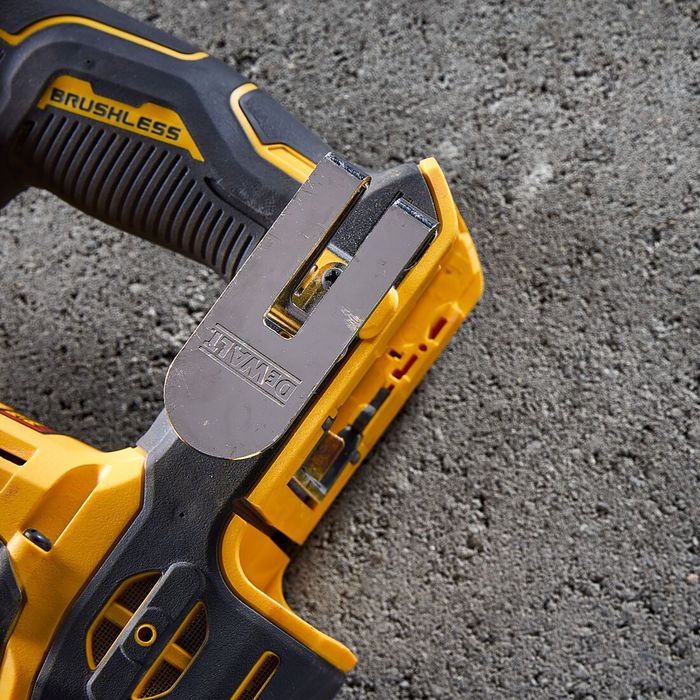

Lanyard-Ready Attachment Points - suitable for safe use at height.

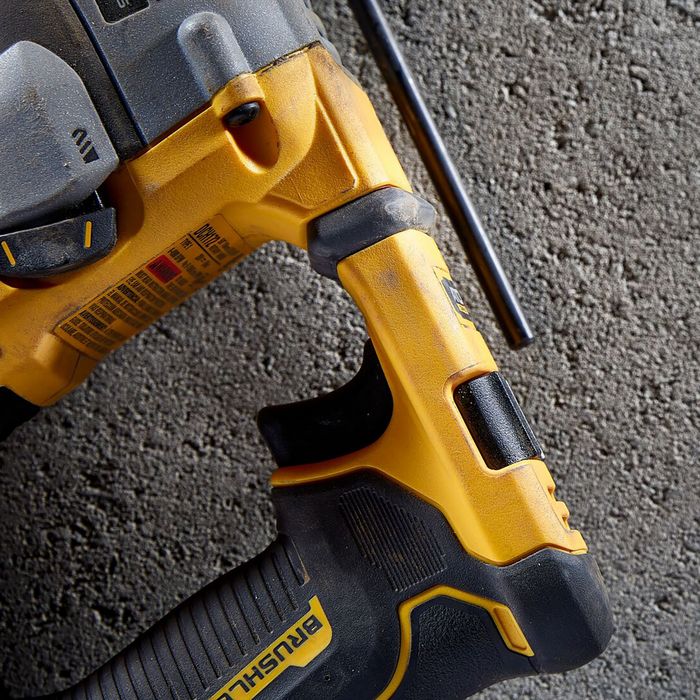

Adjustable Side Handle with Depth Stop - included for controlled drilling depth.
TSTAK Compatible Case - stackable storage that integrates with the full DeWalt TSTAK system.
18V XR Platform Compatible - batteries compatible with the full range of DeWalt 18V XR tools.

Specifications

• Model: DeWalt DCH172P2
• Voltage: 18V
• Chuck type: SDS-Plus
• No-load speed: 0-1,060 rpm
• Blows per minute: 0-4,980 bpm
• Impact energy (EPTA 05/2009): 1.4 J
• Max drilling capacity (concrete): 16 mm
• Max drilling capacity (wood): 16 mm
• Max drilling capacity (metal): 10 mm
• Optimum drilling range: 4-10 mm
• Operating modes: Rotary Hammer, Rotary Only
• Hand/arm vibration (hammer drilling into concrete): 8.8 m/s² (K1: 1.5 m/s²)
• Sound pressure: 87 dB(A) (uncertainty: 4 dB(A))
• Sound power: 98 dB(A) (uncertainty: 4 dB(A))
• Bare tool weight: 1.8 kg
• Weight with battery: 2.4 kg
• Dimensions (HxWxD): 176 x 73 x 265 mm
• Colour: Yellow
• Manufacturer warranty: 1 year

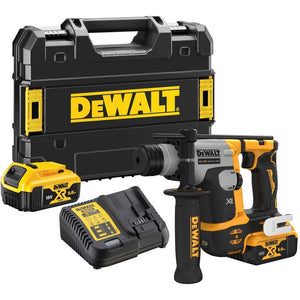

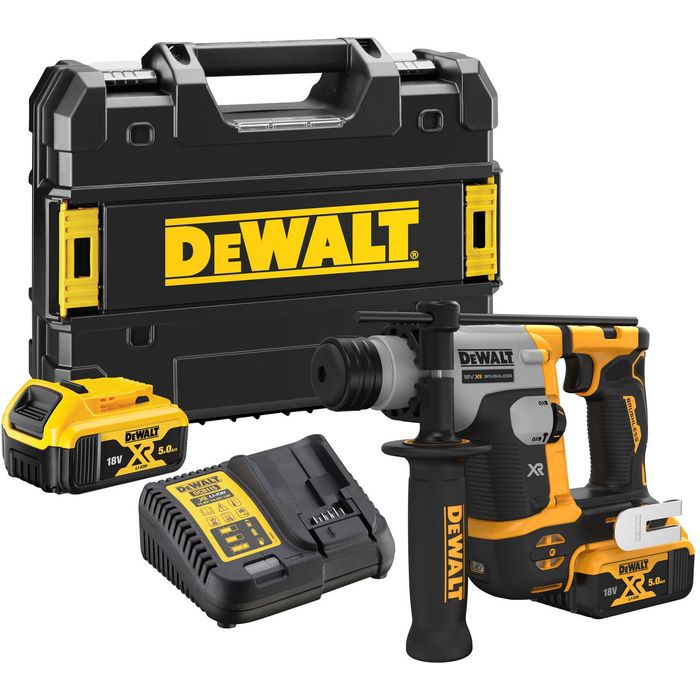

What's Included in the Box

• 1 x DCH172 Ultra Compact SDS-Plus Rotary Hammer Drill
• 2 x 18V XR Li-Ion 5.0Ah Battery Packs
• 1 x DCB115 Multi-Voltage XR Battery Charger
• 1 x Adjustable Side Handle with Depth Stop
• 1 x TSTAK Compatible Carry Case

Setup and Care

Getting Started:

Charge both supplied 5.0Ah batteries fully before first use using the included DCB115 multi-voltage charger. Insert an SDS-Plus bit by pulling back the chuck collar, pushing the bit in until it clicks, and releasing - no tools required. Attach the side handle and set the depth stop rod to your required drilling depth before beginning work.

Choosing the Right Mode:

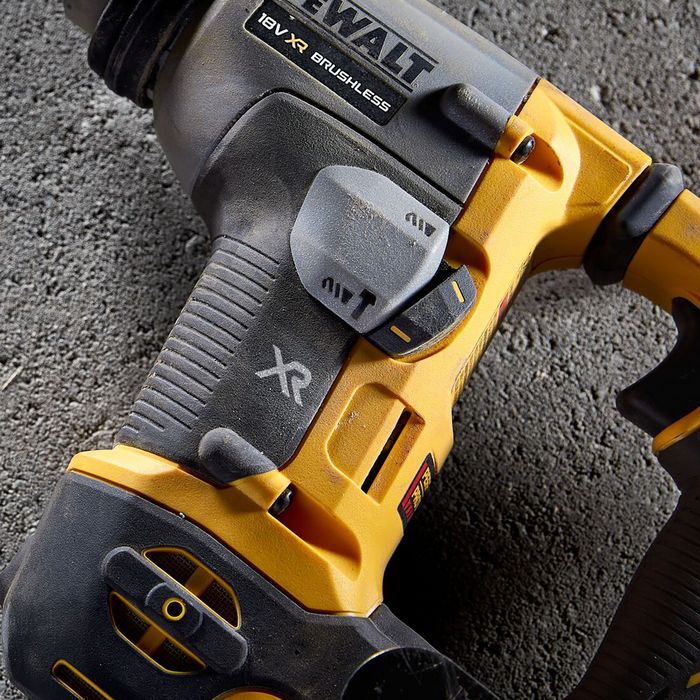

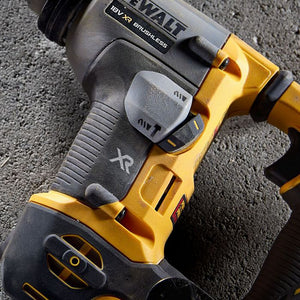

Use Rotary Hammer mode for concrete, brick, and masonry drilling. Switch to Rotary Only mode when drilling into wood or metal, or when driving fixings. The mode selector is positioned on the tool body for quick access without removing gloves.

Battery Care:

Store batteries at room temperature and away from direct sunlight when not in use. Avoid fully depleting the battery before recharging to help maintain long-term capacity. The DCB115 charger is compatible with all DeWalt 18V XR Li-Ion battery packs in the DCB18x series.

Maintenance and Cleaning:

After use, remove any dust from the motor vents and chuck area using a dry cloth or compressed air - avoid water ingress near electrical components. Inspect the SDS-Plus chuck periodically and apply a small amount of grease to bit shanks to reduce wear on the chuck mechanism. Store the tool in its TSTAK case to protect it from dust and impact on site.
