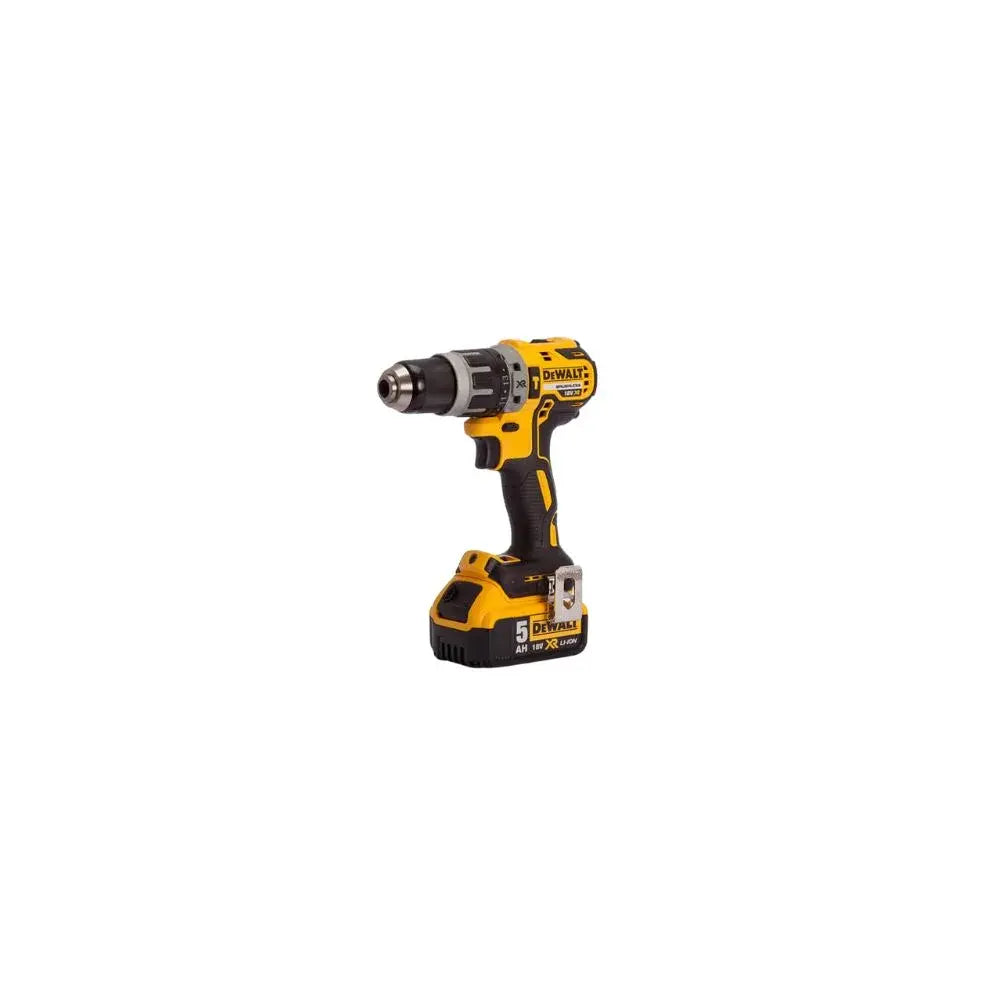

Dewalt XR Brushless Combi Hammer Drill 18V 1 x 5.0Ah Li-ion Battery | DCD796P1

• 2nd generation brushless motor - 460 UWO, 30% more power than DCD795
• 70 Nm max torque in Gear 1 for heavy-duty drilling and fixing
• 2-speed gearbox - 0-550 rpm and 0-2,000 rpm
• 15-position torque control for precise screwdriving
• 13 mm all-metal keyless chuck - accepts 1.5-13 mm bits
• Hammer mode - up to 34,000 bpm, 13 mm masonry capacity
• 3-position LED work light with 20-minute delay
• Compact 190 mm length - suited to confined spaces
• Includes DCB184 5.0Ah battery - charges in approx. 75 minutes
• Supplied in TSTAK Heavy-Duty Kitbox with shaped inlay
• Warranty: 1 Year (extendable to 3 years on registration within 4 weeks of purchase)
• Dimensions: 190 x 67 x 203 mm

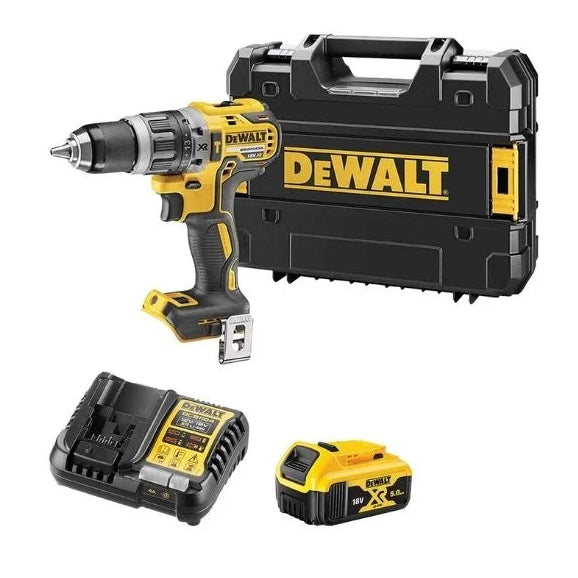

DeWalt 18V XR Brushless Combi Drill with 5.0Ah Battery and TSTAK Case

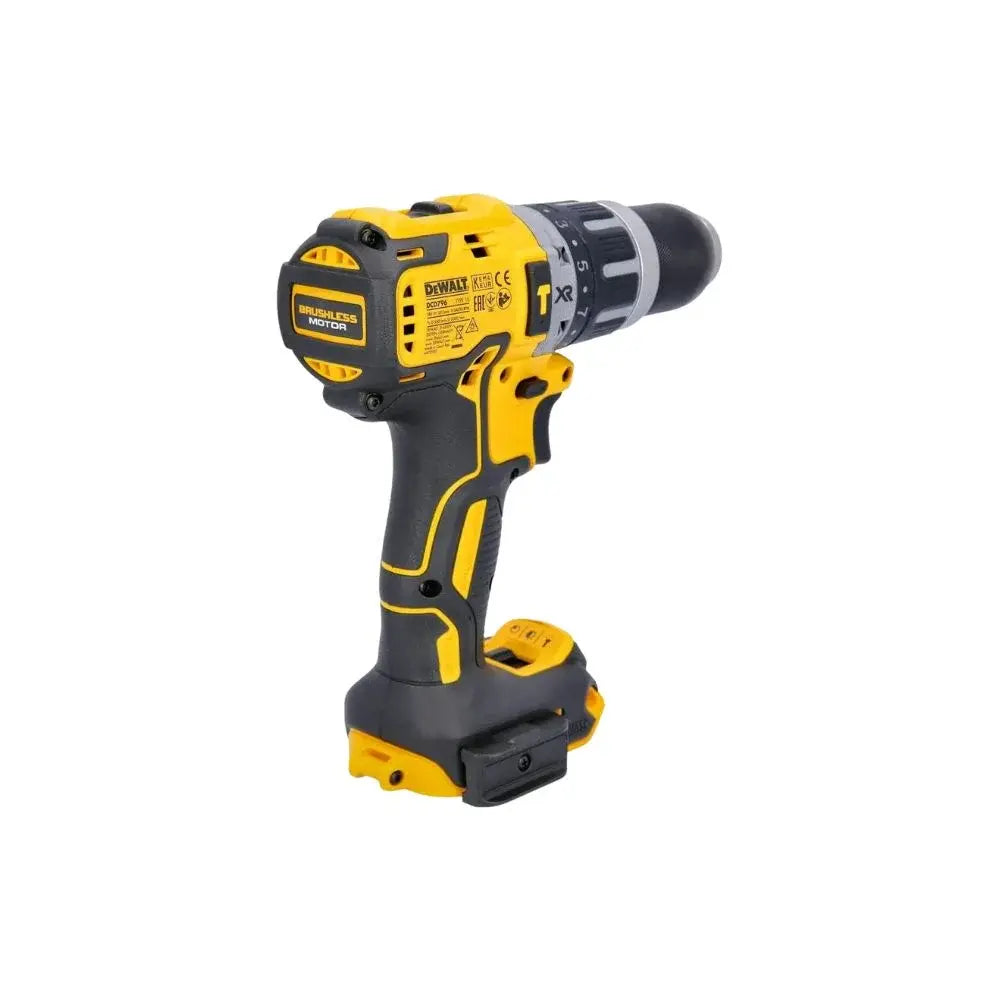

Brushless Motor with Serious Torque:

The DCD796P1 uses 2nd generation brushless motor technology to deliver 460 UWO of power output and a maximum torque of 70 Nm in Gear 1. Compared to the previous DCD795, this motor produces up to 30% more power and offers nearly 55% more runtime per charge - a meaningful improvement for anyone spending long periods on site or in the workshop.

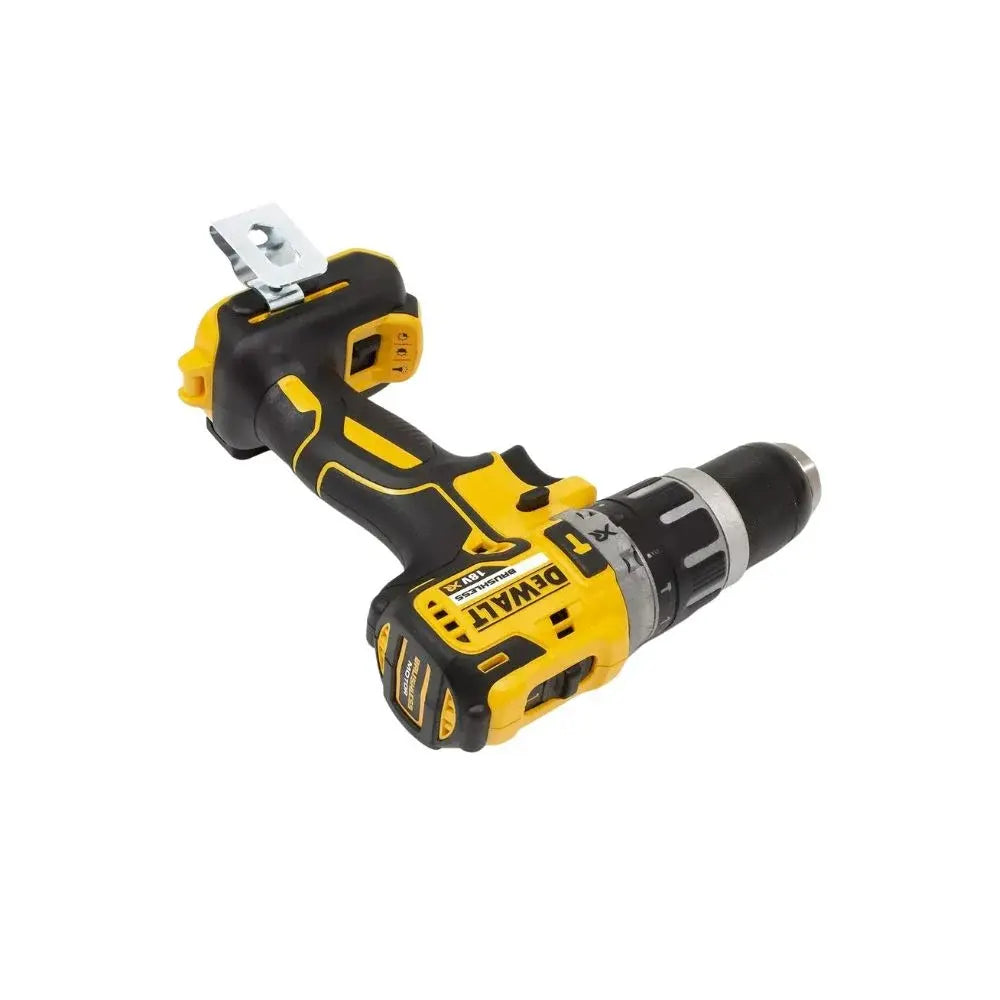

Compact Build for Confined Spaces:

At just 190 mm in length and 1.8 kg with the 5.0Ah battery fitted, the DCD796P1 is built to work where larger drills struggle. The ergonomic rubber grip over-mould and balanced weight distribution reduce fatigue during overhead or one-handed use. Improved airflow to the motor keeps electronics cooler under sustained load.

Two-Speed Gearbox and Adjustable Torque:

The all-metal 2-speed transmission gives 0-550 rpm in Gear 1 for controlled screwdriving and 0-2,000 rpm in Gear 2 for faster drilling. Fifteen clutch positions allow precise torque adjustment when driving fixings into timber or board materials. The 13 mm single-piece keyless chuck accepts bits from 1.5 mm up to 13 mm diameter.

Drilling Capacity Across Materials:

The hammer mode handles masonry work with up to 34,000 beats per minute, while the drill driver mode covers wood up to 40 mm and metal up to 13 mm. The 3-position LED work light includes high, medium, and low settings with a 20-minute delay, keeping the work area visible in poorly lit conditions.

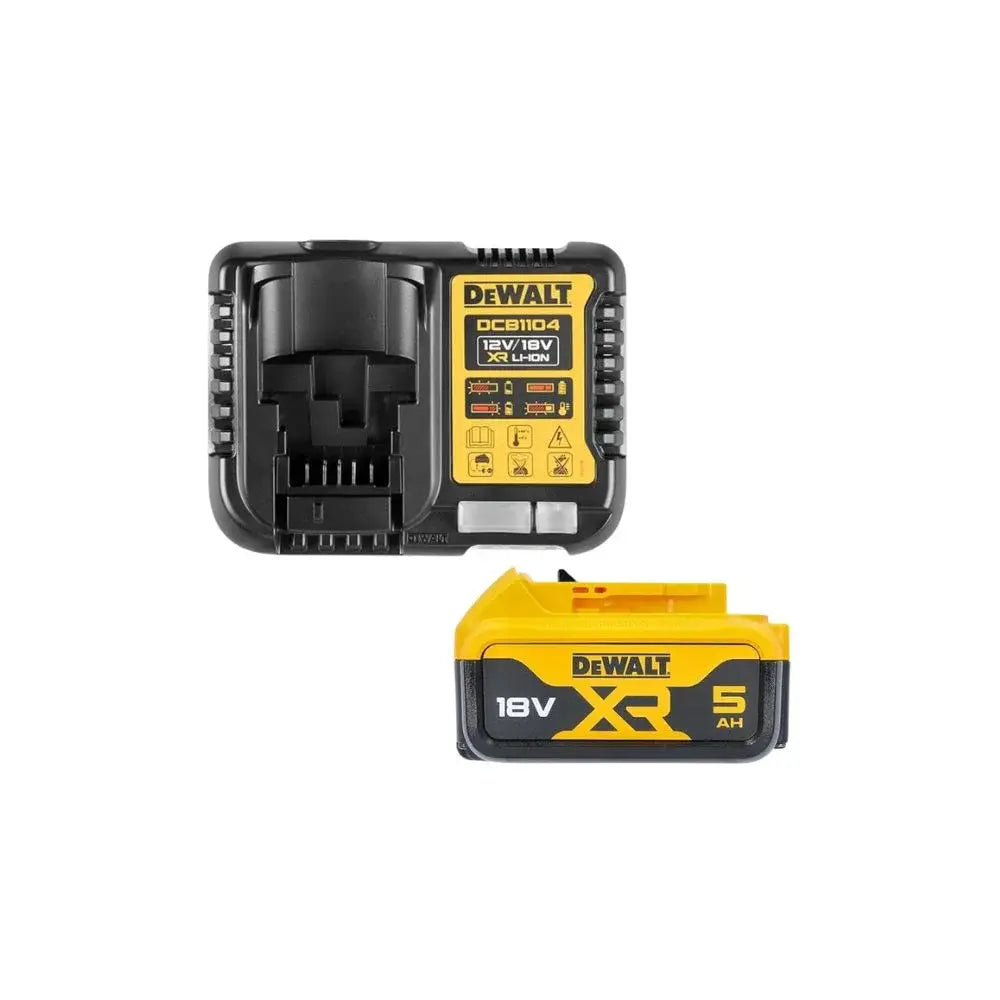

5.0Ah Battery and XR Charger Included:

The kit includes one DCB184 18V 5.0Ah XR Li-Ion battery with an LED charge indicator, which charges fully in approximately 75 minutes using the included DCB115 Multi-Voltage XR Charger. The charger is compatible with 10.8V, 14.4V, and 18V XR Li-Ion packs, making it a useful addition to any existing DeWalt XR tool collection. Everything is stored in a TSTAK Heavy-Duty Kitbox with a shaped inlay.

Shop the Tools range from Heavins.ie, with delivery available across Ireland.

Key Features

2nd Generation Brushless Motor - 460 UWO power output, 30% more power than DCD795, nearly 55% more runtime per charge.
70 Nm Maximum Torque - Gear 1 delivers 70 Nm for heavy fixings; Gear 2 gives 27 Nm for faster work.
2-Speed All-Metal Transmission - 0-550 rpm (Gear 1) and 0-2,000 rpm (Gear 2) for drilling and driving across materials.
15-Position Torque Control - Dial in the right clutch setting to avoid overdriving fixings into timber or board.
13 mm Keyless Chuck - Single-piece all-metal chuck accepts bits from 1.5 mm to 13 mm diameter.
Hammer Mode - Up to 34,000 bpm for drilling into masonry up to 13 mm diameter.

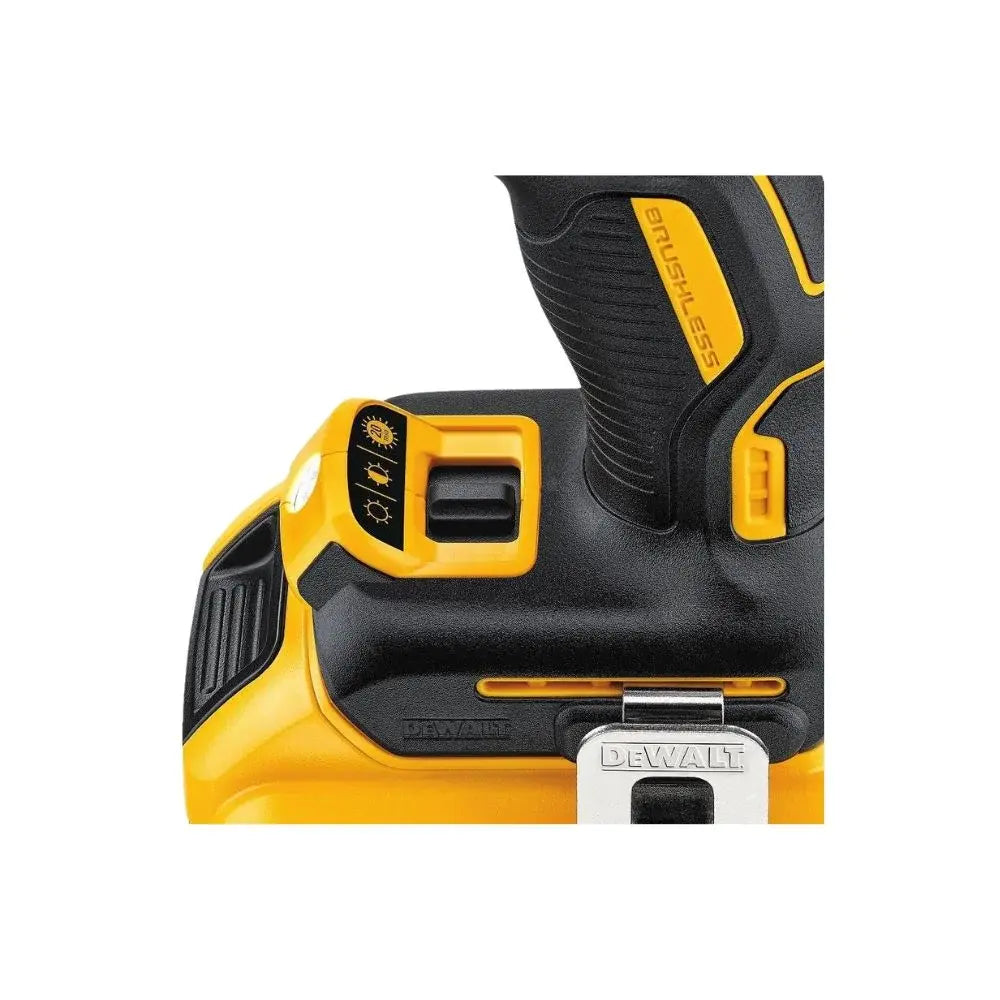

3-Position LED Work Light - High, medium, and low settings with a 20-minute delay after trigger release.
Compact 190 mm Length - Sized for use in confined spaces and overhead applications.
DCB184 5.0Ah Battery Included - Charges in approximately 75 minutes; LED battery charge indicator built in.
TSTAK Heavy-Duty Kitbox - Shaped inlay holds the drill, battery, charger, belt hook, and magnetic bit holder securely.

Specifications

• Brand: DeWalt
• Model: DCD796P1
• Voltage: 18V
• Motor Type: 2nd Generation Brushless
• Power Output: 460 UWO
• Max Torque (Gear 1 / Hard): 70 Nm
• Max Torque (Gear 2 / Soft): 27 Nm
• Speed (Gear 1): 0-550 rpm
• Speed (Gear 2): 0-2,000 rpm
• Beats Per Minute: 0-9,350 / 34,000 bpm
• Torque Settings: 15
• Chuck Size: 13 mm (keyless, all-metal)
• Max Drilling Capacity - Wood: 40 mm
• Max Drilling Capacity - Metal: 13 mm
• Max Drilling Capacity - Masonry: 13 mm
• Battery Included: 1 x DCB184 18V 5.0Ah XR Li-Ion
• Charger Included: DCB115 Multi-Voltage XR Charger
• Charge Time (5.0Ah): Approximately 75 minutes
• Sound Pressure: 89 dB(A)
• Sound Power: 100 dB(A)
• Vibration - Hammer Drilling in Concrete: 11.5 m/s²
• Vibration - Drilling in Metal / Screwdriving: <2.5 m/s²
• Weight (with 5.0Ah battery): 1.8 kg
• Dimensions (LxWxH): 190 x 67 x 203 mm
• Warranty: 1 Year (extendable to 3 years on registration within 4 weeks of purchase)

What's Included in the Box

• 1 x DCD796 18V XR Brushless Combi Drill Body
• 1 x DCB184 18V 5.0Ah XR Li-Ion Battery
• 1 x DCB115 Multi-Voltage XR Charger
• 1 x Belt Hook
• 1 x Magnetic Bit Holder
• 1 x TSTAK Heavy-Duty Kitbox with shaped inlay

Setup and Care

Getting Started:

Charge the DCB184 battery using the included DCB115 Multi-Voltage XR Charger before first use - a full charge takes approximately 75 minutes. Fit the battery until it clicks firmly into the base of the drill, then select the appropriate speed and torque setting for your material before beginning work.

Choosing the Right Setting:

Use Gear 1 (0-550 rpm) with a lower clutch position for driving screws into softwood or sheet materials, and Gear 2 (0-2,000 rpm) for faster drilling through wood and metal. Switch to hammer mode for masonry work, keeping the drill speed steady and applying consistent forward pressure for best results.

Keeping the Tool in Good Condition:

After use, wipe the drill body and chuck with a dry cloth to remove dust and debris, paying particular attention to the ventilation slots. Store the battery at room temperature and avoid leaving it fully discharged for extended periods, as this helps maintain long-term capacity.

Battery Care:

The LED charge indicator on the DCB184 battery shows remaining charge at the press of a button. Recharge the battery before it is fully depleted where possible, and store the TSTAK kitbox in a dry location away from direct sunlight or moisture.
