EufyMake Rotary Printing Attachment for UV Printer E1 | V7220010

• Prints directly onto mugs, tumblers, and bottles
• Supports diameters from 40 mm to 100 mm
• Auto-leveling for consistent alignment on curved surfaces
• Handles tapers of less than 15° and emboss up to 1 mm
• Object weight capacity up to 1 kg
• Print length range approximately 79 mm to 244 mm
• Modular plug-in design for the eufyMake E1 UV Printer
• Compact 377 x 140 x 109 mm footprint, weighs 2 kg
• Warranty: 1 Year
• Dimensions: 377 x 140 x 109 mm

EufyMake E1 Rotary Attachment | Print on Cylinders, Mugs, and Tumblers

Extend Your E1 to Cylindrical Printing:

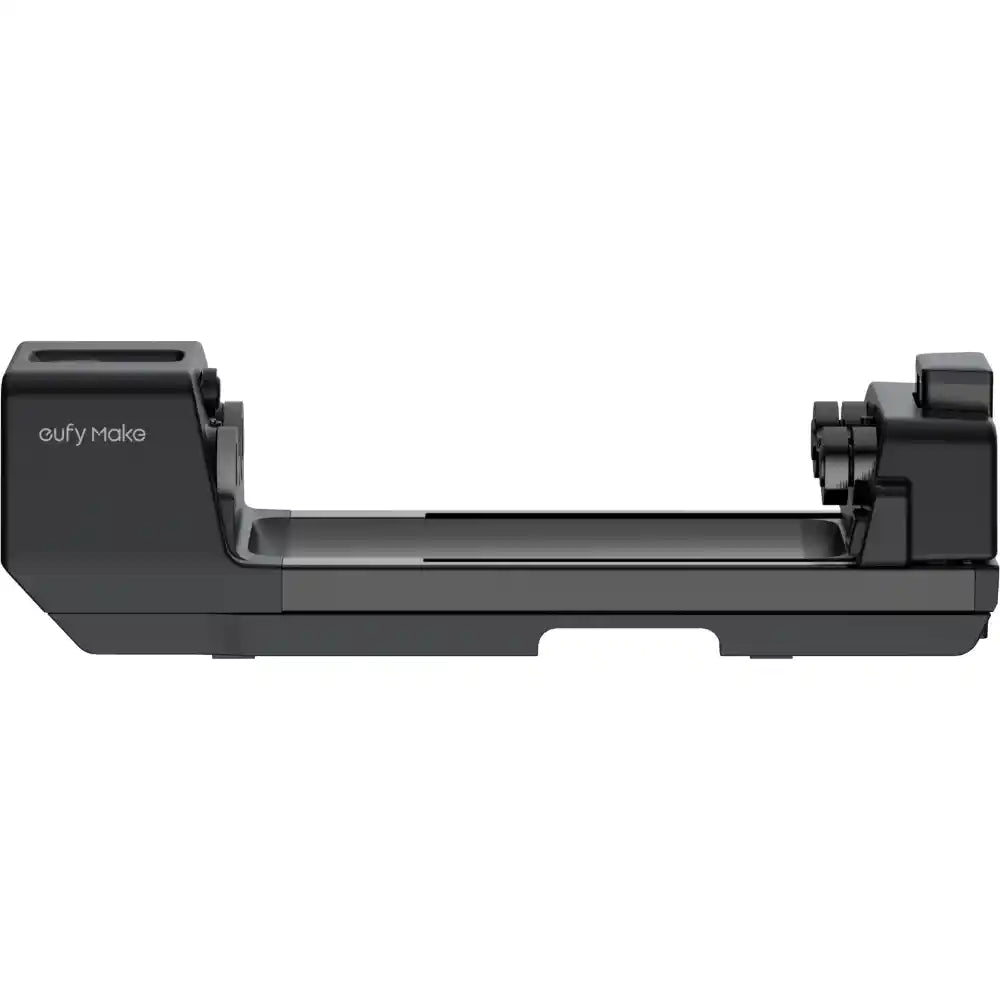

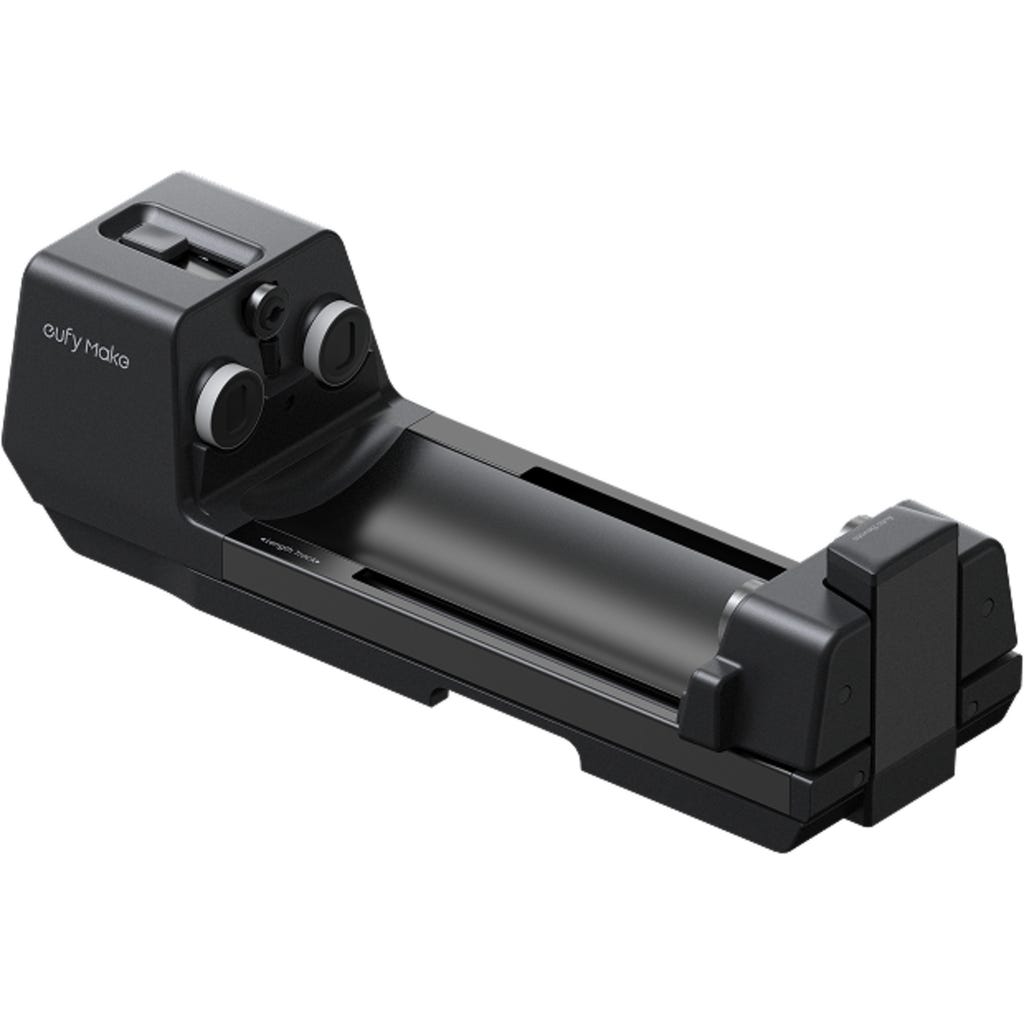

The eufyMake Rotary Printing Attachment connects directly to the eufyMake E1 UV Printer and enables direct UV printing onto mugs, tumblers, bottles, and other cylindrical or conical objects. It supports a printing diameter range of 40 to 100 mm and a print length of approximately 79 to 244 mm, handling objects up to 1 kg in weight. This turns the E1 from a flatbed-only printer into a versatile rotary printing station without any permanent modification to the base unit.

Auto-Leveling for Consistent Results:

The attachment features built-in Auto-leveling, which compensates automatically for height and angle variations across curved and tapered surfaces. It accommodates tapers of less than 15° and supports embossed printing up to 1 mm in height. This removes the need for manual calibration between objects and helps maintain consistent print alignment across a full batch of cylindrical items.

Compact Modular Build:

At 377 x 140 x 109 mm and 2 kg, the attachment is compact enough to store alongside the E1 when not in use. It is part of the broader eufyMake modular accessory range, designed to slot into the E1 ecosystem alongside other add-ons such as the UV DTF Laminating Machine. The recommended working temperature is 15°C to 35°C with a humidity range of 20% to 85% RH.

Shop the Entertainment range from Heavins.ie, serving customers across Ireland.

Key Features

Auto-leveling - compensates automatically for curved and tapered surfaces, no manual calibration needed.
Printing Diameter Range - supports objects from 40 mm to 100 mm in diameter.
Print Length Range - approximately 79 mm to 244 mm along the object.
Taper Support - handles tapered objects with a taper of less than 15°.
Emboss Capability - prints raised textures up to 1 mm in height on cylindrical surfaces.
Object Weight Capacity - holds objects up to 1 kg securely during printing.
Modular Design - plugs into the eufyMake E1 UV Printer without permanent modification.
Compact Footprint - 377 x 140 x 109 mm and 2 kg for easy storage alongside the E1.

Specifications

• Compatible Printer: eufyMake E1 UV Printer
• Supported Printing Diameter: 40-100 mm
• Supported Print Length: 79-244 mm (approx. 3.1"-9.6")
• Maximum Object Weight: 1 kg (2.2 lb)
• Taper Range Supported: Less than 15°
• Maximum Emboss Height: 1 mm
• Auto-leveling: Yes
• Colour: Black
• Dimensions (WxDxH): 377 x 140 x 109 mm
• Weight: 2 kg (4.4 lb)
• Weight Including Packaging: 3 kg (6.61 lb)
• Recommended Working Temperature: 15°C-35°C
• Working Humidity Range: 20%-85% RH
• Warranty: 1 Year (Main Part)

What's Included in the Box

• eufyMake Rotary Printing Attachment for E1 UV Printer
• 2 x Follower Wheel Bushing
• 2 x Drive Wheel Bushing
• Strut Spacer
