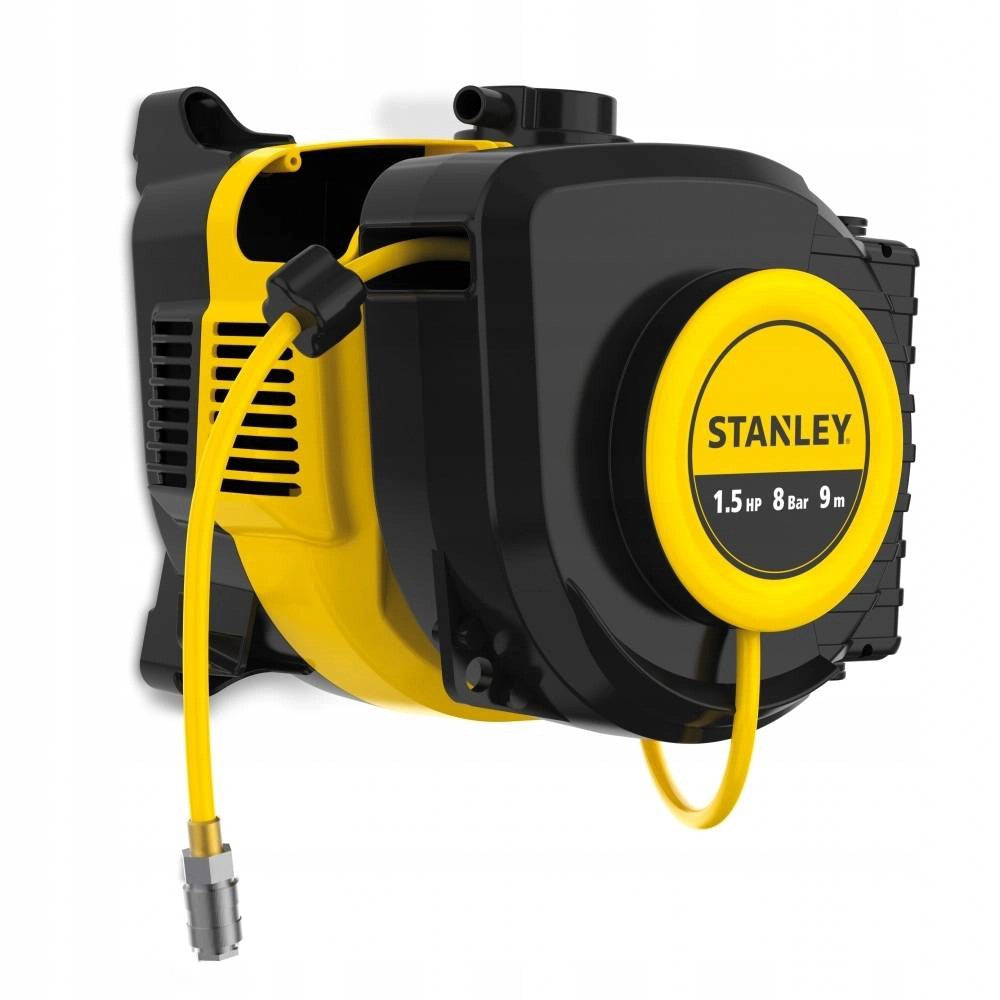

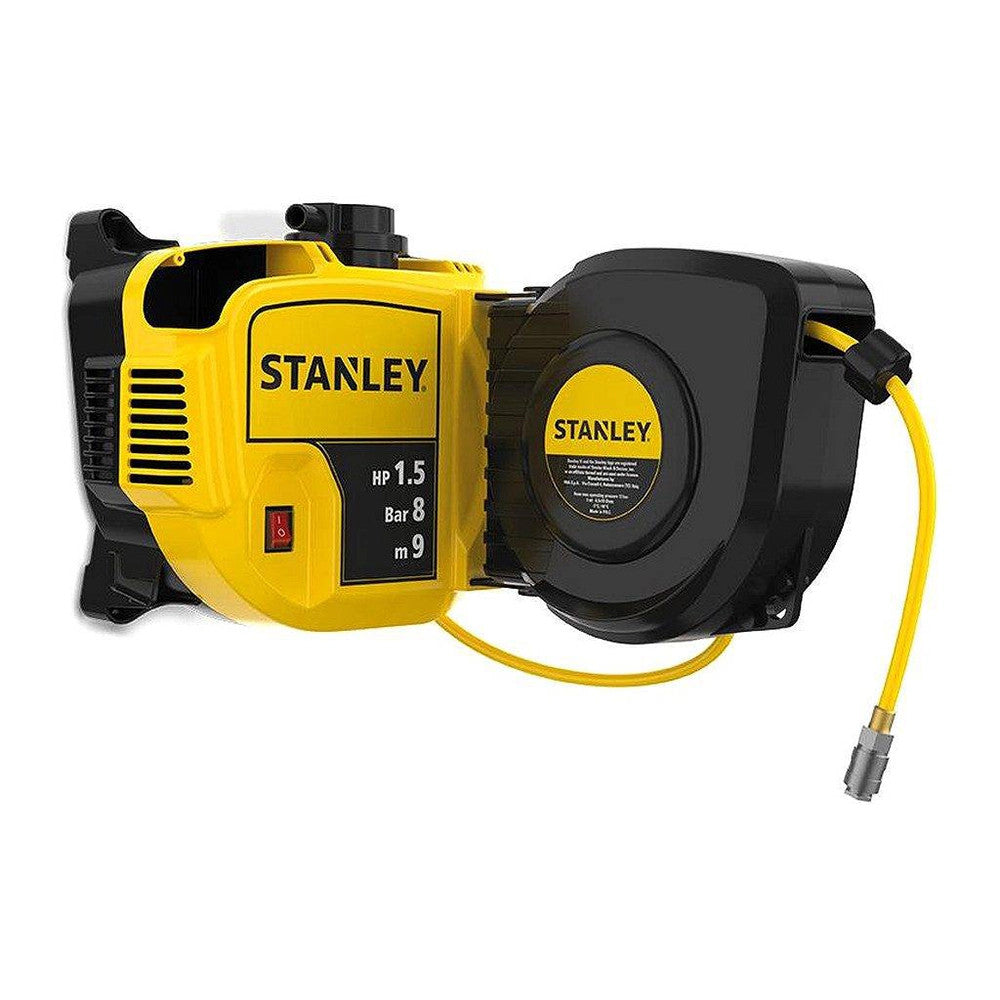

Stanley SXCMD15WE Wall Mounted Air Hose 1.5 HP 8 Bar 9 Metre | SACMD15WE

• Wall-mounted design - frees up garage or workshop floor entirely
• Oil-Less Technology - no oil checks or changes required
• Built-in 9m retractable hose reel - auto-rewinds after use
• 1,100W motor delivering 100 l/min FAD at up to 8 bar
• Rotates 180° once installed for flexible directional access
• Integrated 2-litre tank built into the body of the unit
• Single-stage oil-free pump running at 2,000 RPM
• Suitable for nailers, staplers, tyre inflators, and blow guns
• Mounts using included paper drilling template - fits most walls
• Operating temperature +5°C to +40°C for indoor workshop use
• Warranty: 2 Years
• Dimensions: 380 x 210 x 540 mm

Stanley Wall Tech Pro wall-mounted oil-free air compressor with 1,100W motor, 8 bar pressure, and built-in 9m hose reel

Wall-mounted design that keeps your workspace clear:

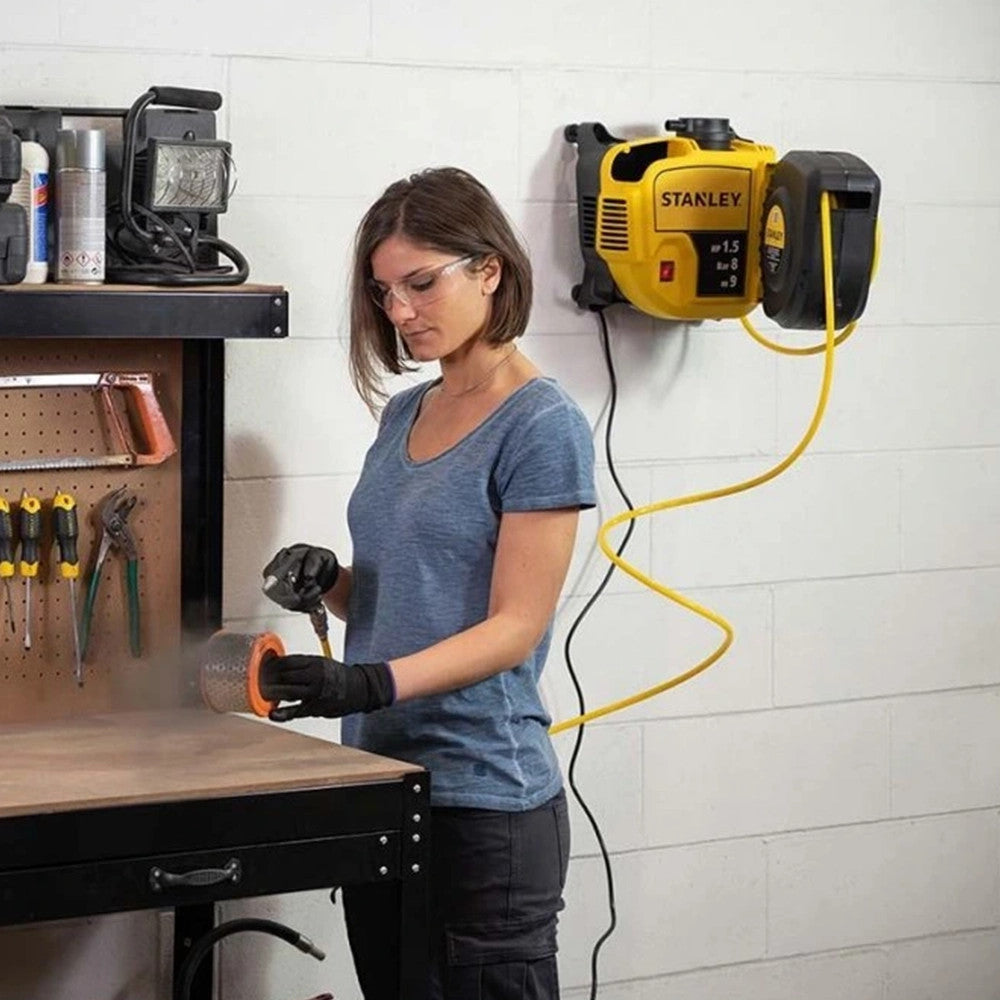

The SXCMD15WE mounts directly to the wall using a paper drilling template, freeing up your garage or workshop floor entirely. Once installed, the unit rotates 180° so you can direct the built-in 9m retractable hose reel towards any corner of the workspace without repositioning the compressor itself.

Oil-Less Technology for maintenance-free use:

Stanley's Oil-Less Technology eliminates the need for oil checks, top-ups, or oil changes during the lifetime of the compressor. The only routine task required is draining condensation from the integrated 2-litre tank after use, which takes seconds and requires no tools.

Consistent pressure output for a range of air tools:

The 1,100W motor runs at 2,000 RPM and delivers a Free Air Delivery of 100 litres per minute at up to 8 bar maximum pressure, with a 7 bar operating pressure. This is sufficient for nailers, staplers, tyre inflators, blow guns, and similar pneumatic accessories used in a home or small trade workshop.

Shop the full Garden & Outdoor range from Heavins.ie, with delivery available across Ireland.

Key Features

Oil-Less Technology - no oil maintenance required throughout the unit's life.
Wall-mounted design - saves floor space; installs using included paper drilling template.
180° rotation - unit rotates once mounted for access to awkward spaces.
Built-in 9m retractable hose reel - integrated automatic rewinder keeps hose tidy and ready to use.
1,100W motor - runs at 2,000 RPM for consistent air delivery.
8 bar maximum pressure - 7 bar operating pressure for a range of pneumatic tools.
100 l/min Free Air Delivery - 160 l/min air displacement (intake flow).
Integrated 2-litre tank - minimal footprint; tank runs along the edge of the body.
Single-stage coaxial direct-drive pump - compact and efficient transmission.
1.9m power cable - sufficient reach from a wall socket to the mounting point.
Intermittent duty cycle - suitable for workshop tasks with rest intervals.
Operating temperature +5°C to +40°C - for use in dry, well-ventilated indoor spaces.

Specifications

• Model: SXCMD15WE
• Motor power: 1,100W (1.5 HP)
• Voltage: 230V AC
• Pump RPM: 2,000 RPM
• Max pressure: 8 bar
• Operating pressure: 7 bar
• Free Air Delivery (FAD): 100 l/min
• Air displacement: 160 l/min
• Tank capacity: 2 litres (integrated)
• Hose reel length: 9m (integrated, auto-retractable)
• Air couplings: 1
• Pump type: Single-stage, coaxial direct-drive
• Cylinders: 1
• Lubrication: Oil-free
• Duty cycle: Intermittent
• Noise level: 97 LwA
• Power cable length: 1.9m
• Plug: Not included (requires standard 230V socket)
• Operating temperature: +5°C to +40°C
• Carbon brushes: Non-replaceable
• Dimensions (LxWxH): 380 x 210 x 540 mm
• Weight: 11.5 kg
• EAN: 8016738798807
• Warranty: 2 Years

What's Included in the Box

• Stanley SXCMD15WE Wall Tech Pro air compressor with integrated 9m hose reel
• Paper drilling template for wall mounting
• Instruction manual

Setup and Care

Getting started:

Use the included paper drilling template to mark your wall mounting points accurately. The installation is straightforward and typically takes around 10 minutes with a drill, wall plugs, and screws. Once mounted, connect to a standard 230V socket and the unit is ready to use.

Connecting your air tools:

Pull the hose from the built-in reel and connect your pneumatic accessory to the air coupling. Set your required working pressure using the regulator before use. The hose retracts automatically when released, keeping the workspace tidy between tasks.

Ongoing maintenance:

Because the SXCMD15WE uses Oil-Less Technology, there are no oil levels to check or change. Drain any condensation from the integrated tank after each use by opening the drain valve briefly. Keep the air intake vents clear of dust and debris for reliable long-term performance.

Storage:

As a permanent wall-mounted unit, the SXCMD15WE remains in place between uses. Ensure the power cable is unplugged when the compressor is not in use. Store in a dry indoor environment within the operating temperature range of +5°C to +40°C.
