Bosch Expert Self Cut Speed Spade Drill Bit Set 7 Piece | XMS26FLATBIT

• 7-piece EXPERT spade drill bit set from Bosch
• Six diameters: 16, 18, 20, 22, 25 and 32 mm
• Bosch Tip Technology - self-feeding screw tip, less pressure needed
• Up to 3x faster than Bosch standard spade bit
• Wave-shaped spade clears chips fast, reduces clogging
• 1/4 inch impact-rated hex shank - fits drill drivers and impact drivers
• 152 mm extension bar included for deep and hard-to-reach holes
• Suited to softwood and particleboard - ideal for cable routing
• Dimensions: 215 x 235 x 20 mm

Bosch EXPERT Self Cut Speed Spade Drill Bits for Fast, Clean Holes in Wood

Built for Electricians and Installation Workers:

The Bosch EXPERT Self Cut Speed Spade Drill Bit Set is put together specifically for electricians and other installation workers who need to drill through holes fast. The set covers the six most commonly required diameters - 16, 18, 20, 22, 25 and 32 mm - and includes a 152 mm extension bar for reaching into deeper cavities and stud walls. All six bits have a 152 mm total length with a 100 mm working length.

Bosch Tip Technology - Self-Feeding for Speed:

At the centre of each bit is Bosch Tip Technology: a self-feeding threaded screw tip that draws the bit into the workpiece without the user needing to apply heavy downward pressure. This reduces fatigue on long runs of cable routing and keeps the bit on course from the first contact. Bosch cites a drilling speed up to 3 times faster than its own standard spade bit (2609255269) under comparable conditions.

Wave-Shaped Spade for Clean Chip Removal:

The spade blade uses a wave-shaped profile designed to clear wood chips rapidly from the cutting zone. This reduces clogging in softwood and particleboard and keeps cut quality consistent hole after hole. The 1/4 inch hex shank is impact-rated, so the bits seat securely in both standard three-jaw drills and hex-chuck impact drivers - transferring torque directly without slip.

Shop the full Drill Bits range from Heavins.ie, with delivery available across Ireland.

Key Features

Bosch Tip Technology - self-feeding screw tip draws the bit in with minimal pressure for fast, controlled entry.
Up to 3x Faster - manufacturer-tested speed advantage over Bosch standard spade bit (2609255269).
Wave-shaped spade profile - clears chips rapidly to reduce clogging and maintain cut quality.
1/4 inch hex shank - impact-rated for use in drill drivers and hex-chuck impact drivers without slip.
Six diameters covered - 16, 18, 20, 22, 25 and 32 mm covers the most common cable and fixing hole sizes.
152 mm extension bar included - adds reach for stud walls, floor joists and deep cavities.
152 mm total length - with 100 mm working length on each bit.
Suitable materials - softwood and particleboard; well suited to cable routing and hardware installation work.
EXPERT line - Bosch's professional accessory tier, built for repeated site use.

Specifications

• Part number: 2608902110

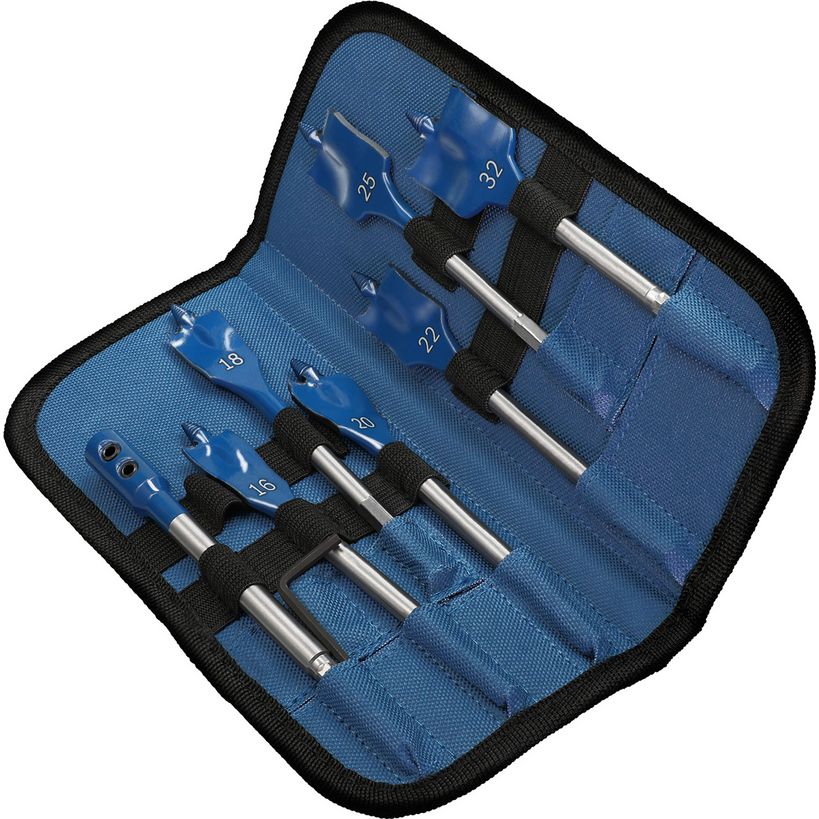

• Set contents: 6 spade bits + 1 extension bar (7 pieces)
• Bit diameters: 16 / 18 / 20 / 22 / 25 / 32 mm
• Total bit length: 152 mm
• Working length: 100 mm
• Extension bar length: 152 mm
• Shank: 1/4 inch hex (impact-rated)
• Compatible materials: Softwood, Particleboard
• Weight: 0.500 kg
• Packaging dimensions: 215 x 235 x 20 mm
• Warranty: 1 Year

What's Included in the Box

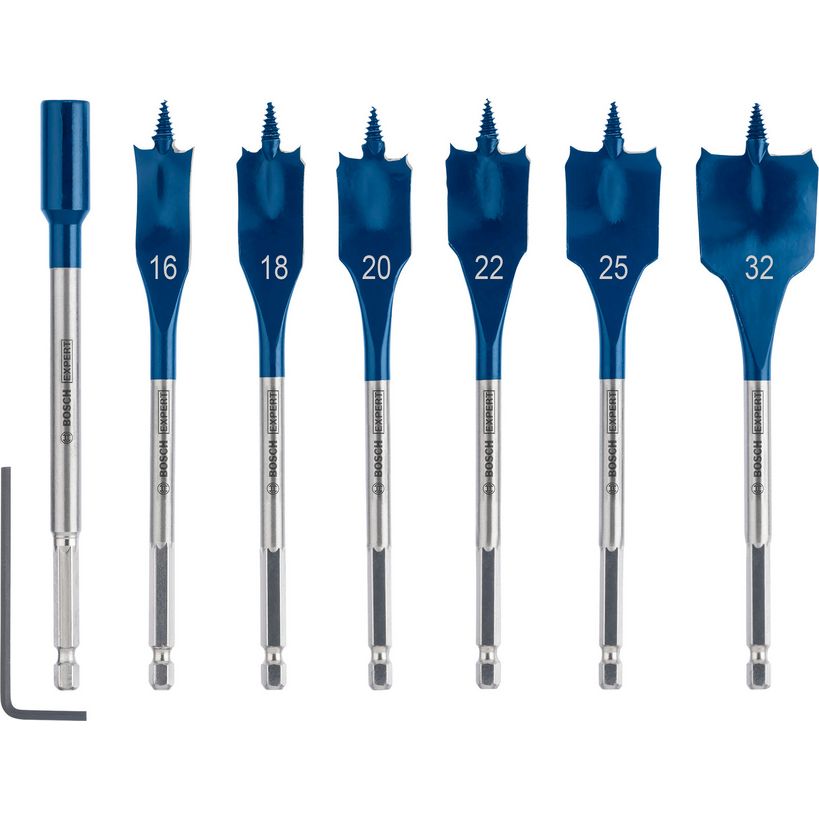

• 6 x Bosch EXPERT Self Cut Speed Spade Drill Bits: 16 x 152 mm, 18 x 152 mm, 20 x 152 mm, 22 x 152 mm, 25 x 152 mm, 32 x 152 mm
• 1 x EXPERT Self Cut Speed Spade Drill Extension Bar (152 mm)
• 1 x Hex Key
