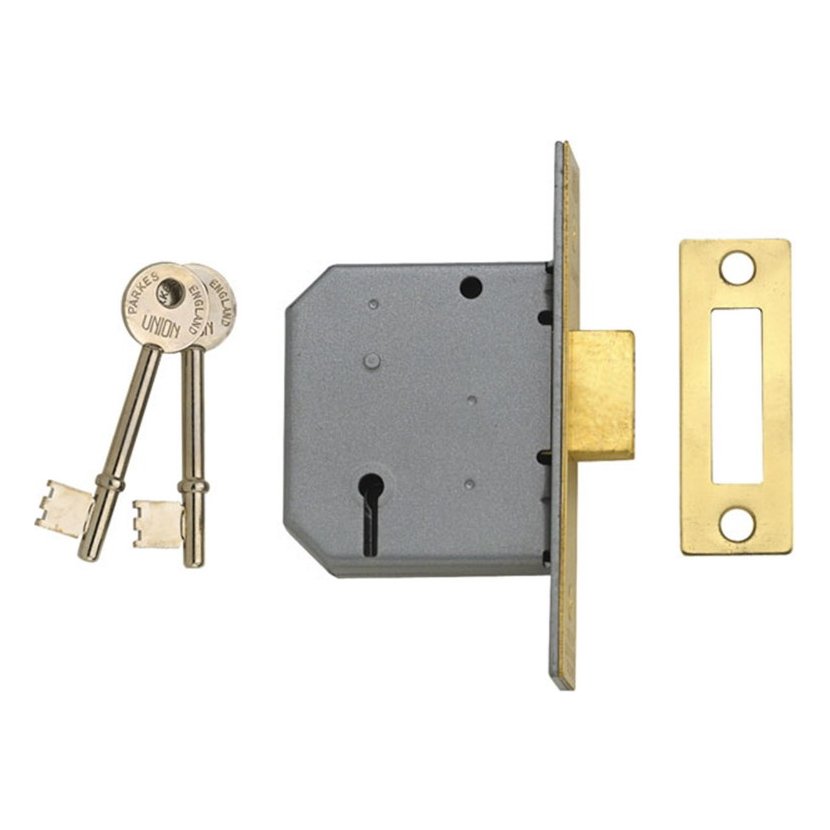

Union 2.5 Inch 3 Lever Deadlock - Polished Brass | DY-2177-63-PL

• 3 lever mortice deadlock for internal timber doors
• 12.5mm anti-saw brass deadbolt with hardened steel rollers
• Compact 65mm x 70mm case - fits standard door stiles
• 44.5mm backset - suits typical internal door preparations
• Non-handed - fits left or right-hung doors
• Polished brass finish with matching strike plate and forend
• Keyed alike with Union 2077, 2157, 2277, and 2477 models
• Suits timber doors up to 54mm thick
• 10-year guarantee
• Warranty: 10 Years

Union 2177 3 Lever Mortice Deadlock in Polished Brass for Timber Doors

Reliable internal door security from a trusted lock maker:

Union has been making locks in Willenhall, the heart of the British lock-making industry, since 1840. The 2177 3 lever mortice deadlock is one of the brand's most established internal door locks, used across residential and light commercial timber door installations for decades. The polished brass finish gives a classic look, with the strike plate finished to match the forend for a consistent appearance.

A compact case with a proven deadbolt mechanism:

The 2177 features a 12.5mm anti-saw deadbolt constructed from brass with hardened steel rollers, making it resistant to sawing attacks through the door stile. The case measures just 65mm wide by 70mm high, making it practical for retrofitting into tighter door stiles where larger cases would not fit. The 44.5mm backset suits standard internal timber door preparations.

Non-handed and compatible across the Union 3 lever range:

The lock is non-handed, meaning it works on both left-hung and right-hung doors without modification, and is suitable for doors up to 54mm thick. It can be ordered keyed alike with Union models 2077, 2157, 2277, and 2477, with 100 standard key differs available in the MM Series (numbered M101M to M200M). A rebate kit (Union 2969, in 13mm, 19mm, or 25mm) is available separately for rebated door frames.

Shop the Garden & Outdoor range from Heavins.ie, with delivery available across Ireland.

Key Features

Anti-saw deadbolt - 12.5mm brass bolt with hardened steel rollers resists sawing.
Compact case - 65mm wide by 70mm high, suitable for standard internal door stiles.
Non-handed - fits left-hung or right-hung timber doors without adjustment.
Polished brass finish - lacquered polished brass body with matching strike plate and forend.
Keyed alike compatible - can be matched with Union 2077, 2157, 2277, and 2477 models.
MM Series key system - 100 standard key differs, M101M to M200M.
EN1634-1 referenced - suitable for use in fire door assemblies (refer to door manufacturer guidance).
10-year guarantee - backed by Union's product guarantee.

Specifications

• Brand: Union
• Model: 2177
• SKU: DY-2177-63-PL
• Finish: Polished Brass (lacquered)
• Lock Type: 3 Lever Mortice Deadlock
• Case Size (W x H): 65mm x 70mm (2.5 inch)
• Backset: 44.5mm
• Deadbolt Throw: 12.5mm
• Forend Length: 120mm
• Forend Width: 25mm
• Strike Plate Length: 73mm
• Strike Plate Width: 25mm
• Door Thickness: Up to 54mm
• Handedness: Non-handed (left or right)
• Door Type: Timber
• Deadbolt Material: Brass with hardened steel rollers
• Forend Material: Stainless steel, silver enamelled
• Security Rating: 4/10
• British Standard (BS3621): No
• CE Marked: No
• UKCA Marked: No
• Keyed Alike Compatible Models: 2077, 2157, 2277, 2477
• Rebate Kit: 2969 (13mm, 19mm, or 25mm, sold separately)
• Weight: 0.525 kg (indicative)
• Warranty: 10 Years

What's Included in the Box

• 1x Union 2177 mortice lock body
• 1x Strike plate (polished brass finish to match forend)
• Fixing screws
• Key escutcheon plates
• Installation instructions
