Eufy NVR Security System S4 Max with 4 Cameras | E8E00321

• 4K Triple-Lens Bullet-PTZ cameras - fixed wide-angle plus 2K PTZ in one unit
• 121.8° field of view from the 4K upper lens
• 8x hybrid zoom - 3x optical, 5x digital via PTZ module
• 360° pan and 0° - 70° tilt on the PTZ module
• Auto-Framing keeps detected subjects centred as they move
• Live Cross-Cam Tracking hands subjects between cameras automatically
• Local AI Agent - 8-core, 6T on-device processing, no subscription needed
• Smart Video Search - keyword-based footage search without cloud
• 2TB HDD pre-installed, upgradeable to 16TB
• 8-channel NVR expandable to 16 channels via PoE switch
• IP65 weatherproof cameras rated to −30°C
• Starlight, Spotlight, and IR night vision modes - range approx. 20 m
• Dimensions: NVR (LxWxH): 380 x 320 x 55 mm | Camera (each): 164 x 147 x 92 mm

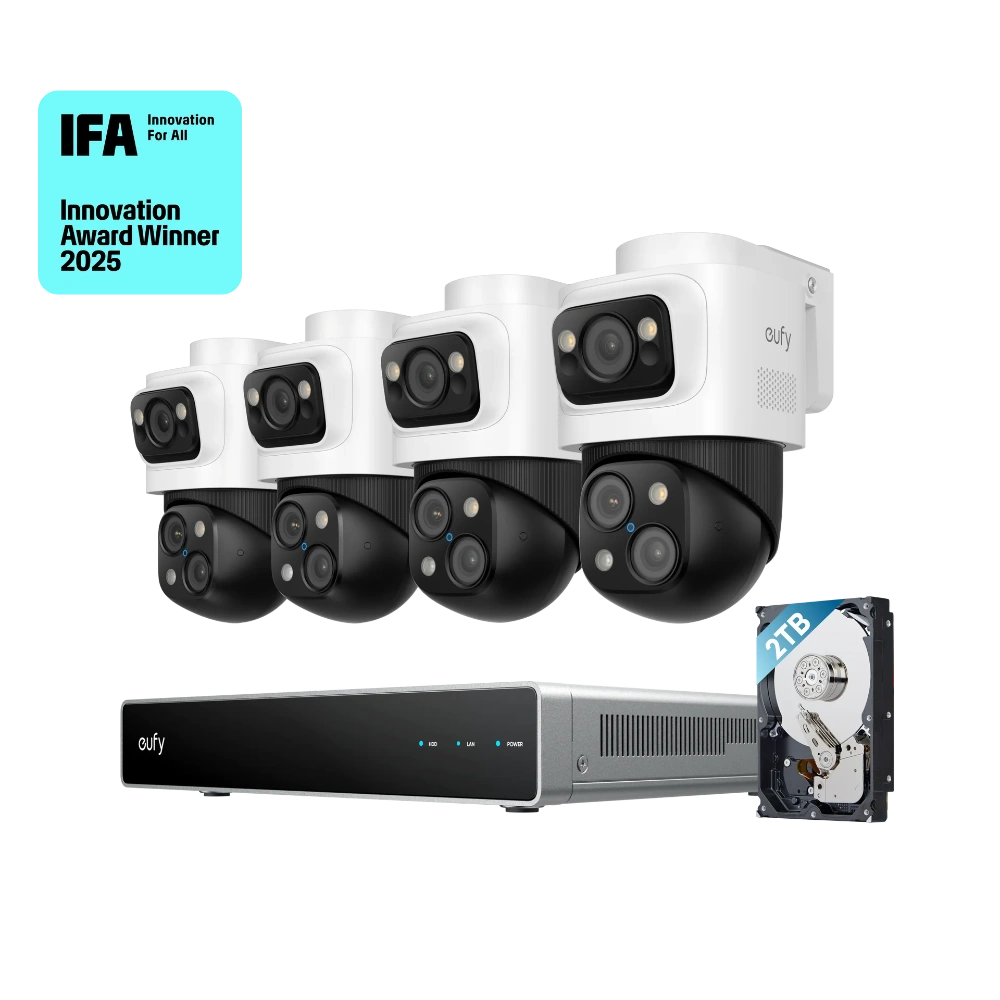

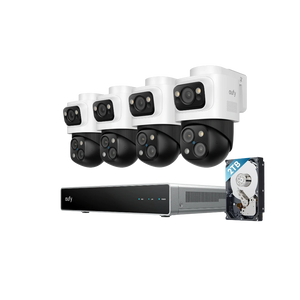

Eufy S4 Max NVR Security System with 4K Triple-Lens Cameras

A wired 4K system built around the Triple-Lens Bullet-PTZ Camera:

The eufy S4 Max is a wired Network Video Recorder system centred on four Triple-Lens Bullet-PTZ Cameras, each combining a fixed 4K wide-angle lens with a 2K PTZ module capable of 8x hybrid zoom, 360° pan, and 0° - 70° tilt. The upper lens delivers a 121.8° field of view for continuous wide coverage, while the lower PTZ module locks onto detected subjects with Auto-Framing, keeping them centred as they move. The eufy NVR S4 Max specs include a pre-installed 2TB HDD recording at up to 4K, expandable to 16TB, with support for 24/7, motion-triggered, or scheduled recording modes.

Local AI Agent with Live Cross-Cam Tracking:

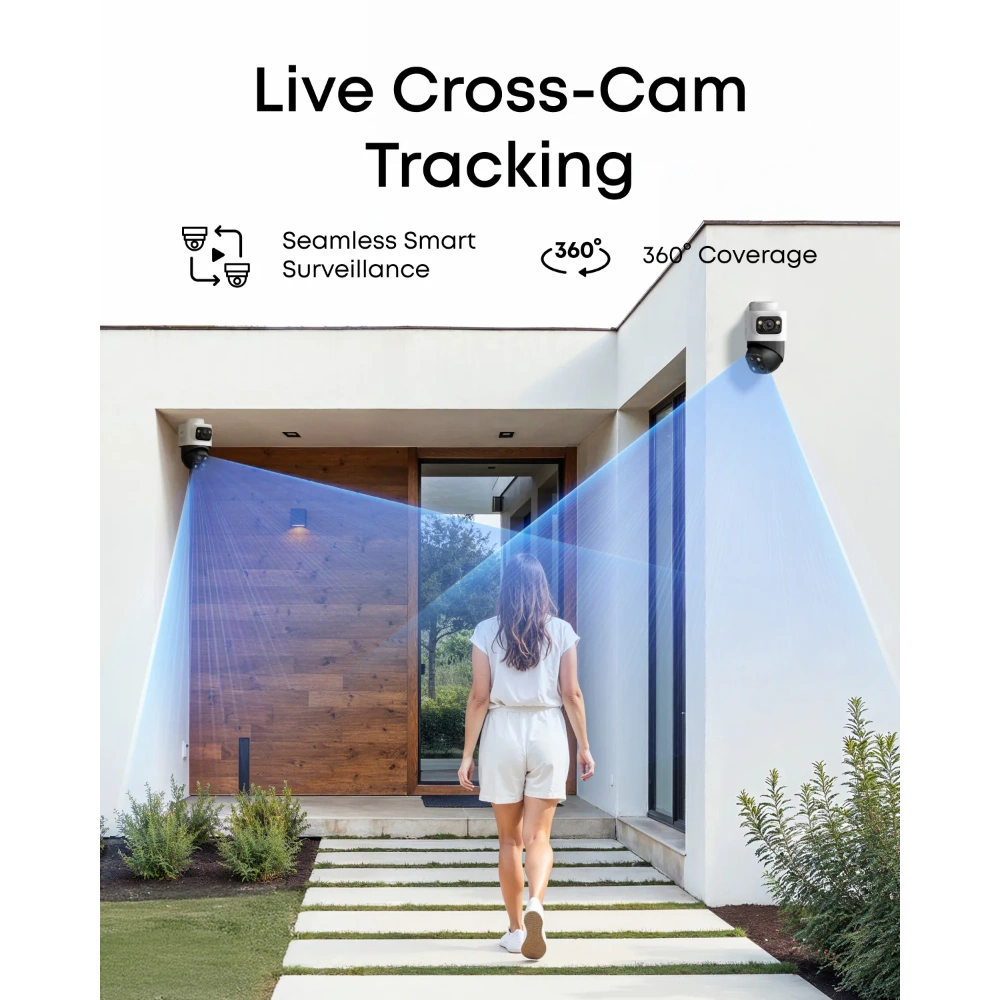

The NVR unit runs a Local AI Agent powered by an 8-core processor with 6T computing capacity, handling person, car, pet, and stranger detection entirely on-device without any cloud subscription. When one camera reaches the edge of its range, Live Cross-Cam Tracking hands the subject off to the next camera automatically, maintaining uninterrupted coverage across the full installation. Smart Video Search lets you search recorded footage by keyword, again without any subscription or cloud service.

Expandable 8-channel NVR with PoE connectivity:

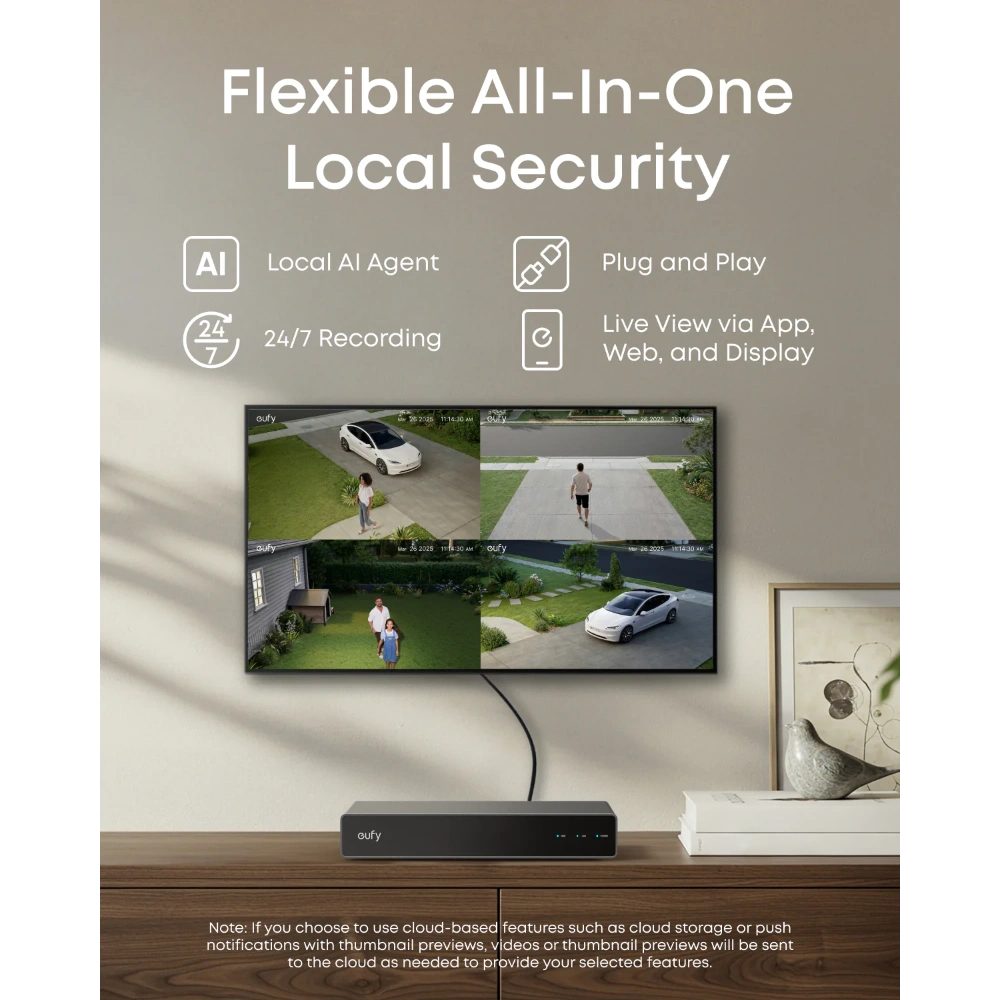

The included NVR provides 8 PoE channels out of the box, expandable to 16 channels via a PoE switch, and accepts Ethernet cables carrying both power and data to each camera over a single run. The unit connects to a monitor or TV via HDMI for local viewing, and the system is also accessible via the eufy app on Android and iOS, or through a web browser on Windows and macOS. Alexa and Google Assistant voice control are supported for hands-free monitoring.

Night vision with three distinct modes:

Each PoE Cam S4 offers Starlight Colour Night Vision, Spotlight Colour Night Vision, and IR Night Vision, with a range of approximately 20 metres. The eufy NVR S4 Max specifications confirm IP65 weatherproofing on all four cameras, with an operating temperature range of −30°C to 45°C. The NVR itself operates between 0°C and 40°C and houses a 3.5-inch drive bay for storage upgrades.

Shop the full Smart Security range from Heavins.ie, with delivery available across Ireland.

Key Features

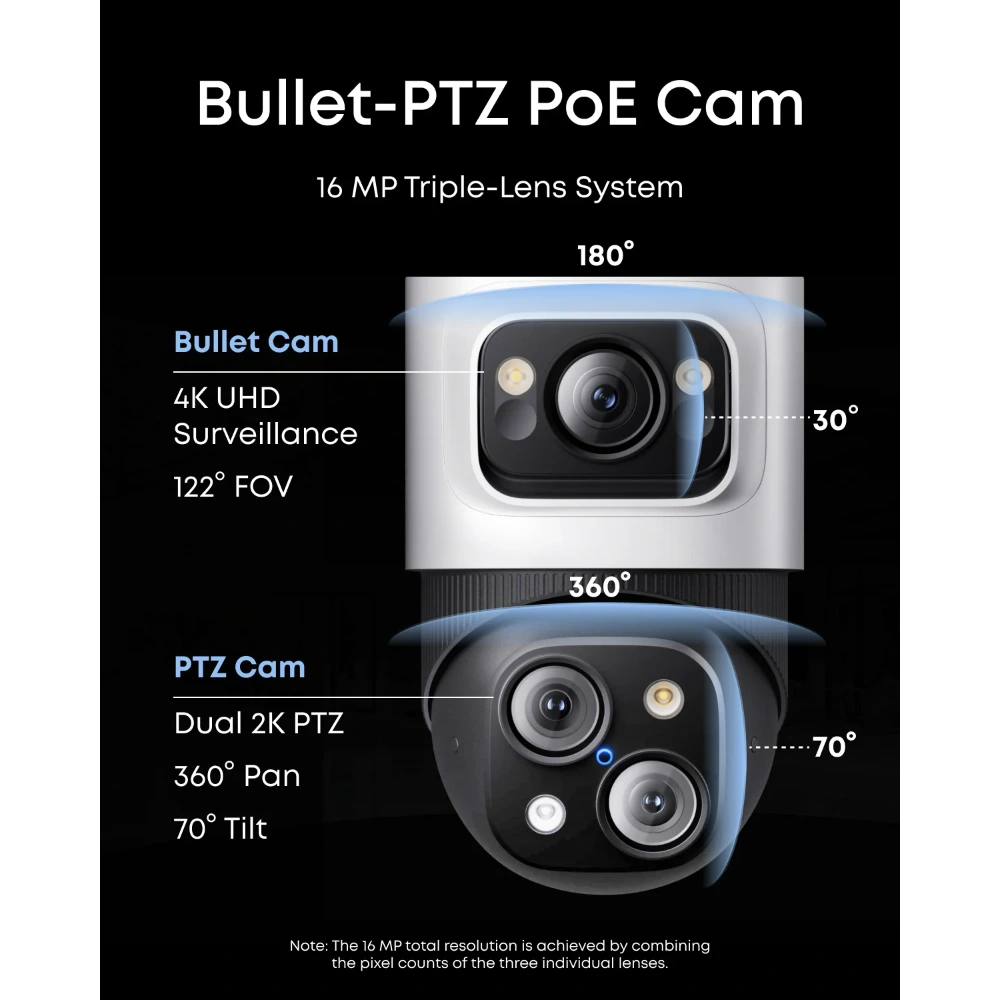

Triple-Lens Bullet-PTZ Camera - each unit combines a fixed 4K upper lens and a 2K PTZ lower module in one housing.
4K wide-angle coverage - 121.8° field of view from the fixed upper lens at full 4K resolution.
8x hybrid zoom - 3x optical plus 5x digital zoom via the PTZ module.
360° pan and 0° - 70° tilt - full horizontal sweep with vertical tilt on the PTZ module.

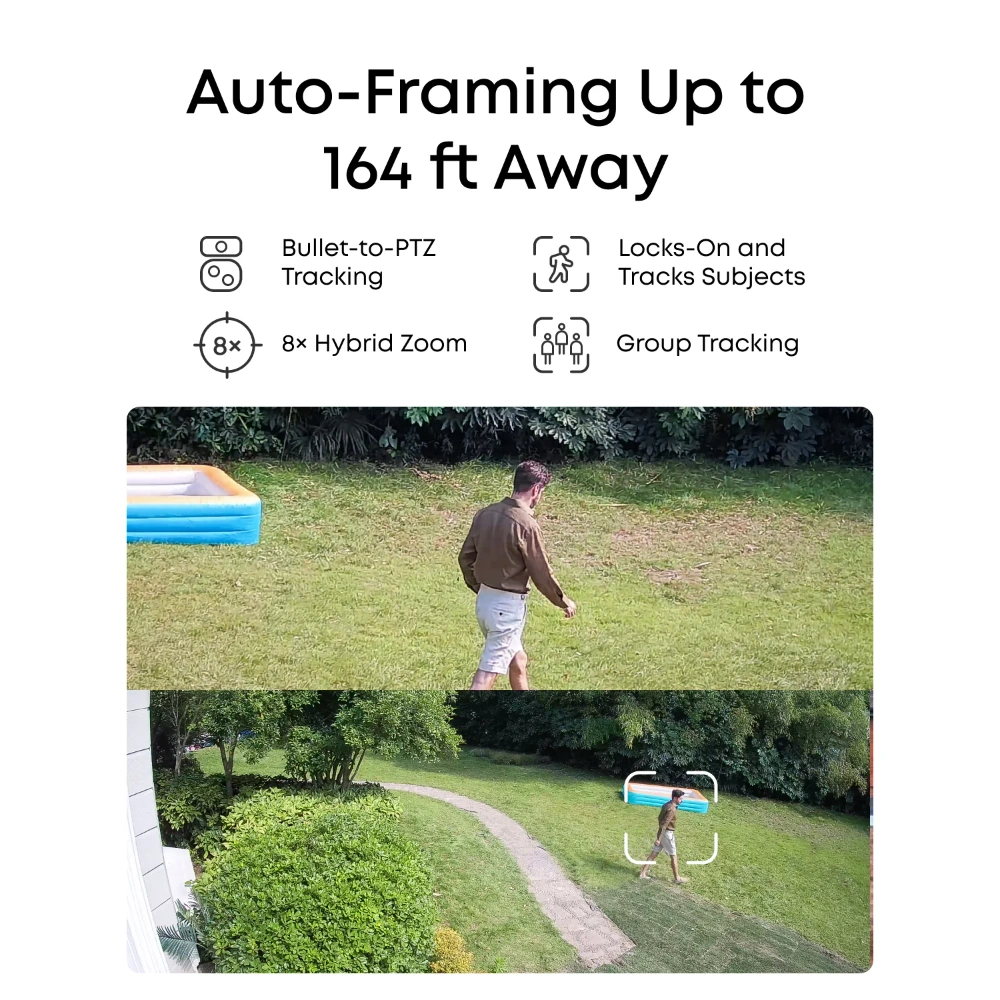

Auto-Framing - PTZ module automatically centres and tracks detected subjects.
Live Cross-Cam Tracking - cameras hand off subject tracking to each other in real time.
Local AI Agent - on-device 8-core, 6T processor detects people, cars, pets, and strangers without cloud dependency.
Smart Video Search - search recorded footage by keyword, no subscription required.
2TB HDD pre-installed - upgradeable to 16TB via the 3.5-inch drive bay.
8-channel NVR expandable to 16 - add cameras later via a PoE switch without replacing the NVR.
Three night vision modes - Starlight Colour Night Vision, Spotlight Colour Night Vision, and IR Night Vision.
IP65 weatherproof cameras - rated for outdoor use from −30°C to 45°C.

Specifications

• System: Eufy NVR Security System S4 Max
• Model: E8E00321
• Cameras included: 4 x PoE Cam S4 (Triple-Lens Bullet-PTZ)
• Camera upper lens resolution: 4K (fixed wide-angle)
• Camera lower lens resolution: 2K (PTZ module)
• Field of view - upper lens: 121.8°
• Field of view - PTZ wide: 117.14°
• Field of view - PTZ telephoto: 43.6°
• PTZ range: 360° horizontal pan, 0° - 70° vertical tilt
• Zoom: 8x hybrid (3x optical, 5x digital)
• Night vision range: approx. 20 m (65 ft)
• Colour Night Vision: Starlight/Spotlight/infrared
• Camera IP rating: IP65
• Camera operating temperature: −30°C to 45°C
• Camera power: PoE (802.3at standard), 12V / 2A
• Camera dimensions (each): 164 x 147 x 92 mm
• NVR channels: 8 (expandable to 16 via PoE switch)
• NVR processor: 8-core, 6T computing power (Local AI Agent)
• NVR storage: 2TB HDD pre-installed (upgradeable to 16TB)
• NVR drive bay: 3.5-inch
• NVR recording modes: 24/7, Motion, Schedule
• NVR dimensions (LxWxH): 380 x 320 x 55 mm
• NVR operating temperature: 0°C to 40°C

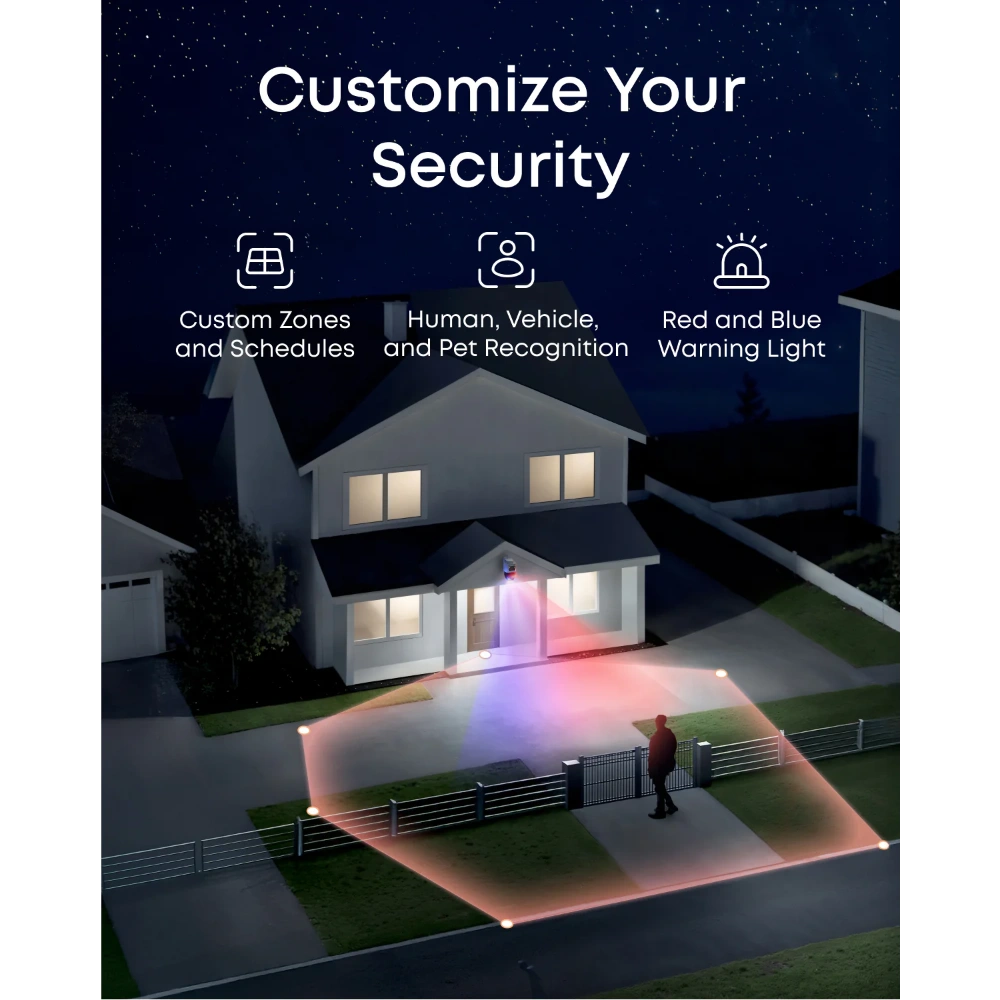

• AI detection: Person, Car, Pet, Stranger
• Frame rate: 15fps / 20fps
• Connectivity: PoE (single Ethernet cable per camera); HDMI output; Android / iOS app; Windows / macOS web access
• Voice assistant: Alexa and Google Assistant
• NVR Compatibility: Compatible with eufy other products
• Power source: Mains (power adapter included)
• Colour: White, black, and silver
• Total shipping weight: 8.60 kg
• Warranty: 3 years

What's Included in the Box

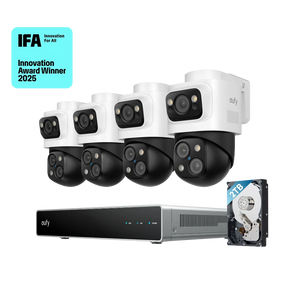

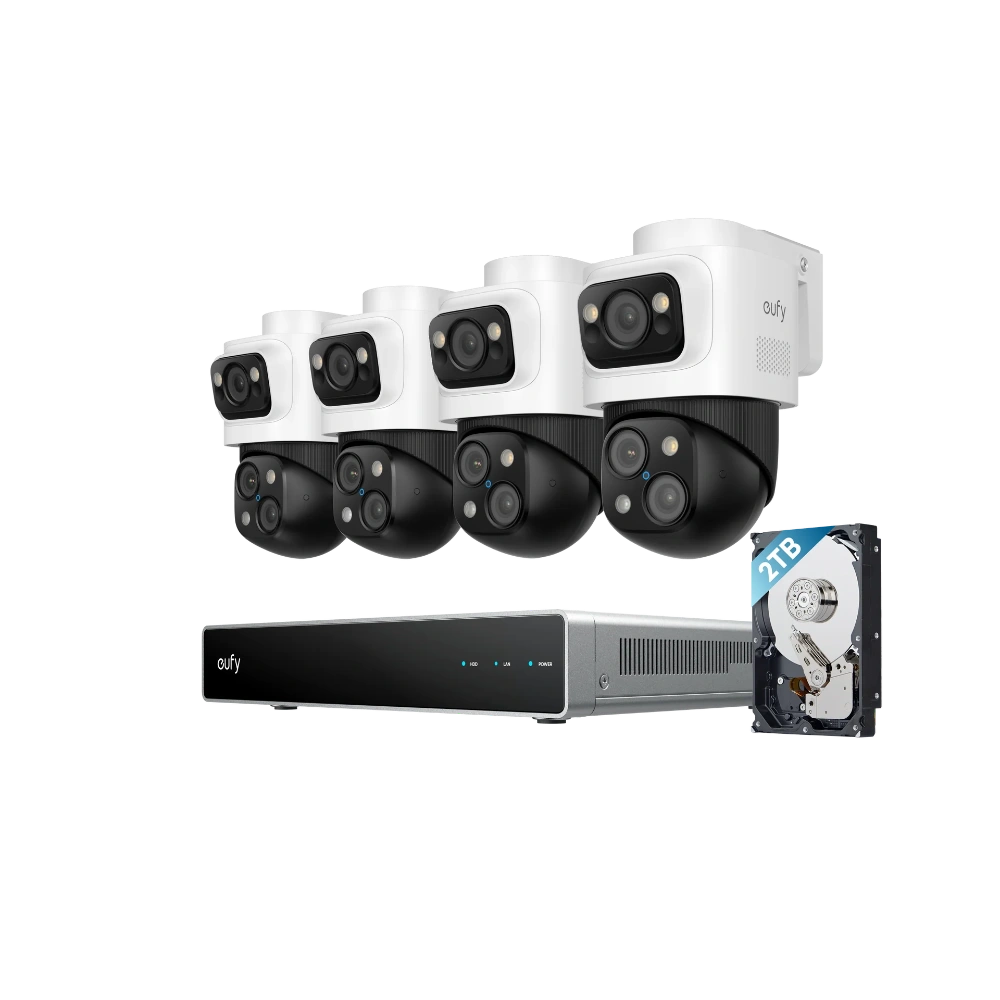

• 1 x Network Video Recorder S4
• 4 x PoE Cam S4 (Triple-Lens Bullet-PTZ)
• 4 x Ethernet Cable (59 ft / 18 m each)
• 1 x Ethernet Cable (3.3 ft / 1 m)
• 1 x HDMI Cable
• 1 x Power Adapter
• 1 x USB Mouse
• 4 x Waterproof Cover Pack
• 4 x Mounting Bracket
• 4 x Screw Pack
• 1 x Quick Start Guide

Setup and Care

Getting started:

Run an Ethernet cable from each PoE Cam S4 to the NVR unit - a single cable per camera carries both power and data. Connect the NVR to a monitor or TV via the included HDMI cable for initial setup, then configure the system using the USB mouse. The eufy app on Android or iOS allows remote viewing once the NVR is connected to your router.

Storage and expansion:

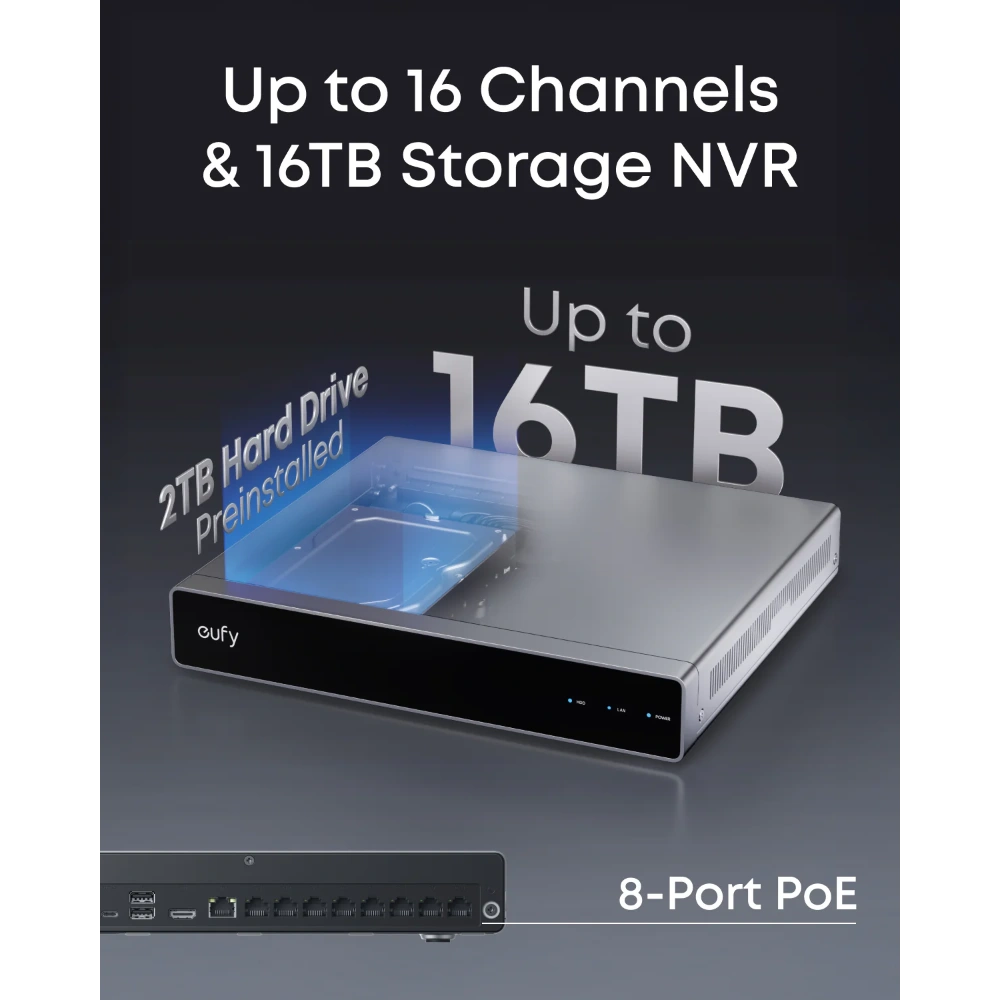

The 2TB HDD is pre-installed and ready to record. When you need more capacity, the 3.5-inch drive bay accepts HDDs up to 16TB. To add more cameras beyond the four included, connect a PoE switch to the NVR to access up to 16 channels in total.

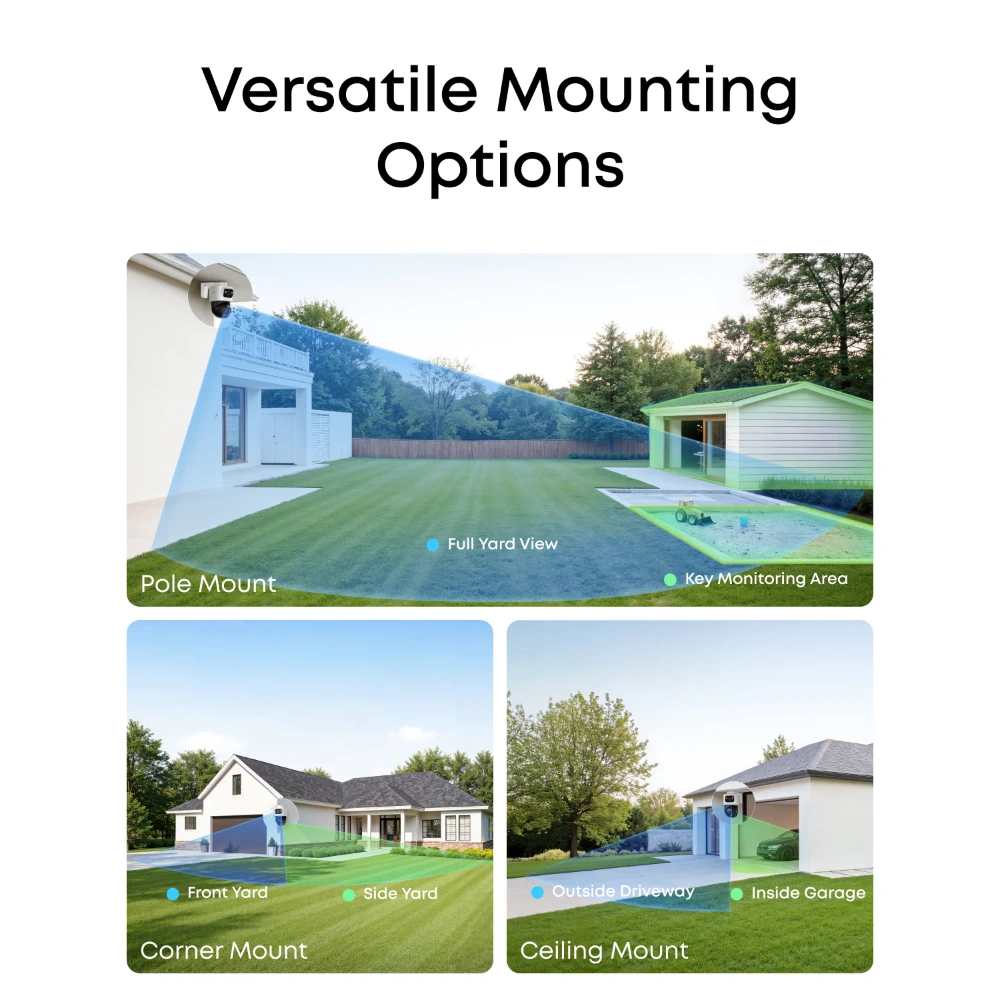

Camera placement:

Mount each PoE Cam S4 using the included bracket and screw pack. Fit the waterproof cover pack over the cable entry point at each camera location. Cameras are rated IP65 and operate down to −30°C, making them suitable for exposed outdoor positions.

Ongoing care:

Wipe camera lenses and housings with a dry, soft cloth to keep image quality sharp. Keep the NVR unit in a well-ventilated indoor space within its 0°C to 40°C operating range. Firmware updates can be applied via the eufy app or the web browser interface.
