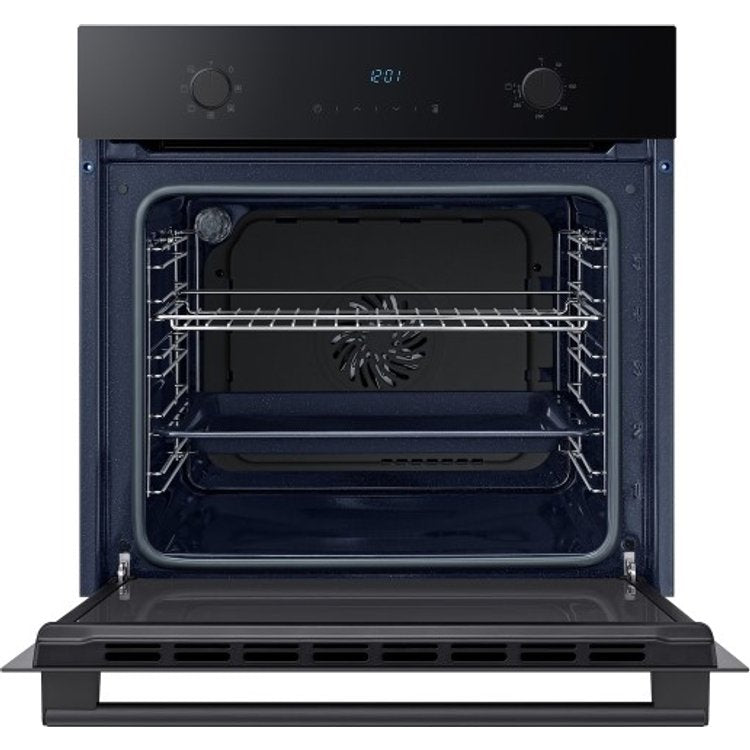

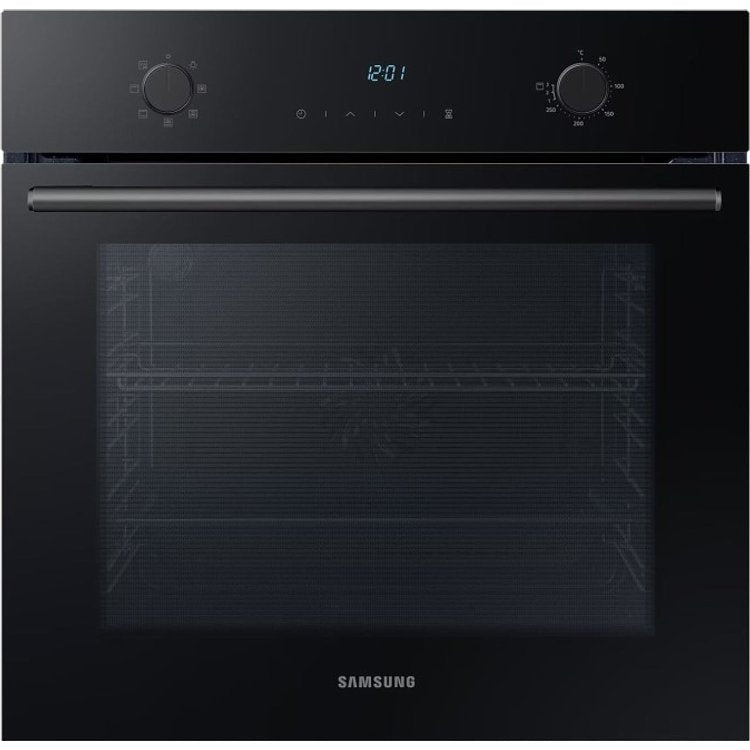

Samsung Series 3 68 Litre Built in Single Oven with Catalytic Clean - Black | NV68A1140BK/EU

• 68-litre cavity - generous space for family roasts, baking, and multi-dish cooking
• True Convection fan system - even heat distribution at a constant temperature on every shelf
• Five cooking functions - convection fan, conventional, grill, bottom heat with fan, top heat
• Catalytic(1D) self-cleaning liner - absorbs and breaks down grease at high temperatures
• Energy class A rated - EEI 95.2 per cavity, 0.80 kWh per cycle in fan mode
• Ice Blue LED display with pop-up retractable dials - clear and uncluttered controls
• Triple-glazed drop-down door - reduced outer glass temperature and improved heat retention
• Child safety lock and surge protection included as standard
• Fast preheat function - less waiting before cooking begins
• Fits standard 60cm built-in housing - cutout 578 x 560 x 549 mm
• Finished in black with black glass door
• 2-year warranty by redemption
• Warranty: 2 Years (by redemption)
• Dimensions: 595 x 595 x 570 mm

Samsung Series 3 Built-in Single Oven with True Convection and Catalytic Clean

A generous 68-litre cavity for everyday family cooking:

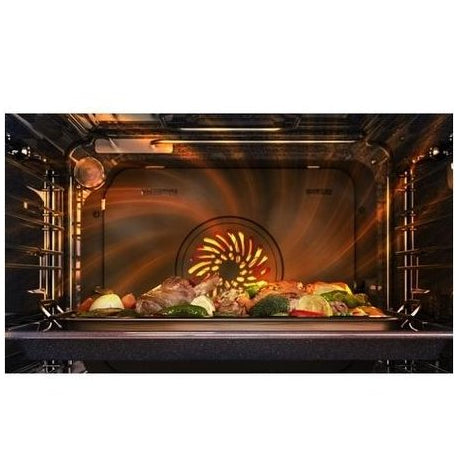

The NV68A1140BK provides 68 litres of usable oven space, giving you room to roast a large joint, bake several trays at once, or cook a full family meal in a single session. Samsung's True Convection system circulates heat from a rear-mounted fan through every corner of the cavity, maintaining a consistent temperature from shelf to shelf so you get even results whether you are baking, roasting, or grilling.

Five cooking functions to suit most everyday tasks:

The oven offers five selectable cooking modes: full convection fan, conventional top-and-bottom heat with fan, large grill, bottom heat with convection, and a single top-heat mode. A fast preheat function reduces the time from cold start to cooking temperature, which is a practical help on busy weekday evenings. The temperature range runs from 50°C to 250°C, covering everything from slow warming to high-heat roasting.

Catalytic cleaning liner keeps maintenance straightforward:

The Catalytic(1D) liner on the oven's interior wall absorbs grease during normal cooking and breaks it down at high temperatures, reducing the build-up that would otherwise require manual scrubbing. The ActivEnamel interior surface is also designed to resist staining between deep cleans. This combination means routine upkeep amounts to a wipe-down rather than a prolonged scrubbing session.

Energy class A with practical safety features built in:

The NV68A1140BK carries an energy efficiency class of A, with an Energy Efficiency Index of 95.2 per cavity and energy consumption of 0.80 kWh per cycle in fan mode. The triple-glazed drop-down door reduces heat transfer to the outer glass surface, and the built-in child safety lock and surge protection add further reassurance in a family kitchen. The Ice Blue LED display and pop-up retractable dials give clear, uncluttered control of temperature, timer, and function selection.

Shop our full Appliances range from Heavins.ie, with delivery and collection options available across Ireland.

Key Features

True Convection - rear fan circulates heat evenly at a constant temperature throughout the 68-litre cavity.
Five Cooking Functions - full convection, top heat with fan, large grill, bottom heat with fan, and single top heat.
Catalytic(1D) Self-Cleaning Liner - absorbs and breaks down grease at high temperatures to reduce manual cleaning.
ActivEnamel Interior - stain-resistant oven cavity lining for easier everyday maintenance.
Energy Class A - EEI 95.2 per cavity; 0.80 kWh per cycle in fan mode.
Ice Blue LED Display - clear backlit readout with pop-up retractable dials for temperature and function control.
Triple-Glazed Drop-Down Door - reduces outer glass surface temperature and improves heat retention.
Child Safety Lock - prevents accidental changes to settings during cooking.
Fast Preheat Function - reduces time from cold start to target cooking temperature.
Surge Protection - built-in protection against electrical surges.
Interior Halogen Lamp - 25 W rear-mounted light illuminates the full cavity during cooking.
Temperature Range - adjustable from 50°C to 250°C for slow warming through to high-heat roasting.

Specifications

• Brand: Samsung
• Model: NV68A1140BK/EU
• Series: Series 3
• Fuel Type: Electric
• Cavity Volume: 68 litres
• Number of Ovens: 1
• Cooking Method: Fan Assisted (True Convection)
• Number of Cooking Functions: 5
• Cleaning Method: Catalytic (1D)
• Interior Material: ActivEnamel
• Temperature Range: 50°C - 250°C
• Display: Ice Blue LED
• Control Type: Pop-up (retractable) dial
• Door Type: Drop-down
• Door Glazing: Triple glazed
• Interior Light: 25 W Halogen (rear-mounted)
• Timer: Yes
• Clock: Yes
• Child Safety Lock: Yes
• Surge Protection: Yes
• Energy Efficiency Class: A
• Energy Efficiency Index (EEI): 95.2
• Energy Consumption (Conventional Mode): 0.99 kWh/cycle
• Energy Consumption (Fan Mode): 0.80 kWh/cycle
• Power Rating: 2,600 - 2,800 W
• Supply Voltage: 230 - 240 V ~ 50 Hz
• Colour: Black
• Dimensions (HxWxD): 595 x 595 x 570 mm
• Required Cutout (HxWxD): 578 x 560 x 549 mm
• Net Weight: 31.4 kg
• Warranty: 2 Years (by redemption)

What's Included in the Box

• 1 x Samsung NV68A1140BK Built-in Single Oven
• 1 x Square Baking Tray
• 1 x Square Wire Rack

Setup and Care

Installation:

The NV68A1140BK is designed for installation into a standard 60cm built-in housing. The required cutout dimensions are 578 mm (H) x 560 mm (W) x 549 mm (D). Installation should be carried out by a qualified electrician, as the oven requires a hardwired 230-240 V ~ 50 Hz supply rated to handle the 2,600-2,800 W connected load.

First Use:

Before cooking for the first time, run the oven empty at 250°C for approximately 30 minutes to burn off any manufacturing residues. Ensure the kitchen is well ventilated during this initial heat run. Remove all packaging materials and any protective film from the door glass and control panel before switching on.

Everyday Cleaning:

Allow the oven to cool fully before wiping the interior with a damp cloth. The Catalytic(1D) liner breaks down grease during normal cooking cycles, so routine cleaning of the lined surfaces requires only a light wipe. The enamel base and door glass can be cleaned with a soft cloth and a mild, non-abrasive cleaning solution.

Long-Term Care:

Remove the wire rack and baking tray after each use and wash them separately with warm soapy water. Check the door seal periodically to confirm it remains intact and seated correctly. Samsung's 2-year warranty (by redemption) covers manufacturing defects; retain your proof of purchase and register the product with Samsung to activate the warranty period.
