Bosch Series 4 60cm Built Under Cooker Hood - Brushed Steel | DUL63CC50B

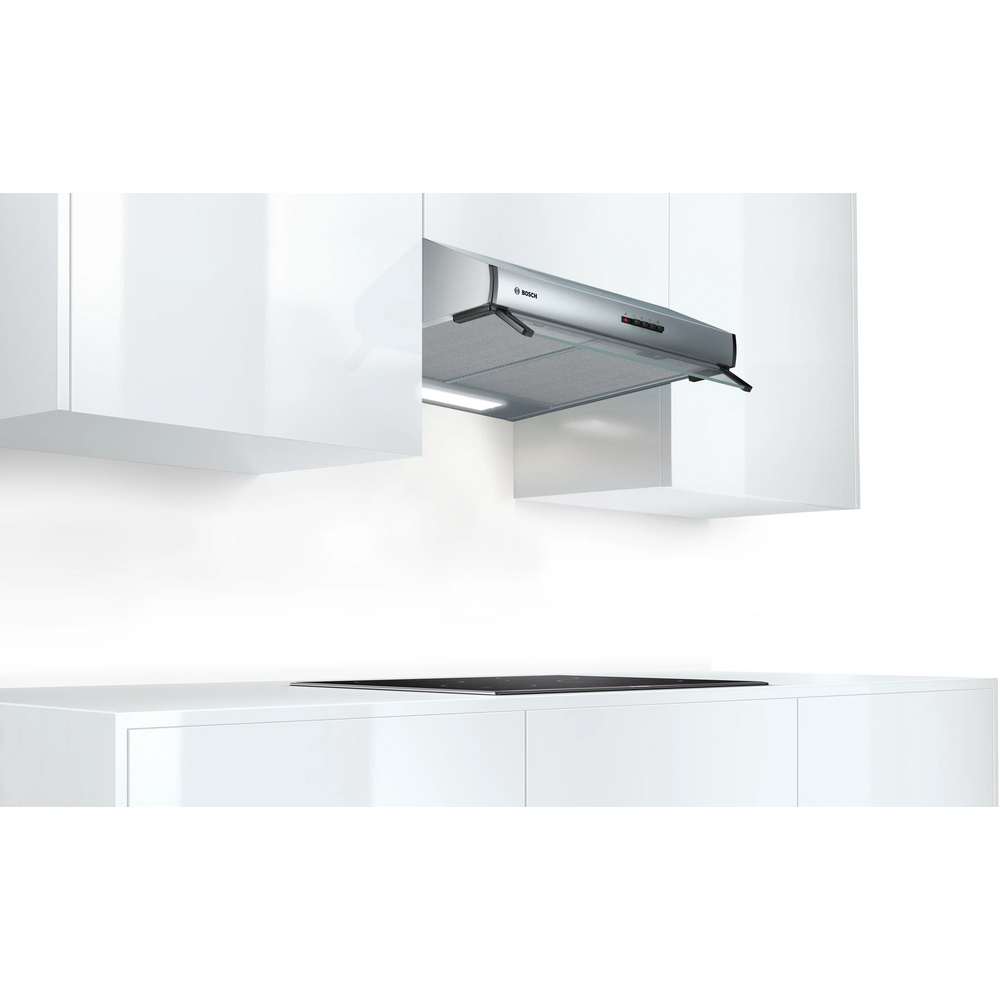

• Fits neatly under an existing kitchen cabinet - no overhead chimney required
• 350 m³/h extraction rate clears steam and cooking odours efficiently
• 3 speed settings - choose from low, medium, or high extraction

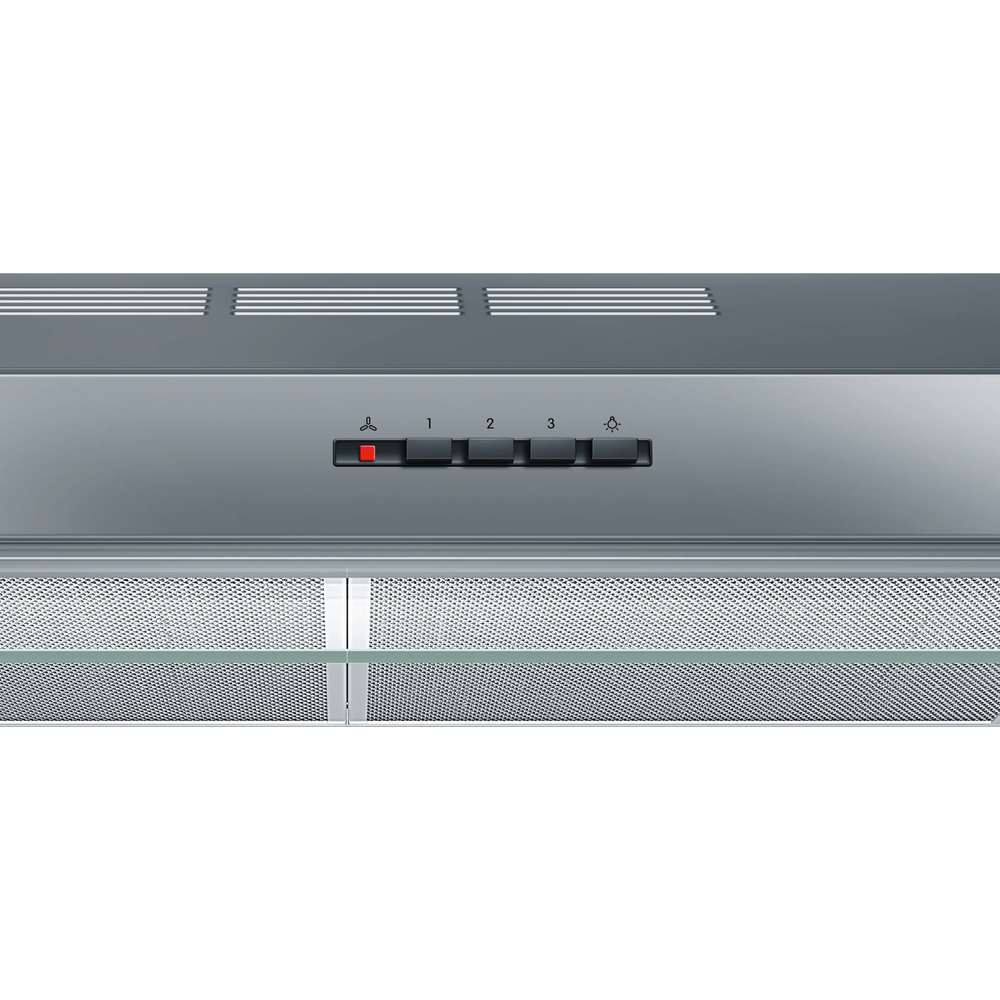

• Push-button mechanical controls - simple and reliable everyday operation
• 2 x 4W LED lights illuminate the hob at 3000 K for clear visibility

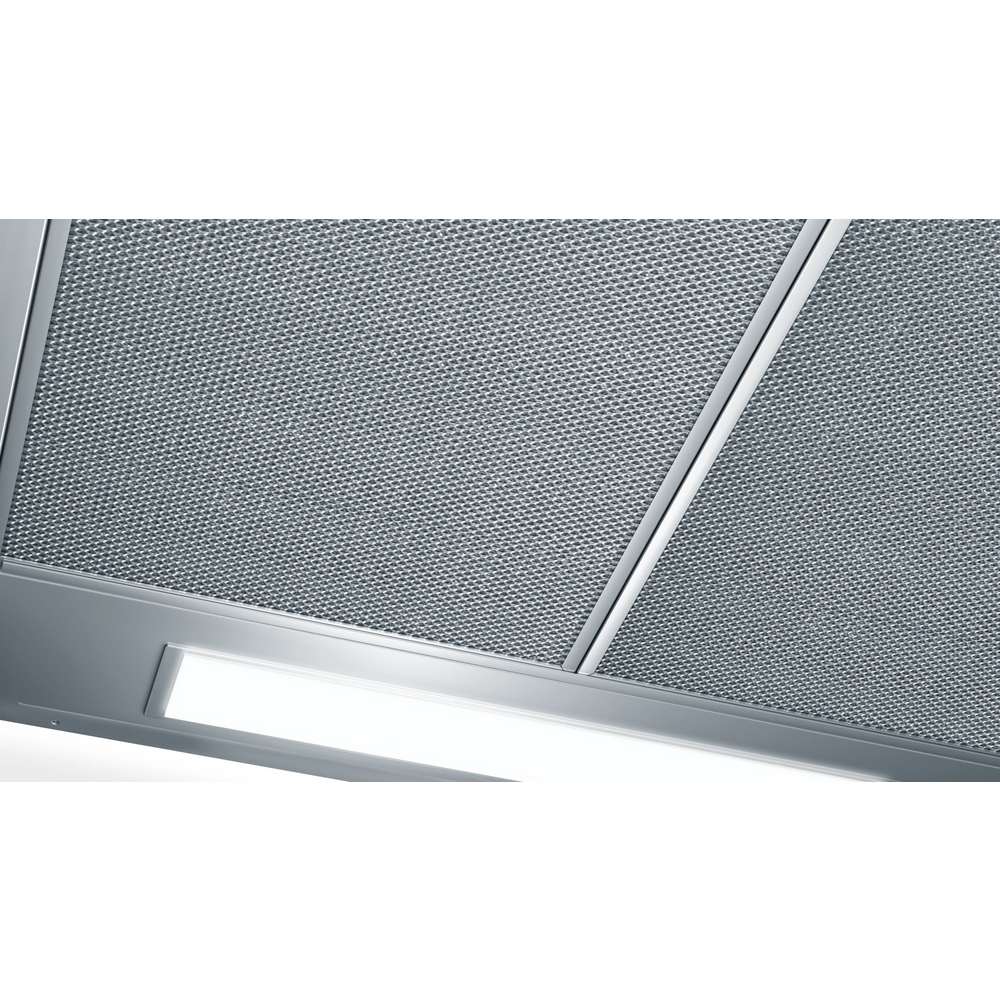

• Two dishwasher-safe aluminium mesh grease filters - clean monthly
• Works in both ducted and recirculating modes - adapts to your kitchen layout
• Noise level drops to approx. 56 dB on the lowest speed setting
• 120/100 mm exhaust connection fits standard ducting sizes
• 2-year manufacturer's warranty included
• Warranty: 2 Years
• Dimensions: 150 x 600 x 482 mm

Bosch Series 4 60cm Built Under Cooker Hood for a Cleaner Kitchen

Effective extraction where you need it:

The Bosch DUL63CC50B fits neatly underneath an existing kitchen cabinet, drawing cooking steam, grease, and odours away from the hob at up to 350 m³/h in ducted mode or up to 110 m³/h in recirculating mode. Three speed settings let you match the extraction level to what you are cooking, from a gentle simmer to a full roast.

Straightforward controls and bright LED lighting:

Push-button mechanical controls keep operation simple - no touchscreens or apps required. Two 4W LED lights at 3000 K illuminate the hob area clearly, making it easier to keep an eye on what is in the pan. Illuminance is rated at 45 lx, giving a consistent white light across the cooking surface.

Easy maintenance with dishwasher-safe filters:

Two removable aluminium mesh grease filter cassettes catch grease particles before they reach the motor. Both filters are dishwasher safe and should be cleaned roughly once a month. For recirculating operation, a Bosch DHZ2701 carbon odour filter is required and should be replaced every three to twelve months - this is sold separately.

Shop the full Appliances range from Heavins.ie, serving customers across Ireland.

Key Features

350 m³/h Extraction Rate - removes cooking steam and odours efficiently in ducted mode.
3 Speed Settings - adjust extraction intensity to suit the level of cooking.
Push-Button Mechanical Controls - simple and reliable, no digital interface required.
2 x 4W LED Lighting - bright 3000 K illumination at 45 lx over the hob.
Dishwasher-Safe Aluminium Mesh Filters - two removable cassettes for easy monthly cleaning.
Convertible Operation - suitable for both ducted exhaust and recirculating modes.
72 dB(A) Maximum Noise Level - reduces to approximately 56 dB on the lowest speed setting.
120/100 mm Exhaust Connection - compatible with standard ducting sizes.
Energy Efficiency Class D - annual energy consumption of 93 kWh.
CE Certified - meets European safety and quality standards.

Specifications

• Brand: Bosch
• Model: DUL63CC50B
• Series: Series 4
• Type: Built Under Canopy Cooker Hood
• Colour/Finish: Brushed Steel
• Width: 60 cm
• Dimensions (HxWxD): 150 x 600 x 482 mm
• Max Extraction Rate (Ducted): 350 m³/h
• Max Recirculation Rate: 110 m³/h
• Number of Speed Settings: 3
• Control Type: Mechanical push-button
• Noise Level (max speed): 72 dB(A) re 1 pW
• Noise Level (low speed): approx. 56 dB(A)
• Lighting: 2 x 4W LED, 3000 K, 45 lx
• Grease Filter: 2 x dishwasher-safe aluminium mesh cassettes
• Grease Filtering Efficiency Class: C
• Carbon Filter (recirculating): DHZ2701 - sold separately
• Extraction Type: Convertible (ducted or recirculating)
• Exhaust Connection Diameter: 120 / 100 mm
• Minimum Distance Above Hob: 650 mm
• Motor Power: 138 W
• Connected Load: 146 W
• Voltage: 220-240 V / 50 Hz
• Cord Length: 1.45 m
• Energy Efficiency Class: D (scale A+++ to D)
• Annual Energy Consumption: 93 kWh
• Fluid Dynamic Efficiency Class: E
• Lighting Efficiency Class: E
• Number of Motors: 1
• Certification: CE
• Country of Origin: Türkiye
• EAN: 4242002968513
• Warranty: 2 Years

What's Included in the Box

• Bosch DUL63CC50B Built Under Cooker Hood
• User manual
• Note: Carbon odour filter (DHZ2701) for recirculating mode is sold separately

Setup and Care

Installation:

The DUL63CC50B is designed to fit under a standard kitchen wall cabinet. Mount the hood so that there is a minimum clearance of 650 mm between the bottom of the hood and the top of the hob surface, for both gas and electric hobs. The exhaust connects to standard 120 mm or 100 mm ducting for vented operation.

Switching to Recirculating Mode:

If ducting is not possible, the hood can be converted to recirculate air back into the kitchen. A Bosch DHZ2701 carbon odour filter must be fitted for recirculating operation and is available as a separate accessory. Replace the carbon filter every three to twelve months depending on frequency of use.

Cleaning the Grease Filters:

Remove the two aluminium mesh grease filter cassettes and clean them in the dishwasher or by hand approximately once a month. Regular cleaning keeps extraction performance at its best and reduces the risk of grease build-up inside the hood.

General Care:

Wipe the brushed steel exterior with a soft damp cloth and a mild detergent if needed. Avoid abrasive cleaners or scouring pads, which can mark the finish. Register your appliance at www.bosch-home.co.uk/customer-service/warranty to activate the 2-year manufacturer's warranty.
