Dewalt DCE590N Grabo Suction Lifter for Tile and Glass 18V Bare Unit | DEWDCE590N

• Lifts up to 120 kg horizontal and 60 kg vertical
• Works on glass, tile, timber, concrete, plasterboard, and stone
• Electric vacuum pump automatically maintains suction pressure
• Audible and visual alarm for low suction or low battery
• LED display shows pressure (bar/PSI), suction level, and battery charge
• Unique foam seal grips textured and semi-porous surfaces
• Compatible with all DeWalt 18V XR lithium-ion batteries
• Bare unit - battery and charger not included
• Includes seal, seal guard, spare filters, and sunshade attachment
• Replaceable seal available separately: DZE591-XJ
• Warranty: 1 Year (extendable to 3 years on registration)
• Dimensions: 160 x 310 x 200 mm

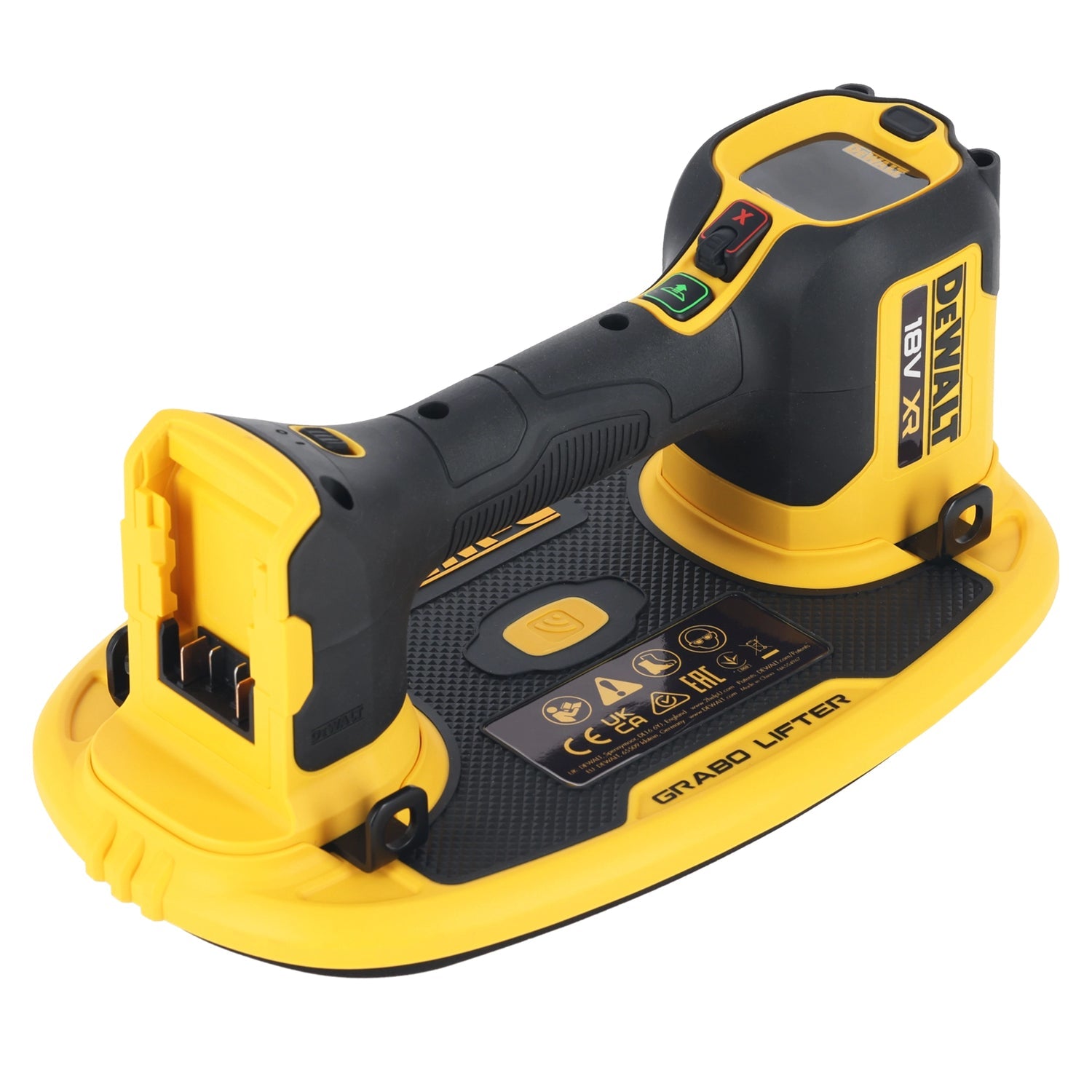

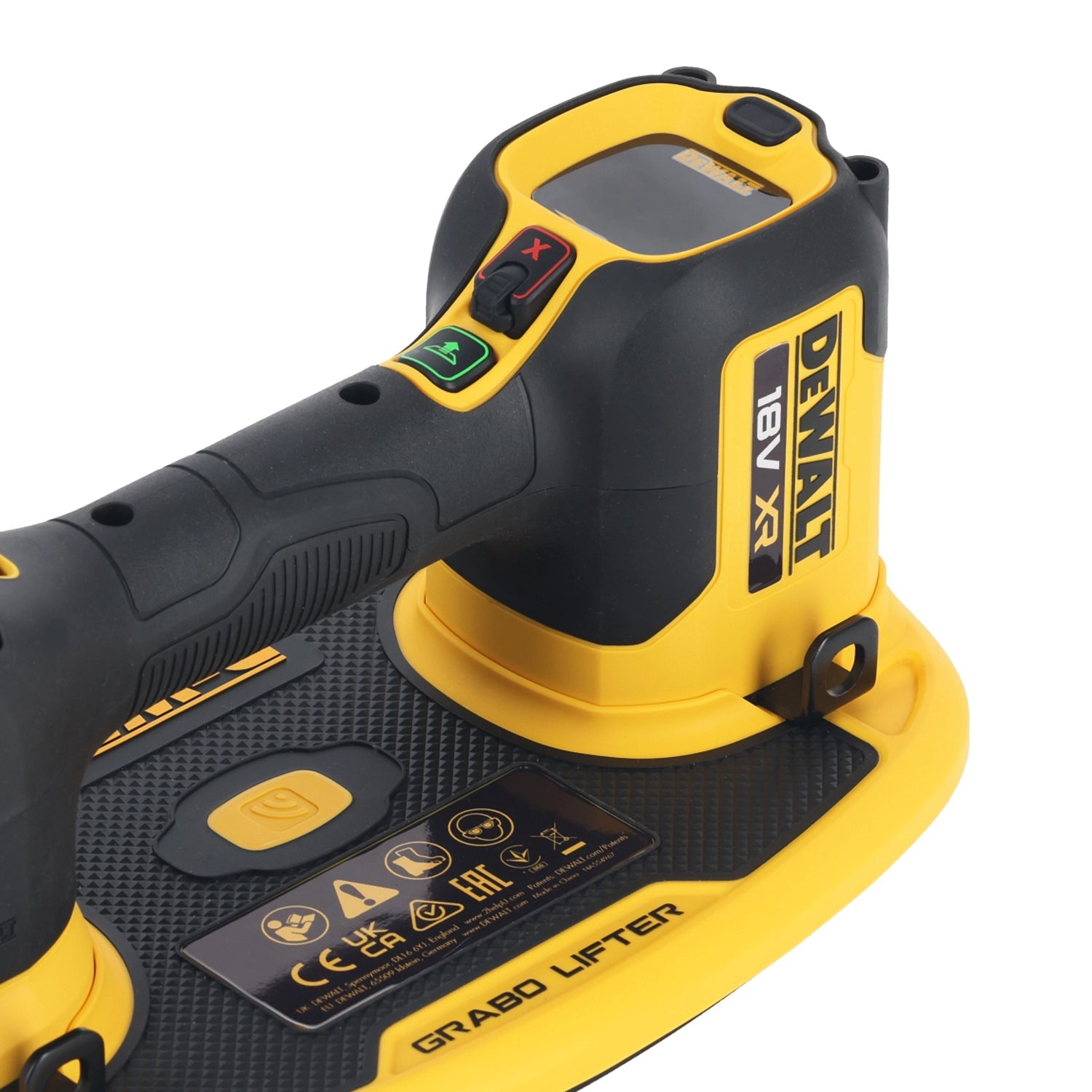

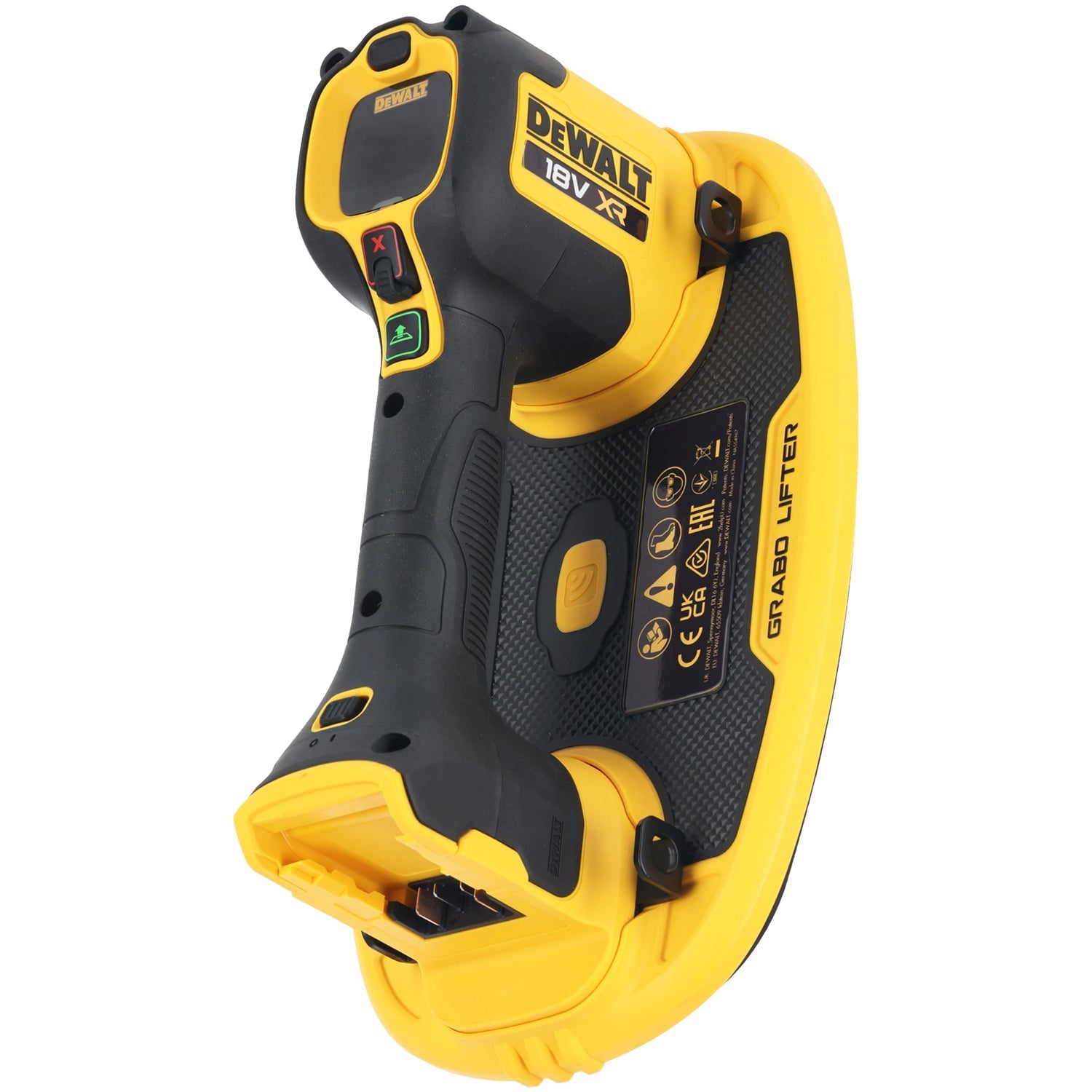

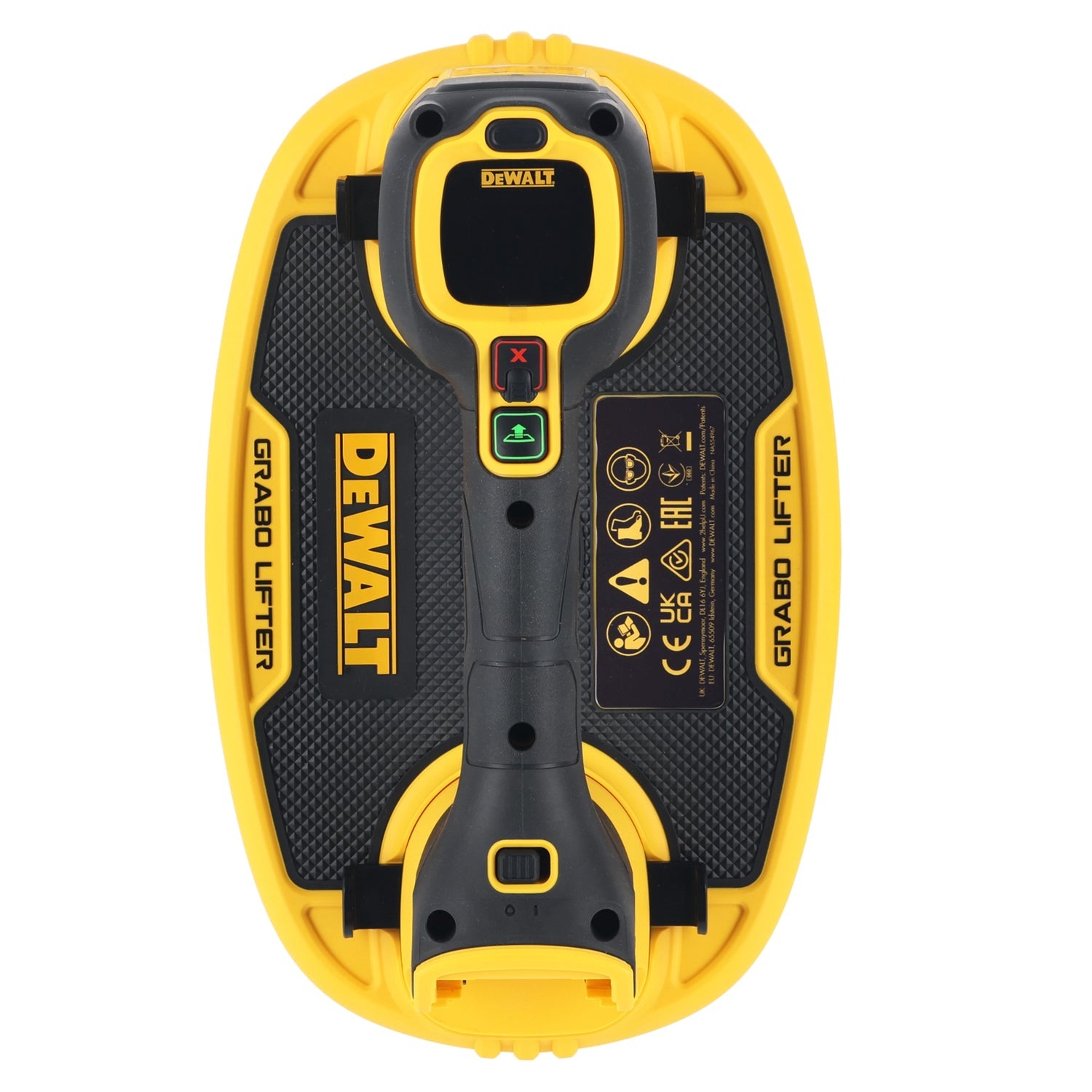

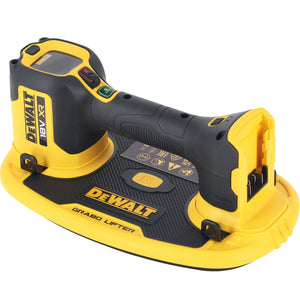

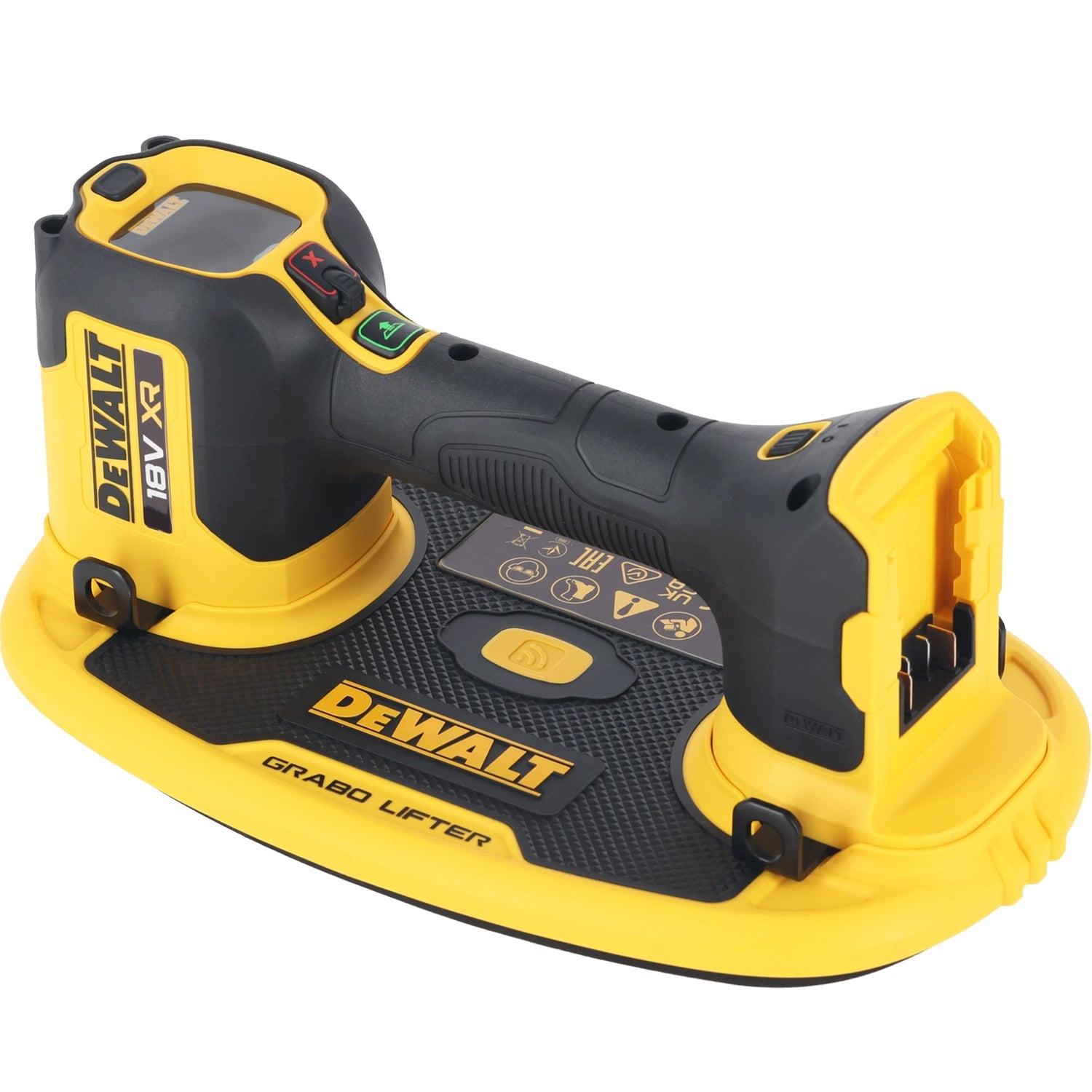

DeWalt DCE590N 18V XR GRABO cordless suction lifter - bare unit, 120 kg capacity for glass, tile, timber, and stone

Cordless vacuum lifting up to 120 kg:

The DCE590N uses an integrated electric vacuum pump to lift and carry construction materials weighing up to 120 kg on horizontal surfaces and 60 kg on vertical surfaces. It replaces passive suction cups by actively generating and maintaining vacuum pressure, giving a secure hold on materials that traditional cups cannot grip.

Works on smooth, semi-porous, and textured surfaces:

The unique foam seal allows the DCE590N to grip textured, semi-porous, and irregular surfaces including paving slabs, natural stone, timber, plasterboard, concrete, sheet metal, and glass. This extends its usefulness well beyond glazing work into tiling, flooring, roofing, and general construction material handling.

Automatic pressure maintenance and safety alerts:

A built-in pressure sensor continuously monitors vacuum levels and automatically restarts the pump to restore suction if pressure drops during a lift. An audible and visual alarm warns the operator when suction pressure or battery charge reaches a minimum safe level, reducing the risk of unexpected release.

LED display with real-time grip data:

The digital LED display shows current pressure in bar or PSI, suction level, and battery charge at a glance. The smart gauge also indicates the maximum safe lifting weight in kilograms or pounds based on current suction, giving the operator clear, actionable feedback on every lift.

Runs on the DeWalt 18V XR platform:

The DCE590N is compatible with all DeWalt 18V XR lithium-ion batteries - the same batteries used across the wider XR range of drills, saws, and grinders. Supplied as a bare unit, it is aimed at professionals already on the DeWalt 18V platform who can use existing batteries. The replaceable seal is available separately as DZE591-XJ.

Shop DeWalt tools from Heavins.ie:

Heavins stocks a broad range of DeWalt power tools and accessories for trade and site use. In stock with fast nationwide delivery across Ireland. Browse our full Tools & DIY range for complete site and workshop solutions.

Key Features

Lifting capacity - up to 120 kg horizontal, 60 kg vertical.
Surface compatibility - smooth, semi-porous, and textured materials including glass, tile, timber, concrete, and plasterboard.
Automatic pressure maintenance - built-in sensor restores vacuum if pressure drops during a lift.
Audible and visual alarm - alerts when suction pressure or battery charge is low.
LED display - shows pressure in bar or PSI, suction level, battery charge, and safe lift weight in kg or lbs.

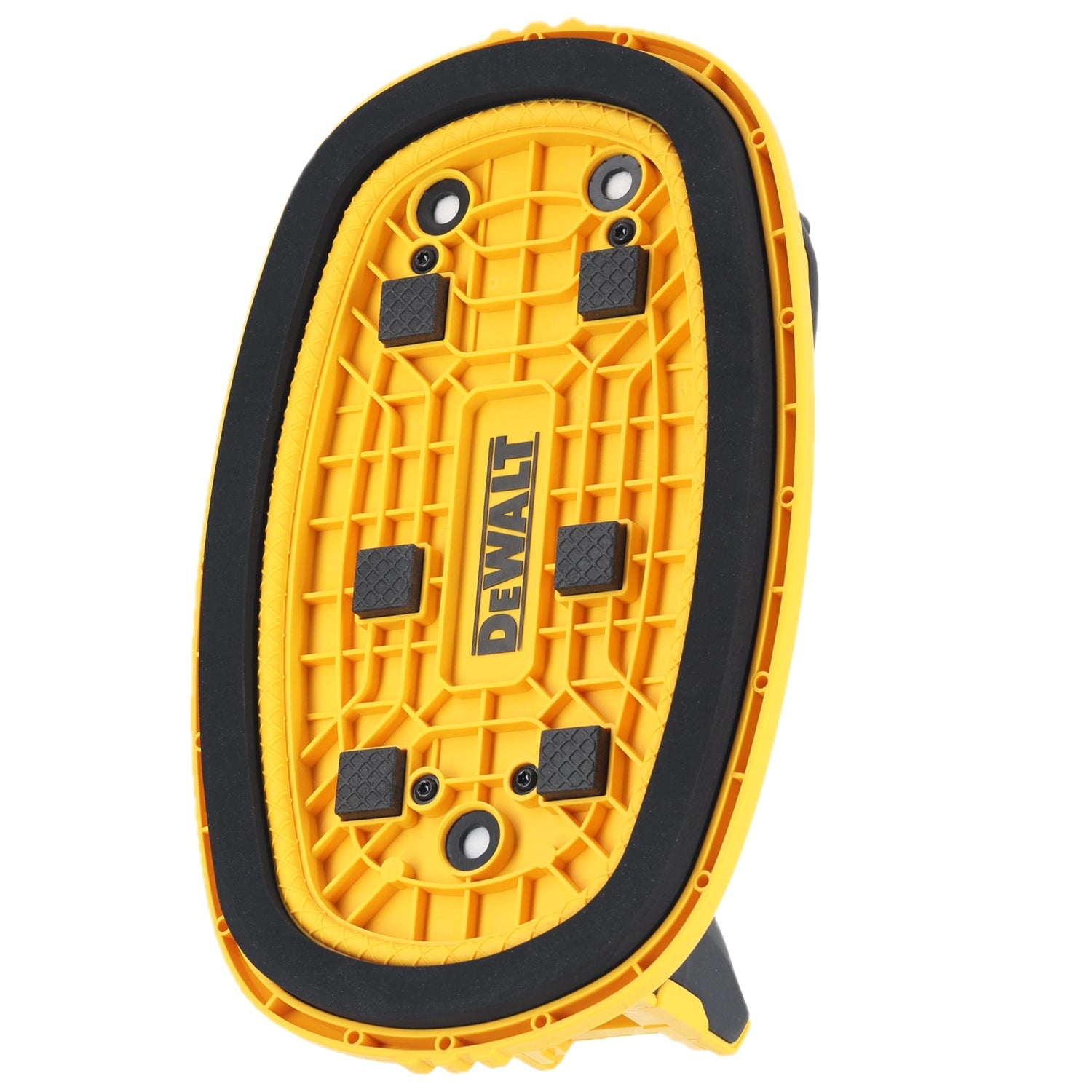

GRABO foam seal - unique seal grips textured and semi-porous surfaces that standard suction cups cannot hold.
18V XR compatibility - works with all DeWalt 18V XR lithium-ion batteries.
Bare unit supplied - battery and charger not included.
Replaceable seal - spare seal available as DZE591-XJ.
CE marked - complies with 2006/42/EC, EN ISO 12100:2010, and EN 62841-1:2015 + A11:2022.

Specifications

• Brand: DeWalt
• Model: DCE590N-XJ
• Voltage: 18V
• Battery Platform: DeWalt 18V XR Li-Ion
• Max Lifting Capacity (Horizontal): 120 kg
• Max Lifting Capacity (Vertical): 60 kg
• Display Type: LED
• Brushless Motor: No
• Automatic Shutoff: Yes
• CE Mark: Yes
• Dimensions (HxWxD): 160 x 310 x 200 mm
• Weight: 1.5 kg
• Battery Included: No
• Charger Included: No
• EAN: 5054905322489
• Warranty: 1 Year (extendable to 3 years on registration at mydewalt.dewalt.co.uk within 28 days of purchase)

What's Included in the Box

• 1 x DCE590N 18V XR Cordless GRABO Suction Lifter (bare unit)
• 1 x Seal
• 1 x Seal Guard
• 1 x Spare Filters Set
• 1 x Sunshade Attachment

Setup and Care

Getting started:

Fit a compatible DeWalt 18V XR lithium-ion battery before use. Ensure the foam seal is correctly seated and free from damage before placing the lifter on any material. The LED display will confirm vacuum pressure and battery level once the pump is activated.

Choosing the right surface:

The DCE590N grips smooth surfaces such as glass and glazed tile, as well as semi-porous and textured materials including natural stone, timber, and plasterboard. Always check that the surface area is sufficient to allow full contact with the seal before lifting.

Maintaining suction performance:

Inspect the foam seal regularly and replace it when wear is visible - the replacement seal (DZE591-XJ) is available separately. Clean the filter set periodically to maintain pump efficiency, and store the lifter in a dry location away from dust and debris.

Battery and charger care:

Charge DeWalt 18V XR batteries according to the charger manufacturer's instructions and store them at room temperature. For warranty registration and extended cover, register the tool within 28 days of purchase at mydewalt.dewalt.co.uk.
