Dewalt DCMCS565N XR Brushless Chainsaw 18V Bare Unit | DEWDCMCS565N

• XR Brushless Motor - maximises efficiency and battery runtime
• Up to 100 cuts per charge - using a compatible 5Ah battery
• 300mm TRI-LINK bar and chain - cuts up to 250mm diameter
• Chain speed: 7.3 m/s - suited to pruning, logging, and felling
• Auto-oiling with visible gauge - 0.14L tank, no guesswork
• Chain brake stops in under one second - kickback protection
• Tool-free bar and chain replacement - less downtime on site
• Bumper spikes for grip - safer, more controlled cuts
• On-board tool storage - wrench and file kept on the saw
• Body only - fits any DeWalt 18V XR Li-Ion battery
• Warranty: 1 Year standard; 3 Years upon registration at dewalt.co.uk within 28 days of purchase

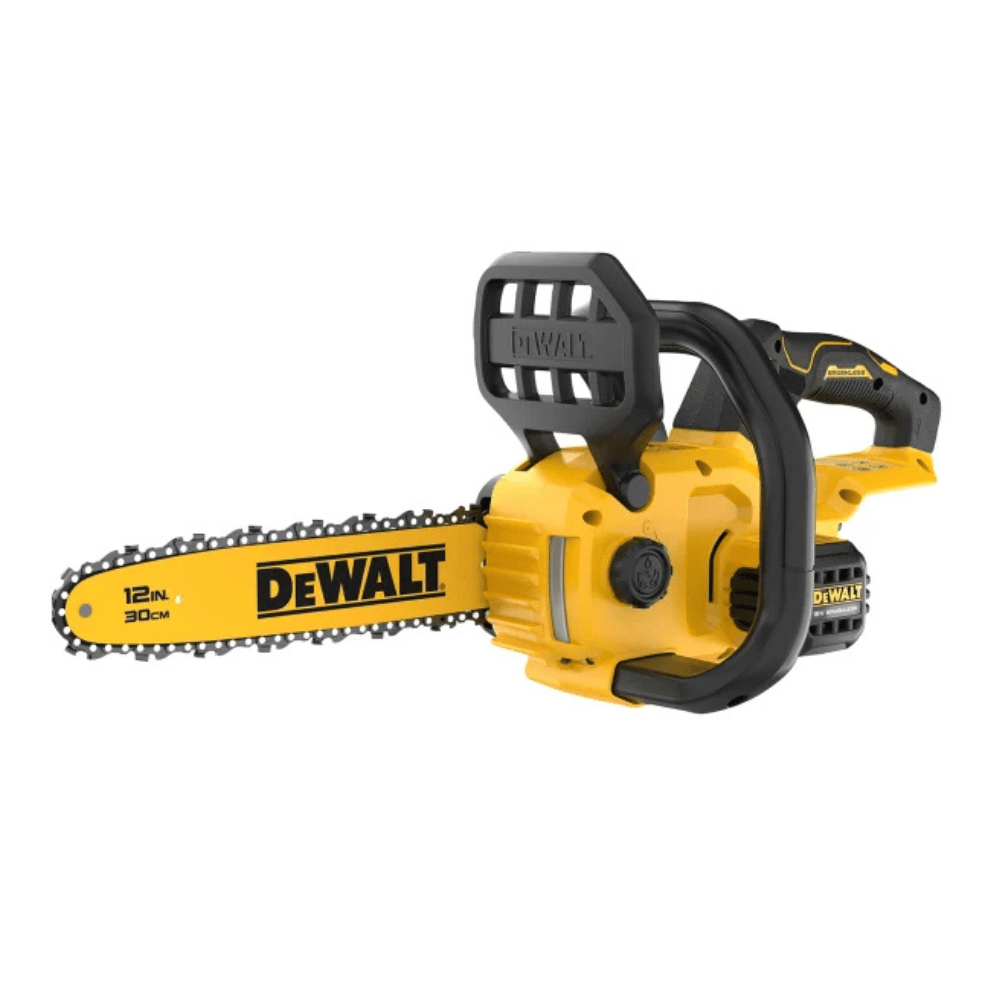

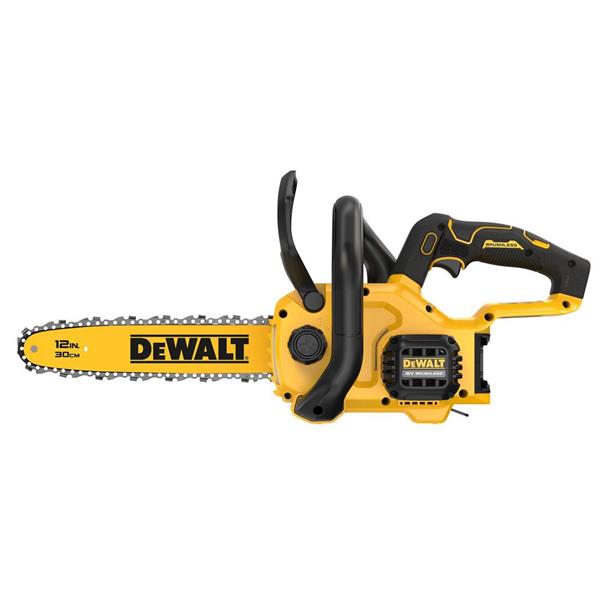

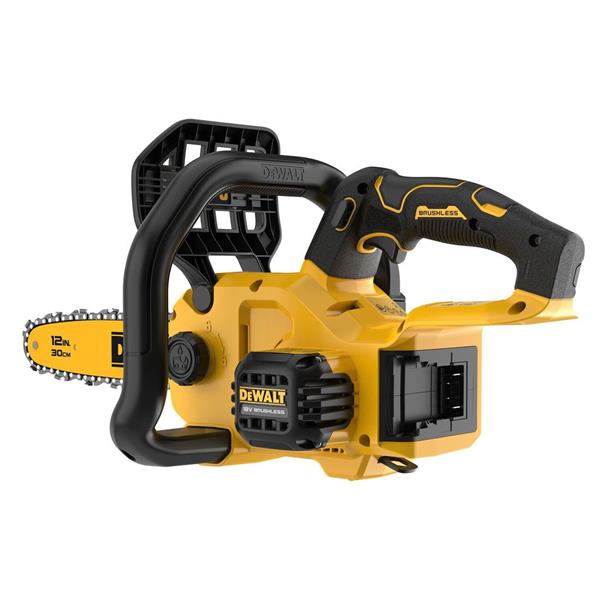

DeWalt DCMCS565N 18V XR brushless compact cordless chainsaw with 300mm bar, auto-oiling, and tool-free chain tensioning - body only

Brushless motor and XR runtime:

The DCMCS565N runs on DeWalt's XR Brushless Motor, which draws power only as needed to maximise efficiency and extend battery life. Using a compatible 18V XR 5Ah battery, the saw delivers up to 100 cuts per charge in typical timber - enough for a full session of pruning, logging, or storm clearance without stopping to recharge.

300mm TRI-LINK bar and chain:

The 30cm TRI-LINK bar and chain are capable of cutting material up to 250mm in diameter, covering twice the bar length with each pass on small to medium stock. Chain speed is 7.3 m/s, making short work of branch work, timber felling, and construction trimming.

Auto-oiling and tool-free maintenance:

An automatic oiling system keeps the bar and chain lubricated throughout use, with a visible oil level gauge so you can check the 0.14-litre tank at a glance without dismantling anything. The oil cap design has been revised on the DCMCS565N compared to the earlier DCM565, addressing the misaligned cap issue reported on the previous model. Tool-free bar and chain replacement and a tooled tensioning system reduce downtime between cuts.

Safety and handling:

A chain brake stops the chain in under one second in the event of kickback, meeting EN62841-4-1:2020 safety requirements. Bumper spikes grip the material during cuts for better control, and an improved sprocket cover directs chip ejection away from the operator, reducing cleaning time. On-board tool storage keeps the included wrench and file to hand for adjustments in the field.

18V XR platform compatibility:

The DCMCS565N is body-only and accepts any 18V XR Li-Ion battery from the DeWalt range, making it a straightforward addition for anyone already using DeWalt cordless tools. No charger or battery is included, so existing XR users can run it from their current stock without additional outlay.

Shop DeWalt cordless tools from Heavins.ie:

Heavins stocks a wide range of cordless power tools, garden power tools, and hand tools suitable for trade and home use. In stock with fast nationwide delivery across Ireland. Browse our full tools and DIY range for complete workshop and outdoor solutions.

Key Features

XR Brushless Motor - maximises efficiency and extends runtime per charge.
Up to 100 cuts per charge - based on 5Ah battery use in typical timber conditions.
300mm TRI-LINK bar and chain - cuts material up to 250mm in diameter.
Chain speed: 7.3 m/s - handles small to medium felling and pruning quickly.
Auto-oiling system - lubricates bar and chain continuously during use.
Visible oil level gauge - check the 0.14L tank without dismantling the saw.
Tool-free bar and chain replacement - reduces downtime in the field.
Chain brake - stops chain in under one second for kickback protection.
Bumper spikes - grip material for controlled, safer cuts.
Improved sprocket cover - directs chip ejection to reduce cleaning maintenance.
On-board tool storage - wrench and file stored on the saw body.
18V XR battery compatible - works with any DeWalt 18V XR Li-Ion battery (sold separately).

Specifications

• Brand: DeWalt
• Model: DCMCS565N
• Voltage: 18V DC (XR Li-Ion)
• Motor type: Brushless
• Bar length: 300mm (30cm)
• Chain pitch: 3/8" LP
• Chain speed: 7.3 m/s
• Maximum cut diameter: 250mm
• Oil tank capacity: 0.14 L
• Cuts per charge: Up to 100 (5Ah battery, typical timber)
• Weight: 3.5 kg (tool only, no battery)

• Battery included: No (body only)
• Charger included: No
• Warranty: 1 Year standard; 3 Years upon registration at dewalt.co.uk within 28 days of purchase

What's Included in the Box

• 1 x DeWalt DCMCS565N 18V XR Brushless Compact Chainsaw (body only)
• 1 x 3/8" LP 30cm Bar (DT20665)
• 1 x 3/8" LP 30cm Chain (DT20676)
• 1 x Wrench
• 1 x 4.0mm File

Setup and Care

Getting started:

Attach a compatible DeWalt 18V XR Li-Ion battery before first use. Fit the included bar and chain and tension using the tooled tensioning system, then check the oil tank is filled before starting cuts.

Chain tensioning and bar care:

Check chain tension regularly during use and adjust as needed using the on-board wrench. The tool-free bar replacement system makes swapping the bar straightforward without additional workshop tools.

Oiling and cleaning:

Monitor the visible oil gauge during use and top up the 0.14-litre tank with bar and chain oil as required. After each session, clear debris from the sprocket cover area and wipe down the bar to maintain performance.

Storage:

Remove the battery before storing. Keep the saw in a dry location, away from moisture and direct sunlight. Register your product at dewalt.co.uk within 28 days of purchase to extend your warranty from 1 year to 3 years.
