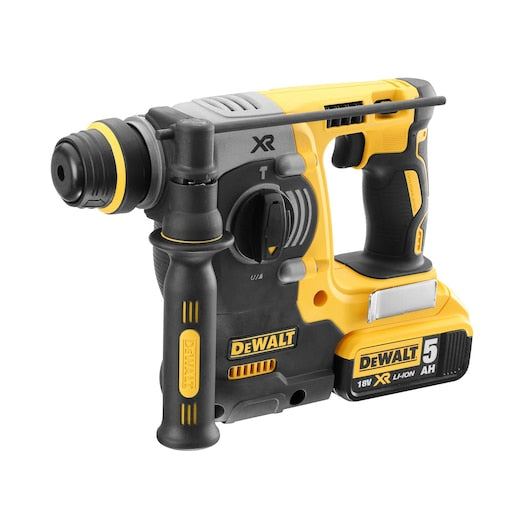

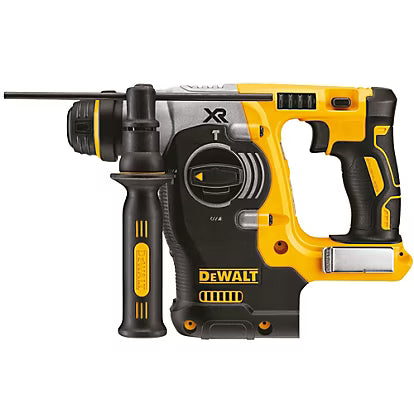

Dewalt XR Brushless 3-Mode Hammer Drill 18V Bare Unit | DCH273N

• 18V XR brushless motor - 400 W output, longer runtime per charge
• SDS-Plus chuck - tool-free bit and chisel changes
• 3 operating modes - rotary, hammer drilling, chisel only
• 2.1 J impact energy - up to 4,600 bpm, drills masonry to 24 mm
• Perform & Protect - 4-spring gearbox limits vibration to 6.6 m/s²
• Electronic clutch and electronic brake for control and safety
• Over 90 holes per charge benchmark (10 mm x 80 mm in concrete)
• Compact at 301 mm long and 2.5 kg - includes side handle and belt hook
• Bare unit - compatible with all DeWalt 18V XR Li-Ion batteries
• 1-year warranty, extendable to 3 years with MyDEWALT registration
• Warranty: 1 Year (extendable to 3 Years on MyDEWALT registration within 4 weeks of purchase)
• Dimensions: 301 x 85 x 202 mm

DeWalt DCH273N-XJ 18V XR brushless SDS-Plus rotary hammer drill - bare unit

Brushless motor with SDS-Plus chuck:

The DCH273N-XJ uses an 18V XR brushless motor rated at 400 W output power, delivering a no-load speed of 0-1,100 rpm and an impact rate of 0-4,600 bpm. The SDS-Plus chuck accepts standard SDS-Plus bits and chisels, making bit changes tool-free and fast on site.

Three operating modes for a range of materials:

A mode-selection collar switches between rotary only (wood and metal), hammer drilling (masonry, brick, and concrete up to 24 mm), and chisel-only mode (plaster, tiles, and render). The electronic clutch provides consistent torque control across all three modes and improves long-term durability.

Perform & Protect vibration control:

As part of the DeWalt Perform & Protect range, the DCH273N-XJ incorporates a 4-spring mounted floating gearbox that reduces hand and arm vibration to 6.6 m/s² during hammer drilling into concrete. Lower vibration levels allow longer working periods before mandatory rest breaks under health and safety guidelines.

Compact build for extended use:

At 2.5 kg (tool only) and 301 mm in length, this is one of the lighter rotary hammers in the DeWalt 18V XR range. The ergonomic grip and included multi-position side handle give two-handed control when drilling overhead or into walls, reducing operator fatigue during longer sessions.

18V XR platform compatibility:

The DCH273N-XJ is a bare unit - no battery or charger is included. It is compatible with all DeWalt 18V XR Li-Ion batteries, including the DCB184 5.0 Ah. DeWalt's benchmark of more than 90 holes (10 mm diameter by 80 mm deep) per charge was achieved using a 5.0 Ah battery. Registering on MyDEWALT within 4 weeks of purchase extends the standard 1-year warranty to 3 years.

Shop the full Tools range from Heavins.ie, with delivery available across Ireland.

Key Features

Brushless Motor - 400 W output, longer runtime, reduced maintenance versus brushed motors.
SDS-Plus Chuck - Tool-free bit and chisel changes; accepts all standard SDS-Plus accessories.
3 Operating Modes - Rotary only, hammer drilling, and chisel-only via mode-selection collar.
2.1 J Impact Energy - 0-4,600 bpm impact rate; drills concrete and masonry up to 24 mm.
Perform & Protect - 4-spring floating gearbox limits vibration to 6.6 m/s² (hammer drilling).
Electronic Clutch - Consistent torque control and improved durability across all modes.
Electronic Brake - Stops the bit quickly when the trigger is released.
Compact and Lightweight - 2.5 kg tool weight, 301 mm length; includes multi-position side handle and belt hook.
Over 90 Holes Per Charge - Benchmark: 10 mm x 80 mm holes in concrete with a 5.0 Ah battery.
18V XR Compatible - Works with all DeWalt 18V XR Li-Ion batteries (sold separately).

Specifications

• Model: DCH273N-XJ
• Voltage: 18V
• Motor Type: Brushless
• Power Output: 400 W
• Chuck Type: SDS-Plus
• No-Load Speed: 0-1,100 rpm
• Impact Rate: 0-4,600 bpm
• Impact Energy: 2.1 J
• Operating Modes: 3 (Rotary, Hammer Drilling, Chisel Only)
• Drilling Capacity - Wood: 26 mm
• Drilling Capacity - Metal: 13 mm
• Drilling Capacity - Masonry: 24 mm
• Vibration (Hammer Drilling into Concrete): 6.6 m/s² ± 1.5 m/s²
• Vibration (Chiselling): 5.4 m/s² ± 1.5 m/s²
• Sound Pressure: 86 dB(A) ± 3 dB(A)
• Sound Power: 97 dB(A) ± 3 dB(A)
• Weight (Tool Only, No Battery): 2.5 kg
• Dimensions (LxWxH): 301 x 85 x 202 mm
• Battery: Not Included (18V XR Li-Ion compatible)
• Charger: Not Included
• Warranty: 1 Year (extendable to 3 Years on MyDEWALT registration within 4 weeks of purchase)

What's Included in the Box

• DeWalt DCH273N-XJ 18V XR Brushless SDS-Plus Rotary Hammer (bare unit)
• Multi-position side handle
• Belt hook

Setup and Care

Getting started:

Fit a fully charged 18V XR Li-Ion battery (sold separately) to the base of the tool. Insert an SDS-Plus bit or chisel by pulling back the chuck collar, inserting the bit, and releasing - the bit will lock and rotate slightly to confirm it is seated. Select the required operating mode using the collar before switching on.

Choosing the right mode:

Use rotary-only mode for drilling into wood and metal. Select hammer drilling mode for concrete, brick, and masonry work. Use chisel-only mode with a flat or pointed chisel for plaster, tiles, and render. Always fit the multi-position side handle when working with the chisel or when drilling at larger diameters.

Ongoing maintenance:

After each session, wipe the exterior of the tool with a dry cloth and inspect the chuck for debris. Apply a small amount of SDS-Plus grease to bit shanks periodically to prolong chuck and bit life. Store the tool in a dry location away from direct sunlight and extreme temperatures.

Warranty registration:

Register the DCH273N-XJ on MyDEWALT within 4 weeks of purchase to extend the standard 1-year warranty to 3 years at no additional cost. Keep your proof of purchase in a safe place as it will be required for any warranty claim.
