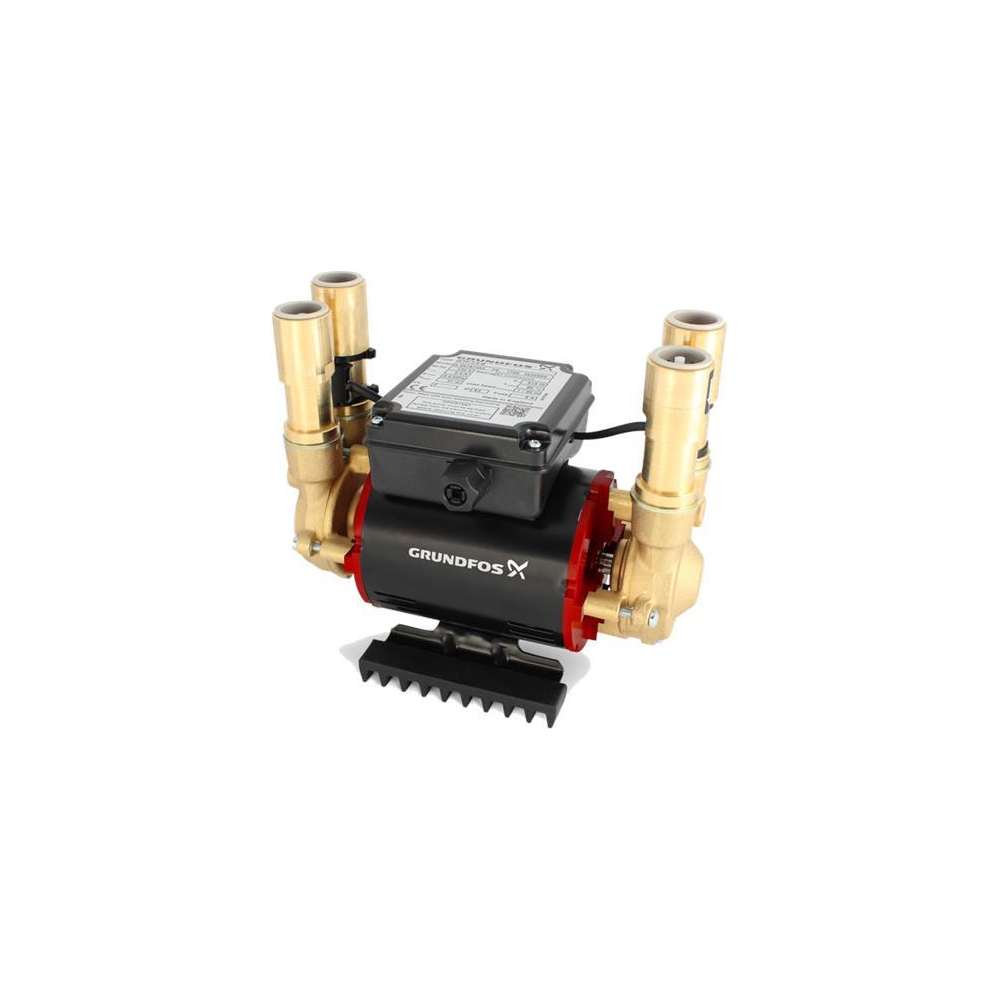

Grundfos Amazon Grundfos STP 2.0 Positive Twin Brass Shower Pump 2 Bar | 98284253

• 2 bar positive head pump for gravity-fed shower systems
• Regenerative design handles air pockets and complex pipework routes
• Twin brass impellers and machined brass stampings for durability
• Long-life silicon carbide seals for quiet, low-wear operation
• Built-in thermal protection stops motor automatically if overheating
• Anti-vibration feet fitted as standard to reduce noise
• Max flow rate of 50 litres per minute at 510W power input
• WRAS approved and CE certified for domestic and commercial use
• IPX2 water ingress protection - suitable for airing cupboard installation
• Supplied with flexible stainless steel braided connection hoses
• 5-year manufacturer warranty for domestic use
• 22mm push-fit connections for straightforward pipework integration
• Warranty: 5 Years
• Dimensions: 258 x 145 x 225 mm

Grundfos Amazon Twin Shower Pump - 2 Bar Positive Head with Brass Impellers

Built for Gravity-Fed Plumbing Systems:

The Grundfos Amazon STP-2.0 B is a 2 bar positive head twin impeller shower pump designed for gravity-fed (positive head) plumbing configurations. It is suited to domestic, commercial, or light industrial use where the shower outlets are positioned below the cold-water storage tank. The pump is typically installed in an airing cupboard or loft space, close to the water supply.

Regenerative Pump Design for Complex Plumbing Routes:

Unlike standard centrifugal pumps, this unit uses a regenerative pump design, which makes it well equipped to overcome air pockets in the pipework. This is particularly useful where the plumbing route includes multiple bends and elbows. The continuous duty rating means the pump can run for extended periods without interruption.

Brass Construction for Long-Term Reliability:

The pump is built with brass impellers and machined brass stampings, which offer greater durability than plastic-bodied alternatives. Long-life silicon carbide seals reduce wear over time and contribute to the low-noise operation. The motor housing is finished in black, with brass pump heads providing a solid, hardwearing build throughout.

Quiet Operation with Built-In Protection:

Anti-vibration feet are fitted as standard to reduce noise and vibration during operation. A built-in integrated thermal protection system stops the motor automatically if it overheats, protecting the pump from damage. The quiet induction motor and minimal turbulence pump head design keep operating noise to a minimum during use.

Shop the full DIY & Hardware range from Heavins.ie, with delivery available across Ireland.

Key Features

2 Bar Positive Head - boosts hot and cold water to showers in gravity-fed systems.
Regenerative Pump Type - handles air pockets and complex pipework routes effectively.
Twin Brass Impellers - machined brass stampings for durability and consistent performance.
Silicon Carbide Seals - long-life seals that reduce wear and support quiet running.
Built-In Thermal Protection - motor shuts off automatically if overheating occurs.
Anti-Vibration Feet - fitted as standard to reduce noise and movement during operation.
WRAS Approved - tested to Water Regulations Advisory Scheme standards for water quality and mechanical performance.
IPX2 Water Ingress Protection - rated for installation in damp environments such as airing cupboards.
CE Approved - meets European safety and compliance requirements.
Continuously Rated - suitable for extended run times in domestic, commercial, or light industrial use.
Stainless Steel Hoses Included - supplied with flexible braided stainless steel connection hoses for corrosion resistance.

Specifications

• Brand: Grundfos
• Model: Amazon STP-2.0 B
• SKU: 98284253
• Pump Type: Regenerative, Twin Impeller
• Head Type: Positive Head
• Bar Pressure: 2 bar
• Closed Valve Pressure: 2.4 bar
• Max Flow Rate: 50 litres/min
• Max Head: 24m
• Minimum Static Head: 1m
• Power Input: 510W
• Rated Current: 2.2A
• Supply Voltage: 230V, 1-phase, 50Hz
• Cable Length: 1.5m
• Max Hot Water Temperature: 60°C
• Connection Size: 22mm push-fit
• Water Ingress Protection: IPX2
• Approvals: WRAS, CE
• Colour: Black (motor housing), Brass (pump heads)

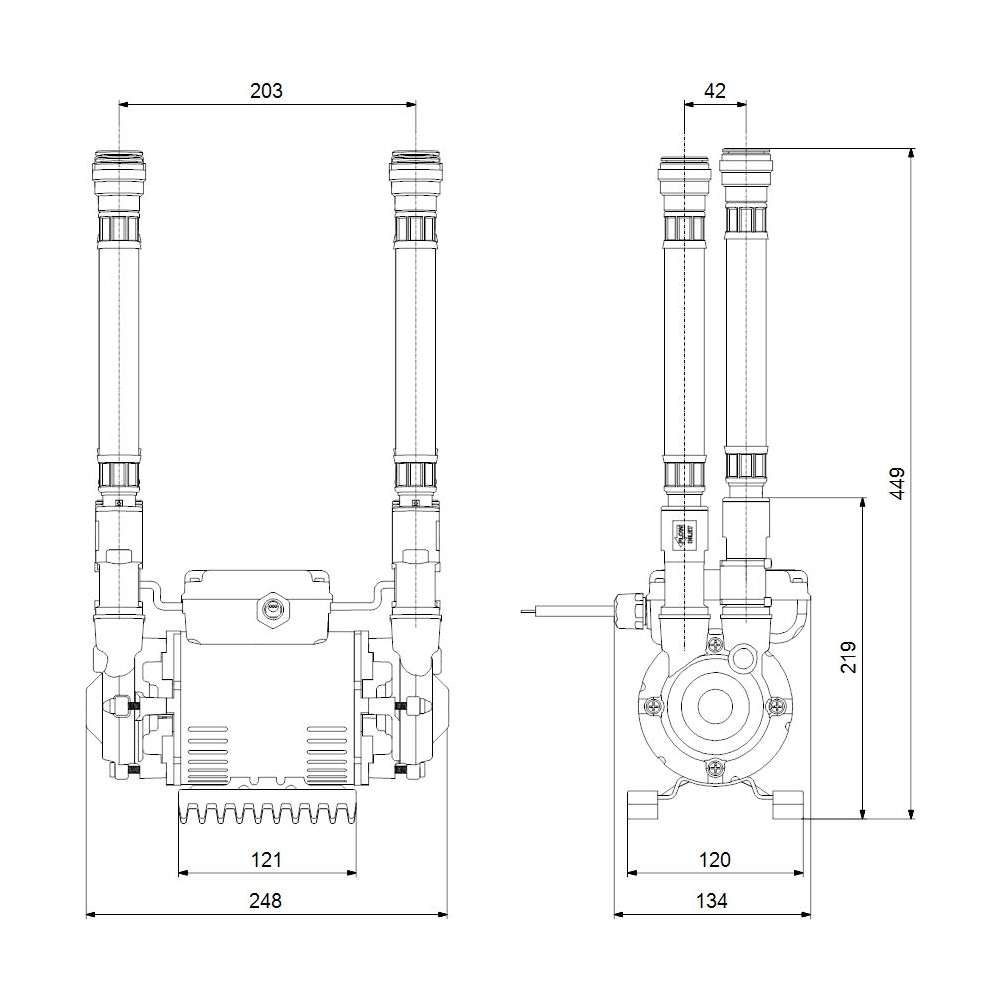

• Dimensions (LxWxH): 258 x 145 x 225 mm
• Weight: 5kg (pump only)
• Warranty: 5 Years (domestic use)
• EAN: 5700310312507

What's Included in the Box

• 1 x Grundfos Amazon STP-2.0 B Twin Shower Pump
• Flexible stainless steel braided connection hoses
• 4 x 22mm push-fit flexible adapters
• Anti-vibration feet (pre-fitted)

Setup and Care

Installation:

This pump requires a positive head (gravity-fed) plumbing configuration. It is suitable for installation in an airing cupboard or loft space, close to the water supply. Always ensure the minimum static head of 1m is present before installation.

Electrical Connection:

The pump operates on a standard 230V, 50Hz single-phase supply with a 1.5m cable supplied. Electrical connections should be carried out by a qualified electrician in accordance with current wiring regulations.

Routine Maintenance:

The silicon carbide seals are designed for long service life under normal operating conditions. Keep the pump area dry and free from obstruction, and inspect hose connections periodically for signs of wear or leakage.

Thermal Protection:

The integrated thermal protection system will stop the motor if it reaches an unsafe temperature. Allow the pump to cool fully before restarting, and investigate the cause of overheating before returning to service.
