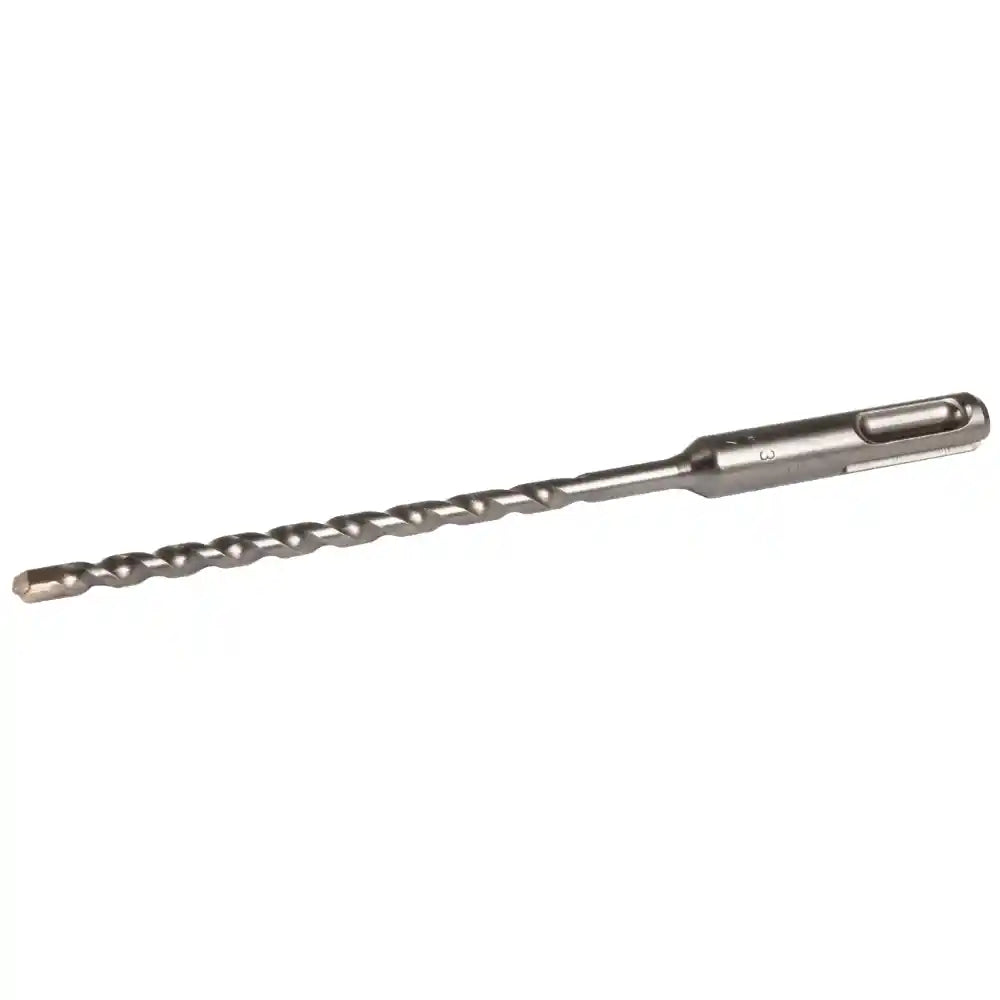

Rawlplug SDS Plus Masonary Drill Bit 5mm x 160mm | RT-SDS-5/160

• 5mm SDS Plus masonry drill bit, 160mm total length
• Fits all standard SDS Plus hammer drills
• 130-degree carbide attack angle - faster drilling in concrete
• 40Cr steel with 54 HRC hardness for lasting durability
• Centre point tip prevents walking on hard surfaces
• Aggressive grooves clear debris quickly during drilling
• SicherSafe certified for accurate, aligned holes
• Rated for concrete, brick, granite and natural stone
• Dimensions: 5mm diameter x 160mm total length (100mm working length)

Rawlplug SDS Plus Drill Bits for Concrete and Masonry - 5mm x 160mm

Built for Fast Drilling in Hard Materials:

The Rawlplug RT-SDS-5/160 is a 5mm SDS Plus masonry drill bit rated for drilling into concrete, solid brick, natural stone, granite, hollow core slabs and concrete slabs. The 130-degree carbide plate attack angle is engineered to reduce working time in hard substrates, while the centre point allows drilling to start cleanly without the bit walking across the surface.

Quality Steel and Certified Accuracy:

The bit is manufactured from high-quality 40Cr steel with a hardness of 54 HRC, giving it durability through repeated use in demanding conditions. It carries the international SicherSafe certificate, which confirms the cylindricity and axial alignment of the drilled holes - meaning anchor points and fixings seat accurately every time.

Aggressive Flute Design for Efficient Clearance:

Deep, aggressive grooves along the shank extract drilling dust and debris rapidly, helping maintain speed and reducing heat build-up during use. The SDS PLUS shank is compatible with most SDS Plus hammer drills on the market, making it a practical choice for both tradespeople and experienced DIYers who already own an SDS Plus machine.

Shop the full Drill Bits range from Heavins.ie, with delivery available across Ireland.

Key Features

SDS PLUS shank - fits most SDS Plus hammer drills on the market.
130-degree carbide plate attack angle - reduces drilling time in concrete and masonry.
40Cr steel construction - 54 HRC hardness for durability through repeated use.
Centre point tip - starts drilling cleanly without slipping on the surface.
Aggressive grooves - extract material quickly to maintain speed and reduce heat.
SicherSafe certified - independently confirms cylindricity and axial hole alignment.
PGM Approved - meets Rawlplug's internal quality approval standard.
2-cutter head - standard twin-cutter configuration for consistent masonry drilling.
Approved substrates - concrete, solid concrete slab, hollow core slab, solid brick, natural stone and granite.

Specifications

• Brand: Rawlplug
• Model: RT-SDS-5/160
• Shank type: SDS Plus
• Drill diameter: 5mm
• Total length: 160mm
• Working length: 100mm
• Steel grade: 40Cr
• Hardness: 54 HRC
• Carbide plate attack angle: 130 degrees
• Number of cutters: 2
• Certification: SicherSafe
• Approval: PGM Approved
• Approved substrates: Concrete, solid concrete slab, hollow core slab, solid brick, natural stone, granite
• Quantity per pack: 1 piece
• Weight (per piece): approx. 45g
• Warranty: 1 Year

What's Included in the Box

• 1 x Rawlplug RT-SDS-5/160 SDS Plus masonry drill bit (5mm x 160mm)
