Stanley FMXCMD152WE FatMax Wall Mounted Air Hose 1.5 HP 8 Bar 9 Metre | SACCMD152WE

• Wall-mounted design saves floor space in garages and workshops
• 9-metre integrated hose reel swivels 170+ degrees for extended reach
• Oilless pump - no lubrication required, clean air output
• 160 L/min air displacement and 8 bar (116 psi) max pressure
• Rated at 1.1 kW / 1.5 HP on standard 230 V mains supply
• Quiet operation at 59 dB(A)
• 2-litre tank - compact and consistent air delivery
• Includes inflation gun with Presta valve, conical needle, and ball needle
• Protective plastic shrouds for long-term durability

• Warranty: 1 Year (extendable to 3 years via MyStanley registration)
• Dimensions: 642 x 241 x 450 mm

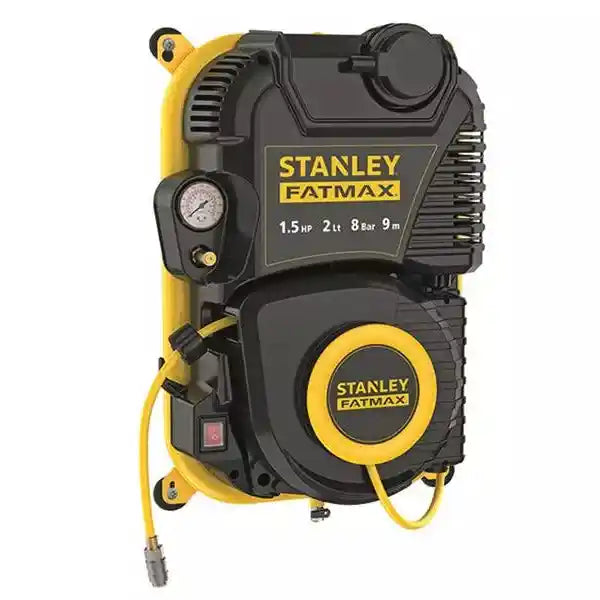

Stanley FatMax FMXCMD152WE wall-mounted oilless air compressor with 9 m hose reel, 160 L/min, and 8 bar max pressure

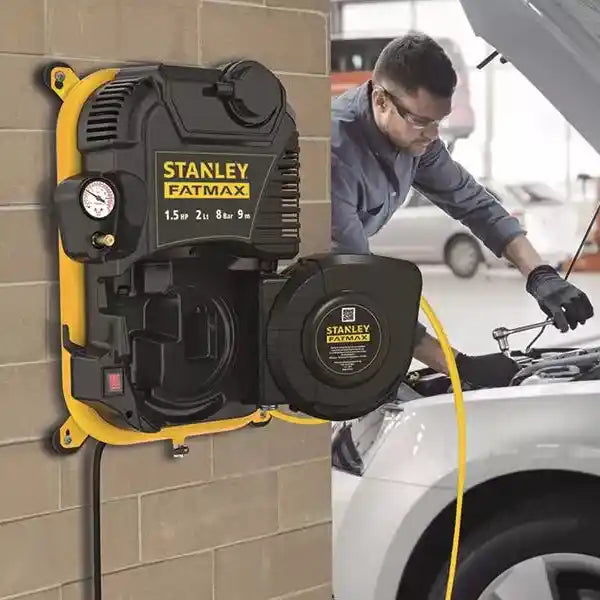

Wall-mounted design that frees up your workshop floor:

The FMXCMD152WE mounts directly to the wall, keeping the compressor off the floor and out of the way in a garage, workshop, or mobile workstation. The integrated 9-metre hose reel swivels more than 170 degrees, so the air supply reaches where it is needed without repositioning the unit.

Oilless pump - clean air, no maintenance lubrication required:

The oil-free pump technology means there is no lubrication oil to check, top up, or change. This also ensures the air output remains clean, making the compressor suitable for spray painting, tyre work, and other applications where oil contamination would be a problem.

Practical performance for light to medium-duty tasks:

At 160 L/min air displacement and a maximum pressure of 8 bar (116 psi), the FMXCMD152WE handles a wide range of pneumatic tools including nailers, staplers, and spray guns, as well as rapid tyre inflation and component cleaning. The protective plastic shrouds around the internal components add durability for daily workshop use.

Quiet operation at 59 dB(A):

Rated at 59 dB(A), this compressor runs noticeably quieter than many comparable units in its class, which is a practical benefit in enclosed workshops or shared spaces. It operates on a standard 230 V / 50 Hz mains supply with no special wiring required.

Shop Stanley FatMax from Heavins.ie:

Heavins stocks a wide range of compressors, power tools, and workshop accessories to keep your garage or trade setup running. In stock with fast nationwide delivery across Ireland. Browse our full Tools & DIY range for complete workshop solutions.

Key Features

Wall-mounted configuration - keeps the compressor off the floor and saves space in garages and workshops.
9-metre integrated hose reel - swivels more than 170 degrees for extended reach without moving the unit.
Oilless pump technology - no lubrication oil required; delivers clean air output.
160 L/min air displacement - capable of rapidly inflating tyres and powering pneumatic tools.
8 bar / 116 psi maximum pressure - suited to nailers, staplers, spray guns, and tyre inflation.
59 dB(A) noise rating - quieter operation for enclosed or shared workshop environments.
2-litre tank - compact tank volume paired with high displacement for consistent air delivery.
Protective plastic shrouds - guard internal components for long-term durability.
Includes inflation gun kit - Presta valve head, conical needle, and ball inflation needle included in the box.
Wall-mounting template included - paper template supplied for accurate installation positioning.

Specifications

• Model: FMXCMD152WE
• Brand: Stanley FatMax
• Tank Capacity: 2 litres
• Air Displacement: 160 L/min
• Maximum Pressure: 8 bar (116 psi)
• Motor Power: 1.5 HP / 1.1 kW
• Motor Speed (max): 2,000 RPM
• Noise Level: 59 dB(A)
• Voltage: 230 V ~ / 50 Hz
• Hose Reel Length: 9 metres
• Hose Reel Swivel: 170+ degrees
• Pump Type: Oilless
• Operating Temperature: +5°C to +40°C
• Dimensions (HxWxD): 642 x 241 x 450 mm
• Weight: 13 kg
• Colour: Black / Yellow
• Warranty: 1 Year (extendable to 3 years via MyStanley registration)

What's Included in the Box

• Stanley FatMax FMXCMD152WE wall-mounted air compressor with integrated 9 m hose reel
• Inflation gun with Presta valve head
• Conical needle (for sports balls and inflatables)
• Straight needle (for inflating balls)
• Wall-mounting template (paper guide for installation)
• Instruction manual

Setup and Care

Installation:

Use the included paper template to mark and drill wall fixings at the correct spacing before mounting. The hose reel swivels more than 170 degrees once installed, so position the unit to maximise reach across your workspace. The compressor runs on a standard 230 V / 50 Hz household supply.

First use:

No oil filling is required before first use - the oilless pump is ready to run straight from installation. Allow the tank to reach operating pressure before connecting pneumatic tools, and check the pressure gauge reading against the requirements of each tool or tyre being inflated.

Routine maintenance:

The oilless design eliminates the need for oil checks or changes. Keep the air intake vents clear of dust and debris, and drain any condensation from the tank periodically, particularly in humid environments, to maintain consistent performance.

Warranty and registration:

The FMXCMD152WE carries a standard 1-year manufacturer warranty. Register the product via the MyStanley portal within the qualifying period after purchase to extend cover to 3 years. Retain proof of purchase for any warranty claim.
