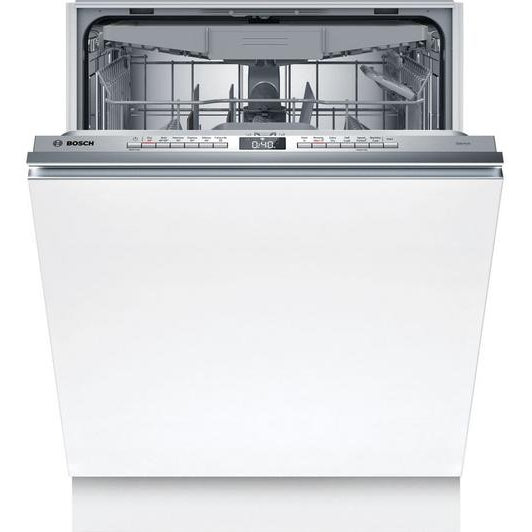

Bosch Series 4 14 Place Fully Integrated 60cm Dishwasher with Wifi | SMH4HVX14G

• 14 place settings - suits family-sized households
• Energy rated C - 75 kWh per 100 cycles
• 46 dB noise level - C noise class
• EcoSilence Drive™ brushless motor - quieter and longer lasting
• Extra Dry function - improved drying for plastics and mixed loads
• Home Connect Wi-Fi - remote control via smartphone; Alexa compatible
• Program Download - add up to 10 extra programmes via app
• AquaStop leak protection - covered by its own separate guarantee
• Rackmatic upper basket - 3-stage height adjustment
• VarioDrawer cutlery tray - frees up main basket space
• Vario Hinge - fits low plinth and high built-in kitchen configurations
• 6 programmes including Eco 50°C, Auto 45-65°C, and Intensive 70°C
• Warranty: 5 Years
• Dimensions: 815 x 598 x 550 mm

Bosch Series 4 Fully Integrated Dishwasher with Home Connect and Extra Dry

Quiet, efficient cleaning for a full household:

The SMH4HVX14G runs at 46 dB, making it one of the quieter dishwashers in its class and well suited to open-plan kitchens or evening use. The EcoSilence Drive™ brushless motor reduces both noise and wear, and the machine carries a C energy rating with a water consumption of just 9.0 litres per Eco cycle - measured over 100 cycles, total energy consumption is 75 kWh.

Extra Dry for difficult loads:

The Extra Dry function delivers an additional drying boost for plastics and mixed loads that a standard heat-exchanger cycle may leave damp. Combined with the Hygiene+ programme, it gives added confidence when washing items that need thorough drying, such as baby bottles, food containers, and cutting boards.

Home Connect app and smart control:

Built-in Wi-Fi connects the dishwasher to the Bosch Home Connect app, allowing remote monitoring and cycle control from a smartphone. The Program Download feature lets you add up to 10 specialised programmes via the app, and Amazon Alexa voice control is supported. Silence On Demand lets you pause the fan noise mid-cycle at the touch of a button.

Flexible installation with Vario Hinge:

The Vario Hinge is designed for kitchens with non-standard plinth heights or high built-in configurations, adjusting both horizontally and vertically to ensure a neat fit behind a customer-supplied furniture door. Column installation and an adjustable plinth are both supported, and the concealed fully integrated design means no visible controls from outside the cabinet.

Basket system and load capacity:

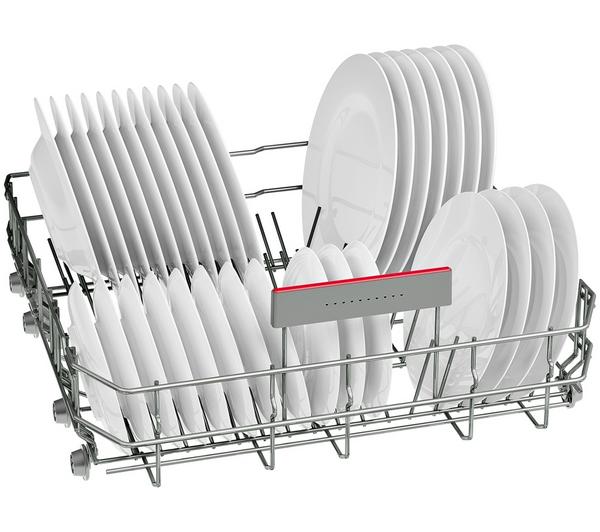

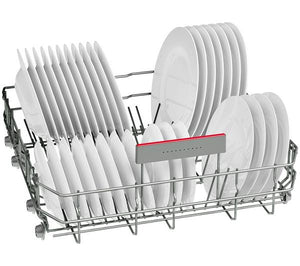

The upper basket uses a 3-stage Rackmatic height adjustment, so taller items in the lower basket can be accommodated without difficulty. The VarioDrawer cutlery tray sits above the upper basket, freeing up space in the main load area. Foldable plate racks are included in both baskets - two in the upper, four in the lower - and a rack stopper prevents the lower basket from derailing when pulled out fully.

Shop the full Appliances range from Heavins.ie, with delivery available across Ireland.

Key Features

EcoSilence Drive™ - brushless motor for quieter operation and longer motor life.
Extra Dry - additional drying boost for plastics and mixed loads.
Home Connect (Wi-Fi) - remote cycle control and monitoring via smartphone app.
Program Download - add up to 10 specialised programmes via the Home Connect app.
Silence On Demand - pause fan noise mid-cycle at the touch of a button.
AquaStop - flood protection system with its own separate guarantee.

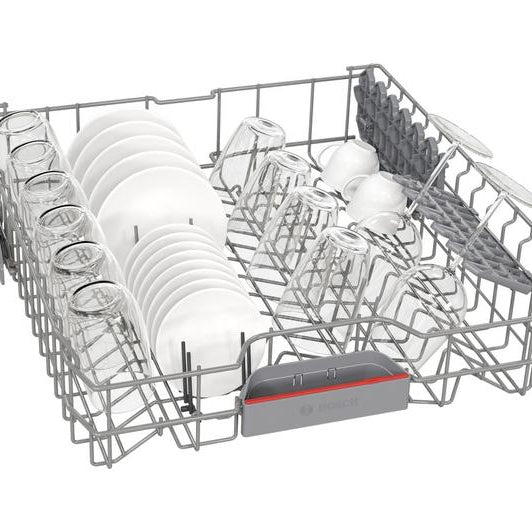

Rackmatic - 3-stage height-adjustable upper basket.

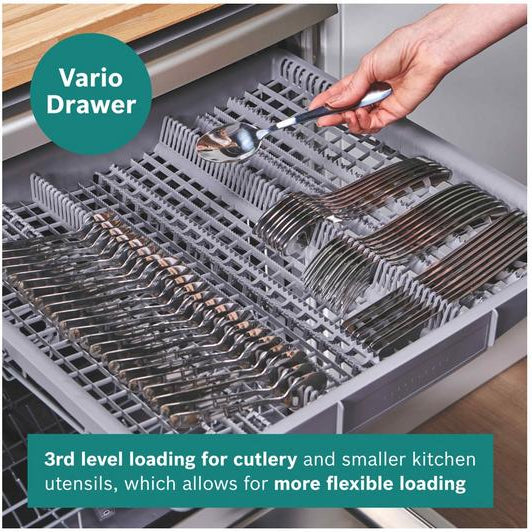

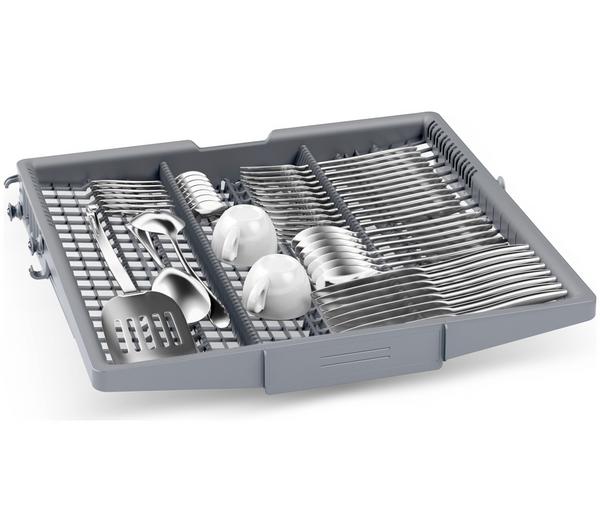

VarioDrawer - cutlery tray above upper basket to maximise main basket space.
Vario Hinge - adjustable hinge for low plinth or high built-in installation.
Hygiene+ - programme with enhanced hygiene performance for heavily soiled or sensitive items.
SpeedPerfect+ - reduces cycle time without compromising cleaning results.
InfoLight - projects a red dot onto the floor to indicate the dishwasher is running.

Specifications

• Brand: Bosch
• Model: SMH4HVX14G
• EAN: 4242005566174
• EPREL ID: 2430641
• Type: Fully integrated dishwasher
• Place settings: 14
• Energy efficiency class: C
• Noise level: 46 dB
• Noise emission class: C
• Number of programmes: 6
• Programmes: Eco 50°C, Auto 45-65°C, Intensive 70°C, Express 65°C, Silence 50°C, Favourite
• Special functions: Extra Dry, SpeedPerfect+, Half Load, Machine Care
• Drying system: Heat exchanger
• Water consumption per Eco cycle: 9.0 litres
• Energy consumption per 100 cycles: 75 kWh
• Energy consumption per Eco cycle: 0.747 kWh
• Eco programme duration: 295 minutes
• Delay timer: Up to 24 hours
• Number of wash temperatures: 4
• Display: LED, time remaining indicator
• Controls: Buttons
• Child lock: No
• Smart connectivity: Home Connect (Wi-Fi); Amazon Alexa compatible
• Connection rating: 2400 W
• Voltage: 220-240 V, 50/60 Hz
• Fuse protection: 10 A
• Power consumption (off mode): 0.5 W
• Motor: EcoSilence Drive™
• AquaStop: Yes
• Glass protection system: Yes
• Dimensions (HxWxD): 815 x 598 x 550 mm
• Recess dimensions (HxWxD): 815-875 x 600-608 x 550 mm
• Net weight: 34.4 kg
• Country of origin: Poland
• Warranty: 5 Years (manufacturer's parts and labour; must be registered with Bosch)

What's Included in the Box

• Bosch Series 4 SMH4HVX14G fully integrated dishwasher
• Vapour barrier plate

Setup and Care

Installation:

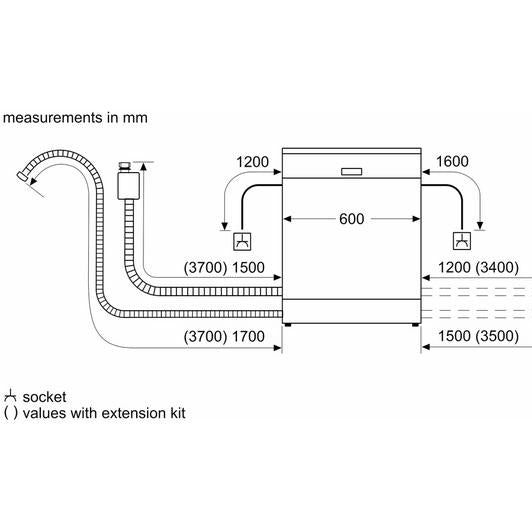

The SMH4HVX14G is designed for full integration behind a standard 600 mm furniture door supplied by the installer. The Vario Hinge accommodates plinth heights from 815 mm to 875 mm and adjusts both horizontally and vertically for a precise fit. Column installation and an adjustable plinth are both supported. Professional installation is recommended to connect water supply, drainage, and electrical supply to the rated 2400 W, 10 A specification.

First use:

Before the first wash cycle, fill the rinse aid dispenser and load the salt reservoir with dishwasher salt to protect against limescale build-up. Set the water hardness level according to your local supply - water hardness information is available from your water authority. Run a short empty cycle before loading dishes for the first time.

Routine care:

Clean the filters after every few cycles by rinsing them under running water. Run the Machine Care programme periodically to keep the interior fresh and maintain cleaning performance. Top up rinse aid and salt as indicated by the dashboard lights.

Home Connect app:

Download the free Bosch Home Connect app on iOS or Android and follow the in-app instructions to register the appliance on your home Wi-Fi network. Once connected, you can start, monitor, and schedule cycles remotely, and download additional programmes to suit specific loads. Registering the appliance with Bosch also activates the 5-year manufacturer's warranty.
