LG USC9S 3.1.3ch Soundbar with Dolby Atmos - Black | USC9S.DGBRLLM

• 3.1.3 channel system with three up-firing drivers for Dolby Atmos
• 400W total RMS - 180W soundbar plus 220W wireless subwoofer
• Dolby Atmos, DTS:X, DTS-HD Master Audio, and IMAX Enhanced certified
• Meridian Audio technology for refined detail across all sound modes
• AI Room Calibration Pro - automated room measurement in under a minute
• Two HDMI 2.1 ports: eARC, 4K/120Hz pass-through, VRR and ALLM for gaming
• Apple AirPlay 2, Chromecast built-in, Spotify Connect, Tidal Connect
• WOW Bracket included - mounts bar directly onto LG OLED C2 and C3 TVs
• WOW Orchestra and WOW Interface for LG TV integration via single remote
• Bluetooth 5.0, Works with Alexa and Google Assistant
• Hi-Res audio playback up to 24-bit/96kHz
• Colour: Black

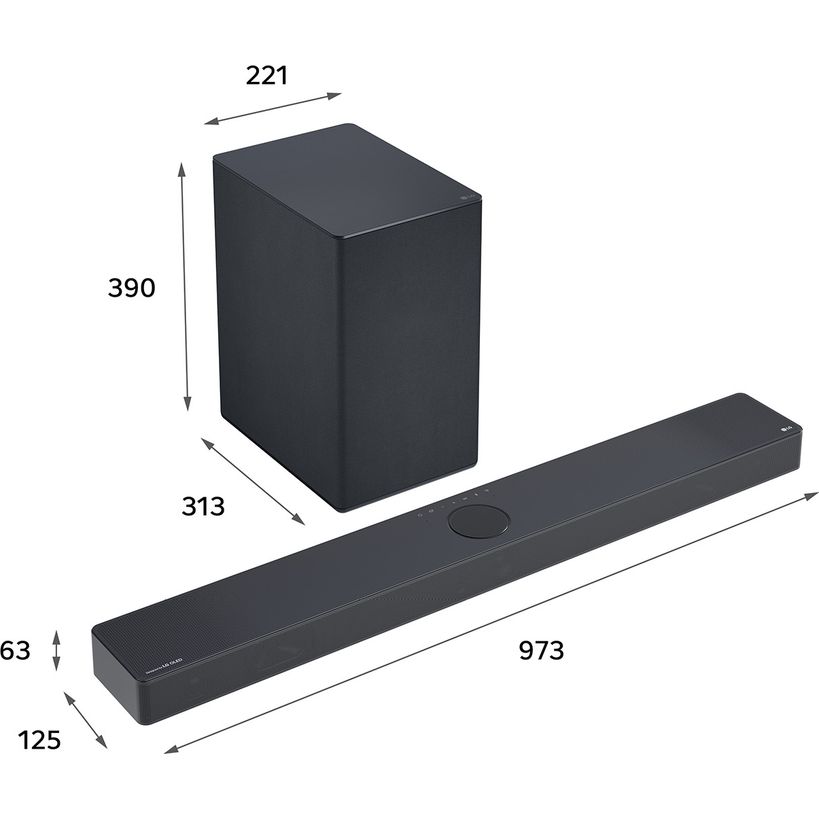

• Dimensions: Soundbar (HxWxD): 63 x 975 x 125 mm | Subwoofer (HxWxD): 390 x 221 x 313 mm

LG USC9S 3.1.3ch Soundbar with Subwoofer - Dolby Atmos, IMAX Enhanced and AI Room Calibration Pro

400W across nine speakers with object-based audio:

The LG USC9S delivers 400W total RMS output across a 3.1.3 channel configuration - 180W from the soundbar and 220W from the wireless subwoofer. Nine individual speaker drivers, including three up-firing channels, handle Dolby Atmos and DTS:X object-based audio by placing sound at precise points above and around the listener. IMAX Enhanced certification adds a further layer of studio-verified processing for compatible content.

Meridian Audio and AI Room Calibration Pro:

Meridian Audio technology, developed by the British hi-fi specialist, shapes the soundbar's output for greater detail and spatial accuracy across all listening modes. AI Room Calibration Pro takes measurements using 400Hz reference signals and automatically adjusts the EQ to suit the specific dimensions of your room, removing the need for manual calibration. AI Sound Pro analyses the content type in real time and selects the most appropriate sound profile automatically.

Triple Level Spatial Sound and Virtual Sound Dome:

Triple Level Spatial Sound uses an HRTF-based 3D processing engine to generate a virtual middle audio layer, creating what LG describes as a Virtual Sound Dome above and around the listening position. The three up-firing drivers work in combination with this processing to reproduce height information from Atmos and DTS:X tracks without requiring ceiling-bounce conditions. Seven preset sound modes - including Cinema, Clear Voice Pro, Game, and Bass Blast - let you tailor the output to the programme type.

HDMI 2.1 with eARC and gaming compatibility:

Two HDMI 2.1 ports handle 4K video at 120Hz pass-through alongside eARC audio return from the TV. Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) are both supported, reducing input lag when a games console is connected via the HDMI input. Dolby Vision and HDR10 pass-through are also supported, keeping the full HDR chain intact from source to display.

WOW Bracket and LG TV integration:

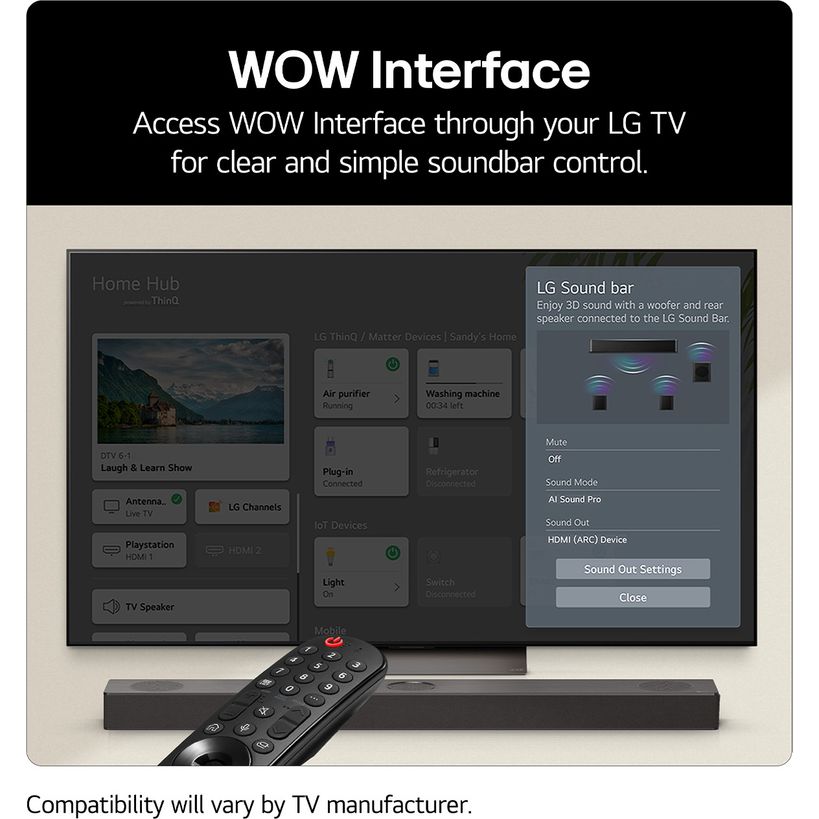

The USC9S ships with LG's WOW Bracket, which allows the soundbar to clip directly onto LG OLED C2 and C3 TVs in 55", 65", and 77" screen sizes, replacing the TV's desktop stand. When paired with a compatible LG TV, WOW Orchestra blends the TV's own speakers with the soundbar's output, WOW Interface gives full soundbar control from the TV's on-screen menu via a single remote, and WOWCAST provides a wireless audio connection between the two units without an HDMI cable. These features require a compatible LG TV and are not available with other brands.

Wireless streaming and smart platform support:

Apple AirPlay 2, Chromecast built-in, Spotify Connect, and Tidal Connect all allow wireless audio streaming from phones, tablets, and computers. Bluetooth 5.0 with SBC and AAC codec support provides a direct connection for devices outside those ecosystems. Works with Alexa and Google Assistant for voice control from compatible smart speakers or displays.

Shop the LG USC9S and the wider Entertainment range from Heavins.ie, with delivery available across Ireland.

Key Features

3.1.3 Channel System - nine speaker drivers including three up-firing channels for overhead Atmos placement.
400W Total RMS Output - 180W soundbar plus 220W wireless subwoofer.
Dolby Atmos and DTS:X - object-based audio with full Dolby TrueHD and DTS-HD Master Audio support.
IMAX Enhanced - certified studio-grade audio processing for IMAX-formatted content.
Meridian Audio Technology - British hi-fi tuning applied across all sound modes.
AI Room Calibration Pro - automated room measurement and EQ correction at the touch of a button.
AI Sound Pro - real-time content analysis with automatic sound mode selection.
Triple Level Spatial Sound - HRTF-based 3D engine generating a virtual sound dome above the listener.
Two HDMI 2.1 Ports - 4K/120Hz pass-through, eARC, VRR, ALLM, Dolby Vision, and HDR10 support.
WOW Bracket Included - mounts directly onto LG OLED C2 and C3 TVs in 55", 65", and 77" sizes.
WOW Orchestra and WOW Interface - combines TV and soundbar speakers; single-remote control via TV menu (LG TV required).
Apple AirPlay 2 and Chromecast Built-in - wireless multi-room and ecosystem streaming.
Spotify Connect and Tidal Connect - direct streaming from both services without a Bluetooth relay device.
Bluetooth 5.0 - SBC and AAC codec support for direct device pairing.
Hi-Res Audio - up to 24-bit/96kHz playback via USB and network sources.

Specifications

• Model: USC9S (USC9S.DGBRLLM)
• Colour: Black
• Channels: 3.1.3
• Total RMS Output: 400W (Soundbar 180W + Subwoofer 220W)
• Soundbar Dimensions (HxWxD): 63 x 975 x 125 mm
• Subwoofer Dimensions (HxWxD): 390 x 221 x 313 mm
• Soundbar Weight: 4.1 kg
• Subwoofer Weight: 7.8 kg
• Total System Weight: 11.9 kg
• Audio Formats: Dolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS:X, DTS-HD Master Audio, DTS-HD High Resolution, DTS Digital Surround, IMAX Enhanced
• Hi-Res Audio: Up to 24-bit/96kHz

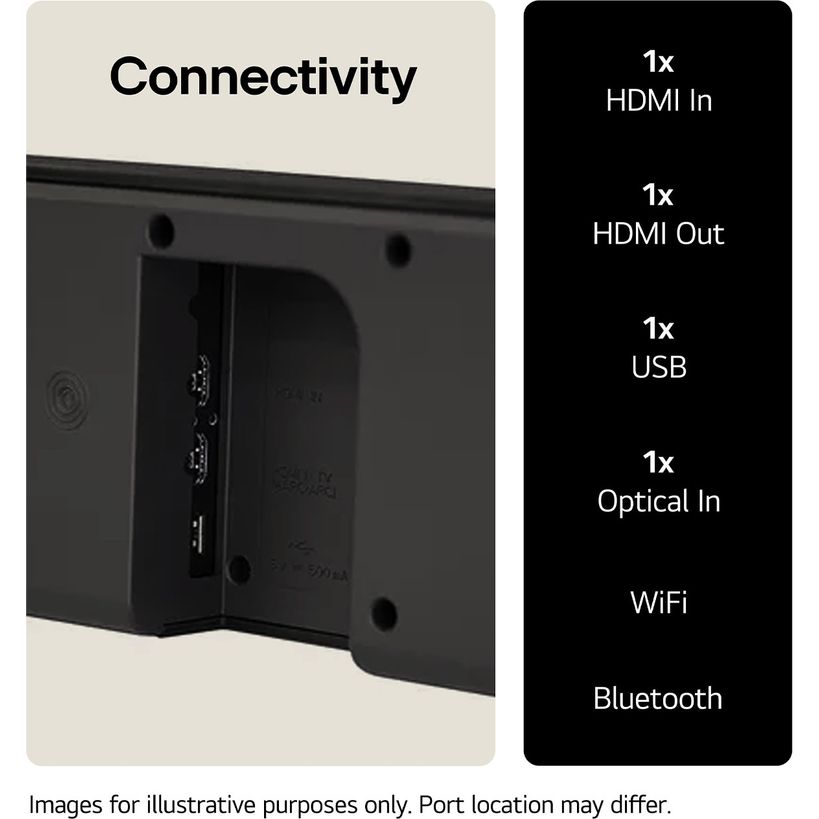

• HDMI: 2 x HDMI 2.1 (1 x eARC out, 1 x in) - 4K/120Hz, VRR, ALLM, Dolby Vision, HDR10
• Optical Input: 1
• USB: 1 (5V, 500mA bus power)
• Ethernet: Yes
• Wi-Fi: Built-in
• Bluetooth: 5.0 (SBC, AAC)
• Streaming: Apple AirPlay 2, Chromecast built-in, Spotify Connect, Tidal Connect
• Voice Assistants: Works with Alexa, Google Assistant
• LG TV Features: WOW Orchestra, WOW Interface, WOWCAST (compatible LG TVs required)
• Sound Modes: Standard, Music, Cinema, Clear Voice Pro, Sports, Game, Bass Blast
• Soundbar Impedance: 6 Ohms
• Subwoofer Impedance: 3 Ohms
• Soundbar SPL: 83 dB
• Subwoofer SPL: 85 dB
• Supported File Formats: AAC, FLAC, MP3, OGG, WAV
• Mains Supply: 100-240V ~ 50/60Hz (universal voltage)
• Power Consumption (On Mode): 75W combined (soundbar 37W + subwoofer 38W)
• Standby Power: 0.5W or below (both units)
• Country of Origin: China

What's Included in the Box

• LG USC9S Soundbar
• Wireless Subwoofer
• Remote Control
• 2 x AA Batteries
• HDMI Cable
• WOW Bracket (compatible with LG OLED C2 and C3 TVs in 55", 65", and 77" sizes)
• Wall Mount Guide
• User Manual

Setup and Care

Placement:

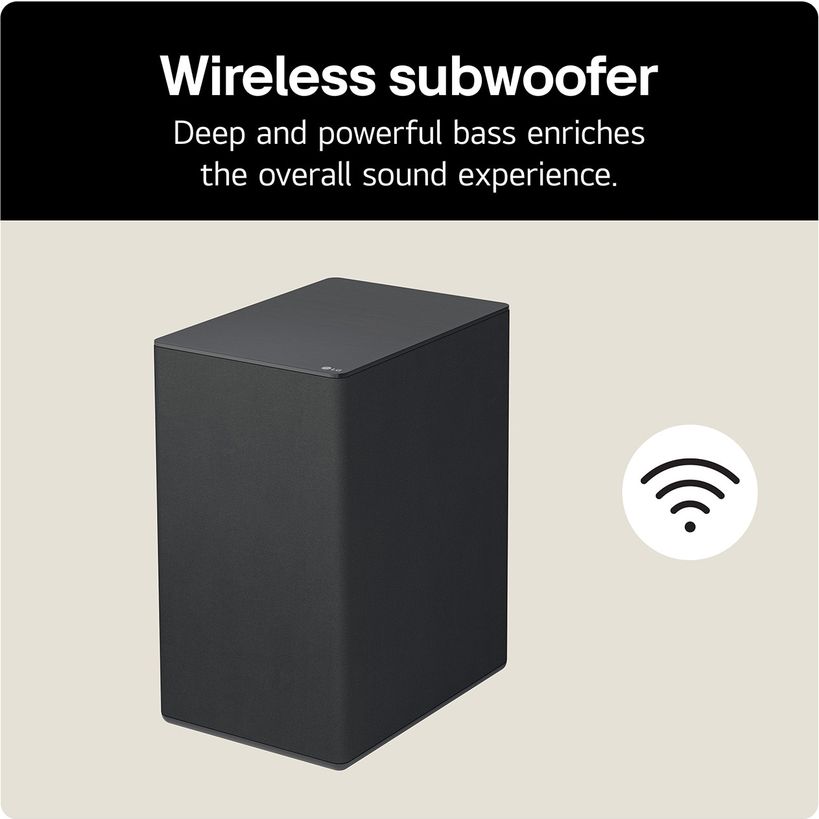

Position the soundbar centrally below or above your TV for best stereo imaging. The wireless subwoofer can be placed anywhere within range of the bar - against a side wall or in a corner will reinforce bass output. Allow at least 10cm clearance around the subwoofer vents.

Connecting to your TV:

Use the included HDMI cable to connect the soundbar's HDMI eARC port to your TV's eARC-compatible HDMI port for the best audio quality. For LG OLED C2 or C3 TVs, the WOW Bracket can be fitted to replace the TV stand, securing the soundbar directly to the screen. WOWCAST allows a wireless audio link between the soundbar and compatible LG TVs once both are set up on the same network.

AI Room Calibration Pro:

Run AI Room Calibration Pro on first setup by following the on-screen prompts - the process takes under a minute and uses audible test tones to measure your room. Repeat the calibration if you move either the soundbar or subwoofer to a new position. The soundbar stores the calibration profile and applies it automatically on power-up.

Cleaning and care:

Wipe the soundbar cabinet with a dry or lightly dampened microfibre cloth. Do not use abrasive cleaners, solvents, or spray liquids directly onto the grille fabric. The subwoofer cabinet can be wiped clean with the same method - keep the port opening free of dust to maintain airflow.
