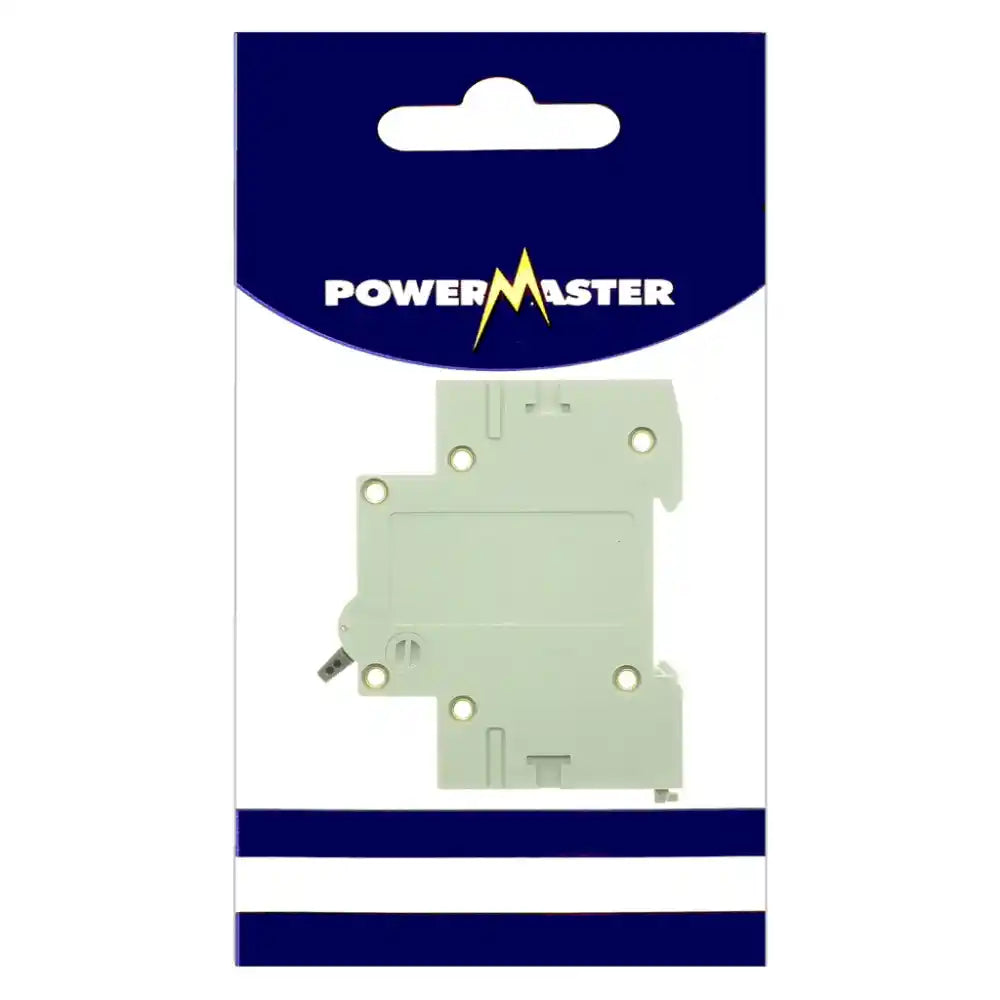

Powermaster 63amp MCB Switch | 1522-38

• 63A rating - suits high-load circuits and main incoming protection
• Trips automatically on overload or short circuit detection
• Rated 230/400V, 50Hz - standard Irish and EU supply compatible
• Bimetallic strip mechanism trips the switch on continuous overcurrent
• DIN rail mounting - fits standard consumer unit supply boards
• Part of the Powermaster 1522 MCB range across multiple amp ratings
• Intended for installation by a qualified electrician

Powermaster 63A Miniature Circuit Breaker for Consumer Units and Supply Boards

Automatic overload and short circuit protection:

The Powermaster 1522-38 MCB is rated at 63A and is designed to protect high-load circuits within a domestic or light commercial consumer unit. When a continuous overcurrent or short circuit is detected, the internal bimetallic strip heats and bends, tripping the switch and cutting power to the affected circuit. This prevents damage to wiring and connected equipment.

Suitable for high-load circuit applications:

At 63A, this breaker is suited to use as a main incoming switch or for large appliance circuit protection within a supply board. It operates at 230/400V and 50Hz, in line with the standard Irish and European domestic electrical supply. Installation follows standard DIN rail mounting practice for consumer unit components.

Part of the Powermaster MCB range:

The Powermaster 1522 series covers a range of amperage ratings, making it straightforward to select the correct breaker for each circuit within an installation. The 1522-38 is the 63A variant in this tiered line-up, which is widely stocked by Irish electrical and hardware retailers. This product is intended for installation by a qualified electrician in accordance with current Irish wiring regulations.

Shop the full DIY & Hardware range from Heavins.ie, serving customers across Ireland.

Key Features

Current Rating - 63A, suitable for high-load circuit protection.
Voltage Rating - 230/400V, 50Hz, compatible with standard Irish/EU supply.
Automatic Trip Mechanism - bimetallic strip detects overcurrent and trips the switch to cut power.
Short Circuit Protection - trips instantly on detection of a short circuit fault.
DIN Rail Mounting - fits standard consumer unit DIN rail for straightforward installation.
Consumer Unit Application - designed as an isolating component within a domestic or light commercial supply board.

Specifications

• Brand: Powermaster
• Model: 1522-38
• Current Rating: 63A
• Voltage: 230/400V
• Frequency: 50Hz
• Mounting: DIN Rail
• Warranty: 1 Year

What's Included in the Box

• 1 x Powermaster 63A Miniature Circuit Breaker (1522-38)
