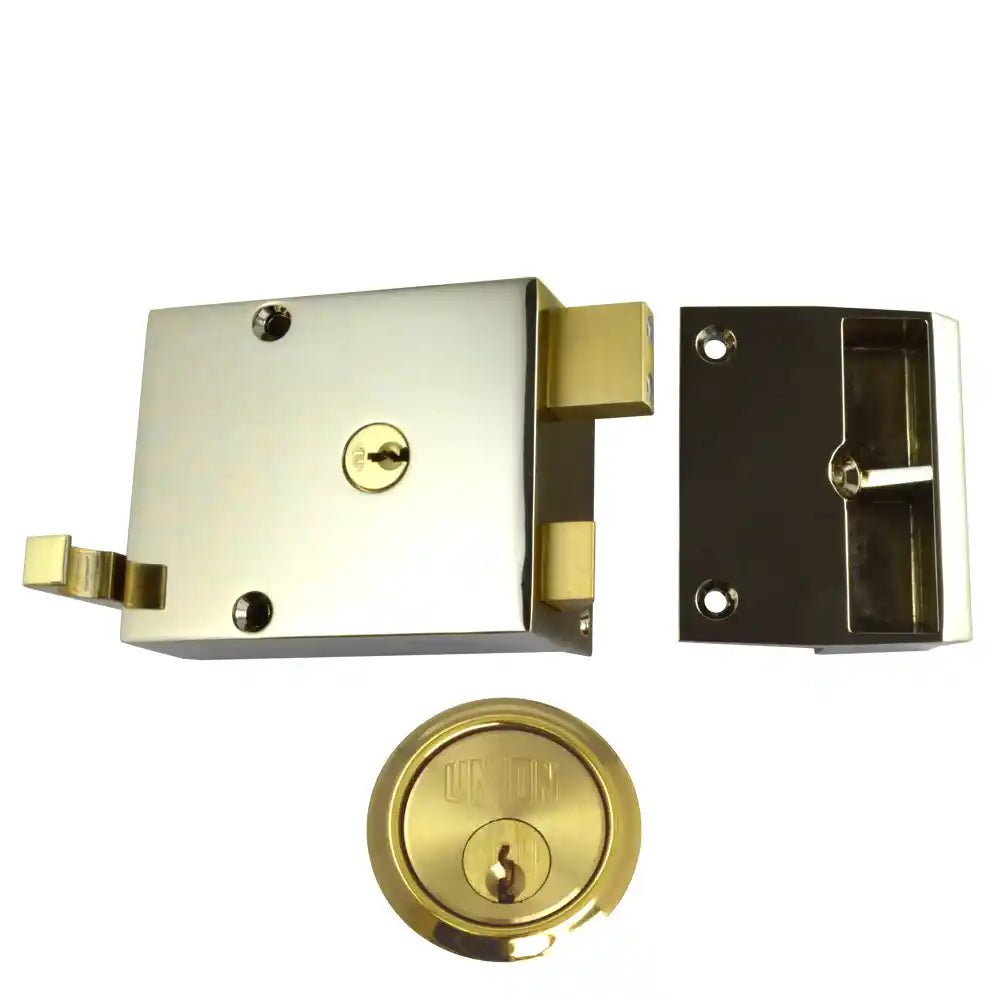

Union 1332 Drawback Rim Lock - Brass

• Union 1332 cylinder rim drawback lock with 60mm backset in brass
• Double-throw deadbolt extends to 20mm for additional security
• Drawback trigger handle retracts the latch from inside without a thumbturn
• Key operation from outside, drawback handle from inside
• 5 pin brass rim cylinder (outside) with 2 pin internal cylinder for deadlocking
• Suits timber doors 35-60mm thick, hinged left or right, opening inward
• Latch can be held in withdrawn position for glass panel and frequently used doors
• Supplied with rim cylinder, 3 keys, keep, and fitting instructions

Union 1332 Cylinder Rim Drawback Lock 60mm Backset with Double-Throw Deadbolt, Drawback Handle, and Brass Rim Cylinder

Double-throw deadbolt with drawback trigger handle for front doors:

The Union 1332 is a rim-mounted drawback lock that combines a sprung latch with a double-throw deadbolt for enhanced front door security. The first full turn of the key throws the deadbolt into the keep, and a second turn double throws the bolt, extending the projection to 20mm for greater resistance against forced entry. The drawback trigger handle on the inside retracts the latch by pulling it back like a trigger, rather than using a standard rotating thumbturn. This direct-action mechanism is practical for glass panel doors and situations where a projecting thumbturn is not desired.

Key operation outside, drawback handle inside, with hold-back function:

The key operates both the latch and the deadbolt from outside the door. The drawback handle retracts the latch from inside. The latch can be held in the withdrawn position by rotating the handle anti-clockwise (with the deadbolt withdrawn), allowing the door to be opened and closed freely without the latch engaging. This is useful for frequently used doors during the day, service doors, and doors in commercial settings. The deadbolt can be locked or unlocked by key from either side using the 5 pin external cylinder and 2 pin internal cylinder.

Brass finish with 60mm backset for timber doors 35-60mm thick:

The electro brass case, keep, and cylinder provide a coordinated brass appearance that matches brass door furniture. The 60mm backset and 92mm case width suit standard front doors. The lock is non-handed, fitting doors hinged on the left or right that open inward. Suitable for timber doors between 35mm and 60mm thick. Also suitable for steel and composite doors with special fixings (not included). The Union 1332 is a direct alternative to the Chubb 4L69 (slight adjustments may be needed when replacing).

Shop tools and DIY products from Heavins.ie:

Door locks, nightlatches, and home security products. In stock with fast nationwide delivery across Ireland. Browse our full Tools & DIY range for complete home security solutions.

Specifications

• Brand: Union
• Model: 1332
• Type: Cylinder rim drawback lock
• Finish: Brass (electro brass case, polished brass cylinder)
• Backset: 60mm
• Case Width: 92mm
• Case Height: 76mm
• Bolt Length: 20mm (double thrown)
• Door Thickness: 35-60mm
• Operation: Key from outside, drawback handle from inside
• Deadbolt: Double throw (key from both sides)
• Latch Hold-Back: Yes (rotate handle anti-clockwise)
• Outside Cylinder: Brass, 5 pin tumbler (Union 1X10 section)
• Inside Cylinder: Brass, 2 pin tumbler
• Handle: Aluminium, finished to match case
• Handed: Non-handed (left or right hinged, inward opening only)
• Suitable For: Timber doors (steel/composite with special fixings)
• Alternative To: Chubb 4L69
• Keys Supplied: 3 (steel, nickel plated)
• EAN: 5011802000360
• Warranty: 1 Year

What's Included in the Box

• 1 x Union 1332 rim drawback lock (brass case)
• 1 x Brass rim cylinder (5 pin, outside)
• 1 x Internal cylinder (2 pin)
• 3 x Nickel plated keys
• 1 x Keep (strike, frame side)
• Fixing screws
• Fitting instructions
